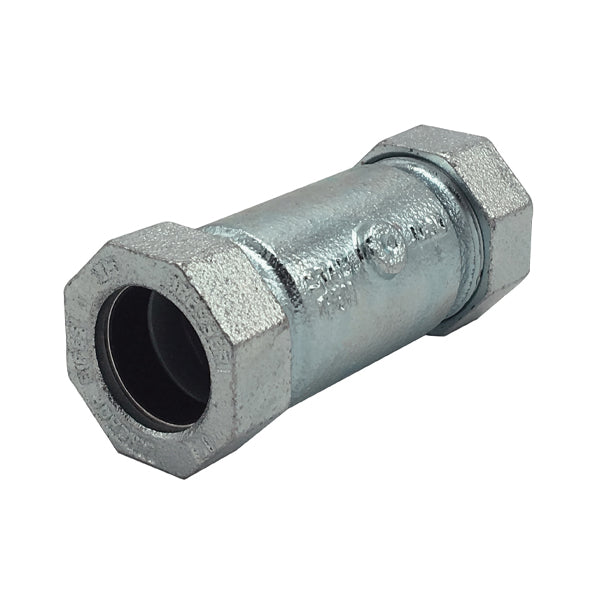

Wal-rich 0065-0035-003 Dresser Style 65 Galvanized Coupling Long 4 3/4 Inches

Product Description

The WAL-RICH 0065-0035-003 is a Dresser Style 65 galvanized coupling designed for long-length pipe joining applications in water, gas, and general utility systems. This coupling is built for trade professionals who need a reliable mechanical connection between plain-end pipe sections without welding or threading. It is commonly used by plumbers, pipefitters, and utility contractors working on municipal water lines, industrial piping, and commercial mechanical systems. The overall length of 4 3/4 inches gives this coupling extra engagement compared to standard-length versions, providing greater pull-out resistance and a more secure seal under pressure. The body is constructed from malleable iron, a material known for its strength, ductility, and resistance to cracking under stress. The electro-galvanized finish protects the iron body from rust and corrosion, extending service life in both above-ground and buried applications. Armored Grade 27 gaskets provide the sealing surface between the coupling and the pipe. These gaskets are engineered to compress evenly under bolt load, creating a leak-tight seal that holds up to 150 PSI maximum working pressure. The maximum temperature rating of 150 degrees F makes this coupling suitable for cold water, chilled water, and ambient-temperature gas service. Dresser-style couplings are a go-to solution when connecting pipes of the same outside diameter that cannot be rotated or when working in tight quarters where threaded fittings are impractical. The Style 65 design is a long-standing industry standard for plain-end pipe coupling, recognized by plumbing and utility professionals across North America. This coupling ships ready to install with all necessary hardware included.

• Malleable iron body with electro-galvanized finish for corrosion resistance
• Armored Grade 27 gaskets rated to 150 PSI and 150 degrees F maximum
• 4 3/4 inches overall length for extended pipe engagement and pull-out resistance

Product Highlights

The WAL-RICH 0065-0035-003 Dresser Style 65 long coupling delivers a dependable mechanical pipe joint using malleable iron construction and high-grade gaskets, suited for pressure piping applications up to 150 PSI.

Product Information

Standard Information

• Brand: WAL-RICH
• Manufacturer Part Number: 0065-0035-003

Technical Specifications

• Overall Length: 4 3/4 inches
• Body Material: Malleable Iron
• Finish: Electro-galvanized
• Gasket Type: Armored Grade 27
• Maximum Pressure: 150 PSI
• Maximum Temperature: 150 degrees F
• Weight: 3.37 pounds
