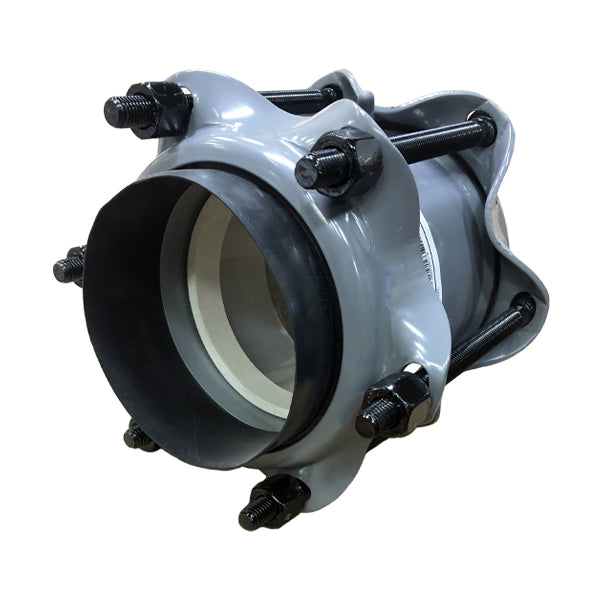

Wal-rich 0039-9027-215 Dresser Style 39 Insulated Pipe Coupling

Product Description

The WAL-RICH 0039-9027-215 is a Dresser Style 39 insulated pipe coupling designed for demanding underground and aboveground pipeline applications. This coupling provides a reliable mechanical connection between pipe sections while offering full electrical isolation to prevent galvanic corrosion and stray current damage. It is a go-to solution for water utility contractors, municipal plumbers, and pipeline maintenance crews working on steel, iron, and ductile iron pipe systems.

The 0039-9027-215 features a 7 inches overall length, giving it substantial grip on both pipe ends for a secure, leak-resistant seal. The body is constructed from carbon steel and finished with a fusion-bonded epoxy coating, which protects against corrosion in buried or wet environments. This coating is commonly specified on couplings used in potable water, natural gas distribution, and industrial process piping where long service life is critical.

The coupling includes an armored Grade 27 gasket, an insulating boot, and a spacer. The insulating boot and spacer work together to electrically isolate the two pipe sections, protecting cathodic protection systems and preventing electrolytic corrosion at the joint. The armored gasket delivers consistent compression and sealing performance across a wide range of pipe diameters and surface conditions.

Rated to 900 PSI maximum working pressure and 212 degrees F maximum temperature, this coupling handles high-pressure and elevated-temperature service conditions with confidence. It is well suited for water mains, gas lines, and industrial piping where mechanical joint integrity and corrosion protection are both required. Trade professionals can install this coupling without welding, making it practical for field repairs and new construction alike.

• 7 inches overall length with carbon steel body and fusion-bonded epoxy corrosion protection
• Includes armored Grade 27 gasket, insulating boot, and spacer for full electrical isolation
• Rated to 900 PSI maximum pressure and 212 degrees F maximum temperature

Product Highlights

The WAL-RICH 0039-9027-215 Dresser Style 39 insulated coupling combines high-pressure mechanical joining with built-in electrical isolation, making it a reliable choice for corrosion-sensitive pipeline systems in water, gas, and industrial applications.

Product Information

Standard Information

• Brand: WAL-RICH
• Manufacturer Part Number: 0039-9027-215

Technical Specifications

• Overall Length: 7 inches
• Body Material: Carbon Steel
• Coating: Fusion-bonded Epoxy
• Maximum Working Pressure: 900 PSI
• Maximum Temperature: 212 degrees F
• Includes: Sleeve, Armored Grade 27 Gasket, Insulating Boot, Spacer
• Weight: 132 pounds
