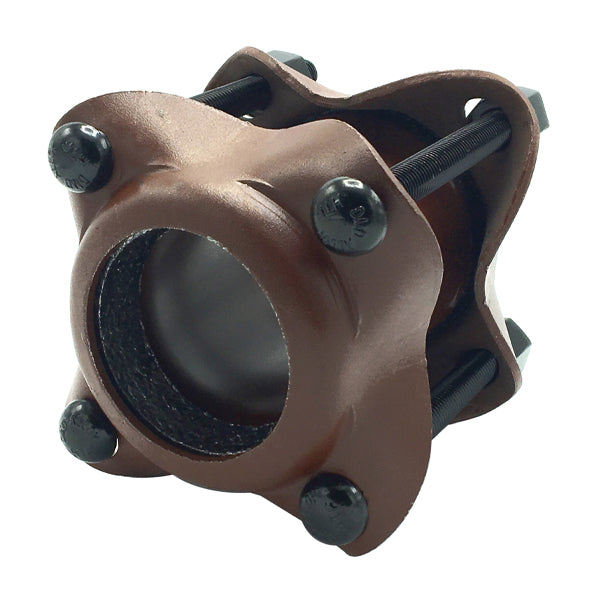

Wal-rich 0038-9051-345 Dresser Style 38 Coupling with Carded Glass Gaskets 5 Inches

Product Description

The WAL-RICH 0038-9051-345 is a Dresser Style 38 pipe coupling designed for demanding industrial and mechanical piping systems. This coupling measures 5 inches in overall length and is built from carbon steel with a red shop coat finish, giving it solid corrosion resistance during storage and installation. It includes carded glass high-temperature gaskets that allow it to handle temperatures up to 1200 degrees F and pressures up to 50 PSI, making it a reliable choice for high-heat piping environments. The unit weighs 24 pounds, reflecting the heavy-duty carbon steel construction that trade professionals trust for long-term performance in harsh conditions. Dresser-style couplings like this one are commonly used by pipefitters, mechanical contractors, and industrial maintenance crews to join plain-end pipe sections without threading or welding. The Style 38 design is a well-established standard in the pipe coupling industry, widely used in steam lines, hot water systems, gas distribution, and other high-temperature piping applications. The carded glass gaskets are specifically engineered to maintain a tight, leak-resistant seal even when exposed to extreme heat cycling, which is critical in industrial process piping and steam distribution systems. This coupling is compatible with standard pipe outside diameters and installs using bolted middle rings and follower flanges for a secure mechanical connection. HVAC technicians, plumbers, and industrial pipefitters working on high-temperature systems will find this coupling well-suited for repair, replacement, or new installation work. The red shop coat provides a base-level protective coating during transit and storage, though field painting or additional coating may be applied after installation based on project specifications.

• Carbon steel construction with red shop coat finish for durability and corrosion resistance during handling and storage
• Carded glass high-temperature gaskets rated up to 1200 degrees F for reliable sealing in extreme heat applications
• Rated to 50 PSI maximum working pressure, suitable for steam, gas, and hot water piping systems

Product Highlights

The WAL-RICH 0038-9051-345 Dresser Style 38 Coupling delivers heavy-duty, high-temperature pipe joining capability with glass gaskets and carbon steel construction built for industrial-grade piping systems.

Product Information

Standard Information

• Brand: WAL-RICH
• Manufacturer Part Number: 0038-9051-345

Technical Specifications

• Overall Length: 5 inches
• Gasket Type: Carded Glass High-Temperature Gaskets
• Body Material: Carbon Steel
• Finish: Red Shop Coat
• Maximum Pressure: 50 PSI
• Maximum Temperature: 1200 Degrees F
• Weight: 24 pounds
