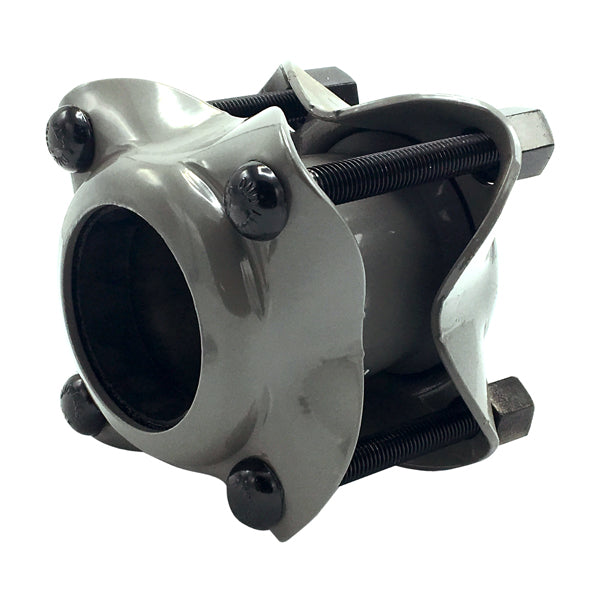

Wal-rich 0038-9036-013 Dresser Style 38 Pipe Coupling with Armored Gaskets

Product Description

The WAL-RICH 0038-9036-013 is a Dresser Style 38 pipe coupling designed for use in water, wastewater, and industrial piping systems. This coupling is built to connect plain-end pipe sections without threading or flanging, making it a practical choice for maintenance crews, municipal utility workers, plumbers, and industrial pipefitters. The Style 38 design is one of the most widely recognized coupling configurations in the trade, and this unit delivers the durability and pressure performance that demanding field applications require. The coupling features Armored Grade 27 gaskets, which provide a reliable seal against leaks even under high-pressure and high-temperature conditions. The carbon steel body construction gives this coupling strong resistance to mechanical stress and physical impact in buried or above-ground installations. A fusion-bonded epoxy coating protects the steel from corrosion, extending service life in wet and corrosive environments. This coating is applied inside and outside the coupling, making it suitable for potable water service and wastewater lines where corrosion protection is critical. The overall length of the coupling is 5 inches, and the unit weighs 18.5 pounds, reflecting its heavy-duty construction. It is rated for a maximum working pressure of 931 PSI and a maximum temperature of 212 degrees F, making it compatible with a wide range of fluid types and system pressures. Trade professionals who work on municipal water mains, industrial process lines, or fire protection systems will find this coupling a dependable fit for restoring or extending existing pipelines. The Style 38 designation confirms compatibility with standard Dresser-type coupling components and installation tooling already common in the field.

• Armored Grade 27 gaskets provide leak-resistant sealing under demanding pressure and temperature conditions
• Carbon steel body with fusion-bonded epoxy coating offers strong corrosion resistance for buried and exposed installations
• Rated to 931 PSI maximum working pressure and 212 degrees F maximum temperature

Product Highlights

The WAL-RICH 0038-9036-013 Dresser Style 38 coupling combines heavy-duty carbon steel construction with armored gaskets and epoxy coating to deliver reliable, high-pressure pipe connections for water, wastewater, and industrial piping applications.

Product Information

Standard Information

• Brand: WAL-RICH
• Manufacturer Part Number: 0038-9036-013

Technical Specifications

• Weight: 18.5 pounds
• Overall Length: 5 inches
• Gasket Type: Armored Grade 27
• Body Material: Carbon Steel
• Coating: Fusion-bonded Epoxy
• Maximum Working Pressure: 931 PSI
• Maximum Temperature: 212 degrees F
