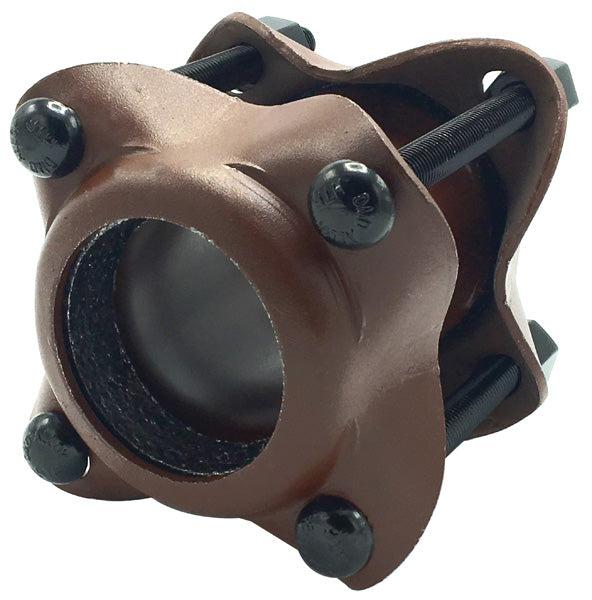

Wal-rich 0038-0022-345 Dresser Style 38 Coupling 2.5 Inches with Carded Glass Gaskets

Product Description

The WAL-RICH 0038-0022-345 is a Dresser Style 38 pipe coupling designed for 2.5-inch pipe connections in demanding industrial and commercial applications. This coupling is built from carbon steel and finished with a red shop coat for corrosion resistance during storage and installation. It ships with carded glass high-temperature gaskets, making it ready to install right out of the box. The overall length of the coupling is 5 inches, giving it a solid grip on both pipe ends to create a secure, leak-resistant joint. This type of Dresser-style coupling is widely used in gas distribution, steam lines, waterworks, and industrial piping systems where a reliable mechanical joint is required without welding or threading. HVAC technicians, plumbers, pipefitters, and industrial maintenance crews rely on Style 38 couplings to connect plain-end pipe quickly and securely in the field. The carbon steel body provides the structural strength needed to handle high-pressure and high-temperature service conditions. The carded glass gaskets included with this coupling are rated for temperatures up to 1200 degrees F, making this fitting suitable for high-heat environments such as steam piping, boiler connections, and industrial process lines. The maximum working pressure for this coupling is 50 PSI. Whether you are repairing an existing line or building new infrastructure, this coupling delivers a dependable mechanical connection that meets the needs of professional tradespeople. At 19 pounds, this is a heavy-duty fitting built to last in tough service conditions. It is compatible with standard plain-end steel pipe in the 2.5-inch nominal pipe size range and is commonly used alongside other Dresser-style fittings in the same system.

• Carbon steel body with red shop coat finish for durability and corrosion protection during storage and handling
• Includes carded glass high-temperature gaskets rated up to 1200 degrees F for use in steam, boiler, and high-heat piping systems
• Rated for 50 PSI maximum working pressure with a 5-inch overall coupling length for a secure mechanical pipe joint

Product Highlights

The WAL-RICH 0038-0022-345 Dresser Style 38 Coupling provides a heavy-duty, high-temperature mechanical pipe connection for 2.5-inch plain-end pipe, complete with carded glass gaskets and ready for demanding industrial and commercial installations.

Product Information

Standard Information

• Brand: WAL-RICH
• Manufacturer Part Number: 0038-0022-345

Technical Specifications

• Pipe Size: 2.5 inches
• Overall Length: 5 inches
• Body Material: Carbon Steel
• Finish: Red Shop Coat
• Gasket Type: Carded Glass High-Temperature
• Maximum Working Pressure: 50 PSI
• Maximum Temperature Rating: 1200 Degrees F
• Weight: 19 pounds
