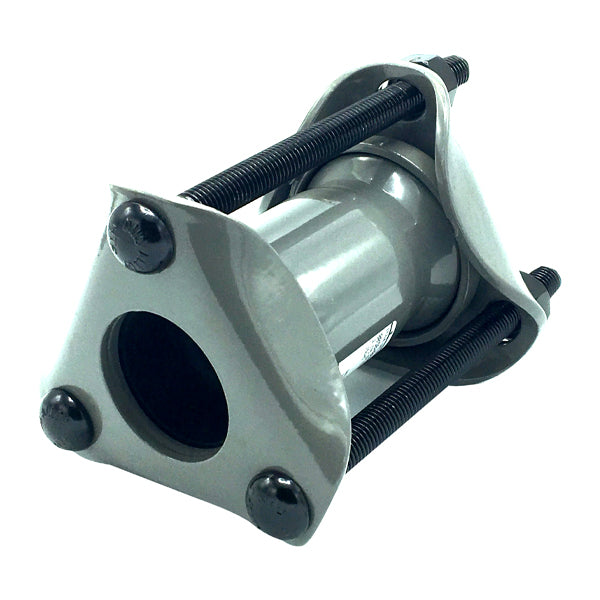

Wal-rich 0038-0022-011 Dresser Style 38 Coupling with Plain Gaskets 2.5 Inches

Product Description

The WAL-RICH 0038-0022-011 is a Dresser Style 38 pipe coupling designed for demanding water and gas distribution applications. This coupling fits 2.5-inch pipe and provides a reliable, pressure-rated mechanical joint without the need for welding or threading. It is a go-to solution for plumbers, pipeline contractors, and utility crews working on water mains, gas lines, and industrial piping systems.

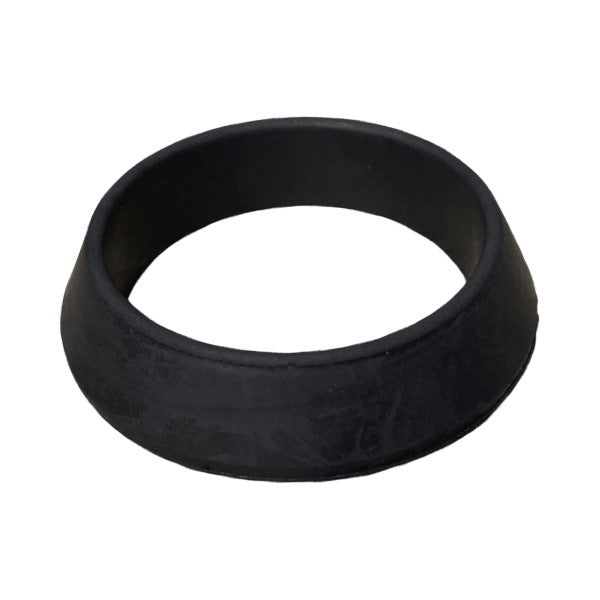

The coupling uses a plain gasket design with Grade 27 gaskets, which create a tight, flexible seal around the pipe. This gasket type accommodates minor pipe misalignment and end movement, making it well suited for repair work and new installations alike. The body is constructed from carbon steel, giving it the structural strength needed for high-pressure service. A fusion-bonded epoxy coating is applied inside and out, protecting the steel from corrosion in buried, submerged, or exposed environments.

This WAL-RICH coupling is rated for pressures up to 1326 PSI and handles temperatures up to 212 degrees F, making it compatible with a wide range of water and fluid transfer applications. At 5 inches overall length, it provides a stable sleeve that distributes load evenly across the joint. The unit weighs 19 pounds, reflecting its heavy-duty carbon steel construction.

Trade professionals trust Dresser-style couplings for field repairs and planned connections on steel, cast iron, ductile iron, and other pipe materials. The Style 38 design is a recognized standard in waterworks and gas distribution, and the WAL-RICH 0038-0022-011 meets those specifications with precision manufacturing and durable materials.

• Carbon steel body with fusion-bonded epoxy coating for corrosion resistance in buried and exposed service
• Plain Grade 27 gaskets provide a flexible, pressure-tight seal suitable for repair and new construction
• Rated to 1326 PSI max pressure and 212 degrees F max temperature for demanding fluid and gas applications

Product Highlights

The WAL-RICH 0038-0022-011 Dresser Style 38 Coupling delivers a pressure-rated, corrosion-resistant mechanical joint for 2.5-inch pipe systems. It is built for waterworks and gas distribution professionals who need a dependable, field-ready coupling.

Product Information

Standard Information

• Brand: WAL-RICH
• Manufacturer Part Number: 0038-0022-011

Technical Specifications

• Pipe Size: 2.5 inches
• Overall Length: 5 inches
• Body Material: Carbon Steel
• Coating: Fusion-bonded Epoxy
• Gasket Type: Plain Grade 27 Gaskets
• Max Pressure: 1326 PSI
• Max Temperature: 212 Degrees F
• Weight: 19 pounds
