Wago 887-954 2773 Series Mini L-Boxx Splicing Push-In Connector Set 380 Pc Kit

Product Description

Wago 887-954 is a 2773 series Mini L-Boxx splicing connector set containing compact pushwire (push-in) connectors for electrical wire splicing. The kit includes 120 two-conductor, 80 three-conductor, 60 four-conductor, 50 five-conductor, 40 six-conductor and 30 eight-conductor connectors (380 pieces total). It accepts 20-12 AWG solid and 18-12 AWG stranded conductors and provides tool-free push-in termination for jobsite and panel splicing.

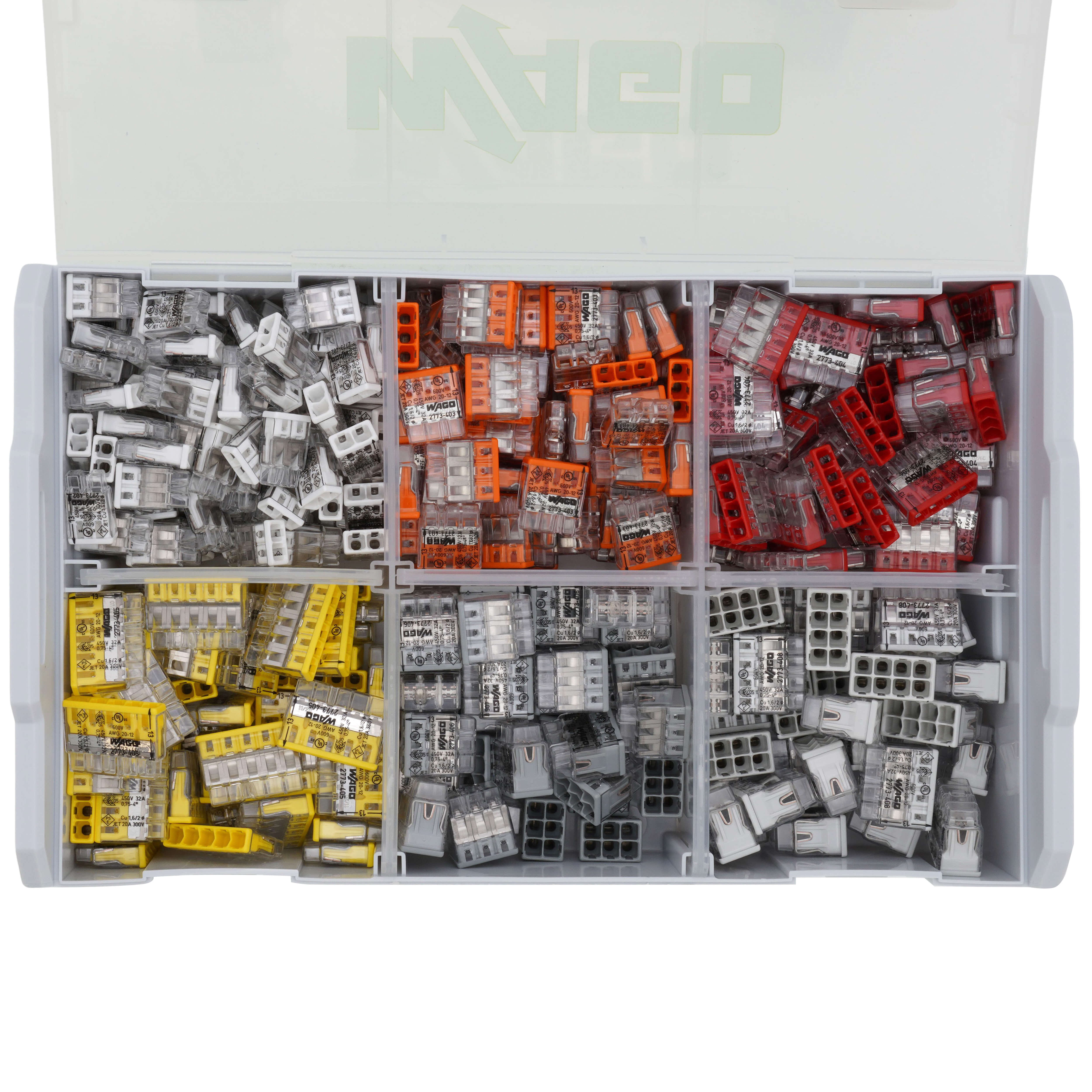

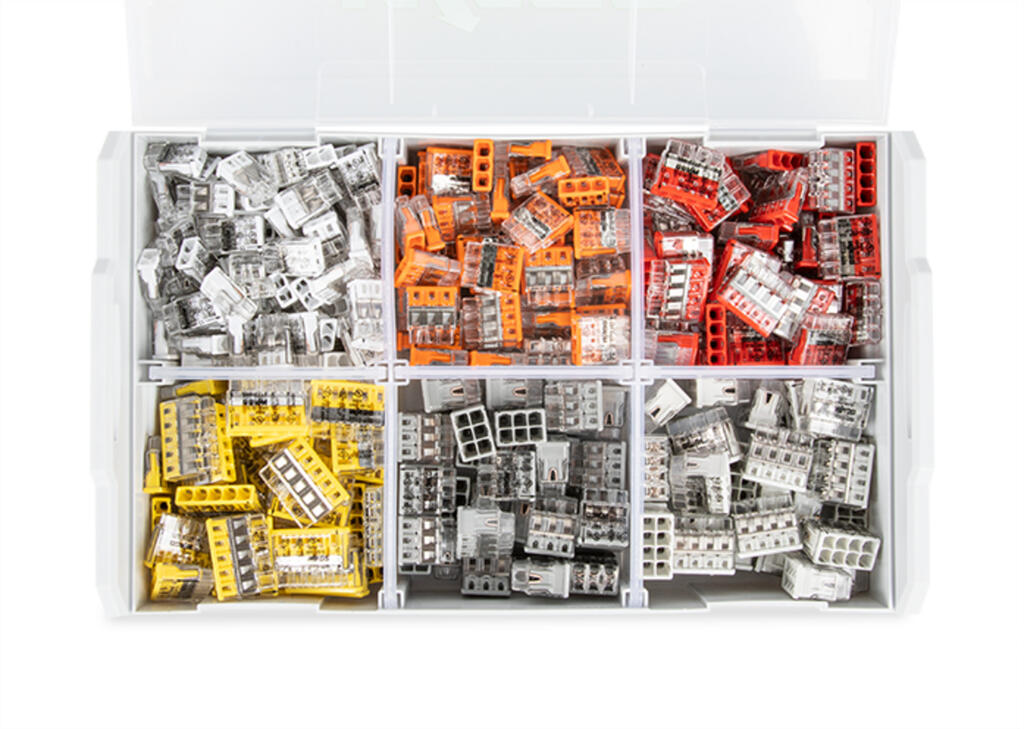

• Includes 120 x 2-conductor, 80 x 3-conductor, 60 x 4-conductor, 50 x 5-conductor, 40 x 6-conductor, 30 x 8-conductor connectors (380 pieces total)
• Accepts 20-12 AWG solid and 18-12 AWG stranded conductors; push-in (pushwire) tool-free termination

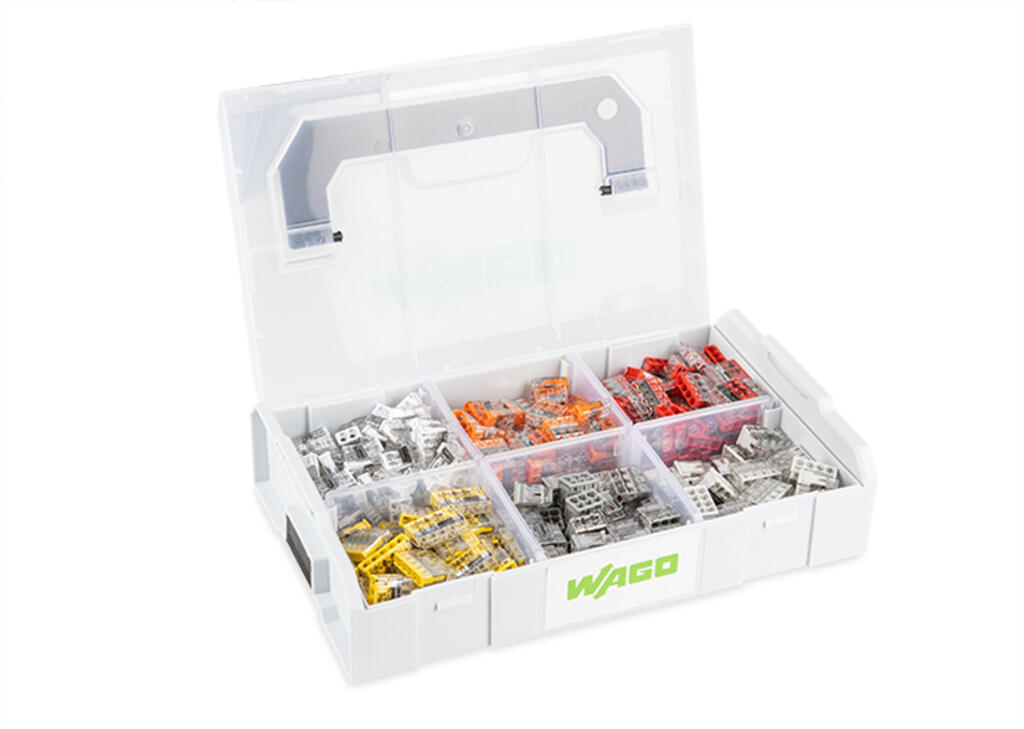

• Packaged in a Mini L-Boxx case; compact connectors for jobsite and panel splicing applications

Product Highlights

2773 series push-in splicing kit with 380 compact connectors covering 2–8 conductor counts; accepts 20–12 AWG solid and 18–12 AWG stranded; supplied in a Mini L-Boxx case.

Product Information

Standard Information

• Brand: WAGO
• Manufacturer Part Number: 887-954
• Country of Origin: USA

Technical Specifications

• Brand: Wago
• Manufacturer Part Number: 887-954
• Series: 2773 Series
• Product Type: Splicing connector kit
• Connector Type: Compact pushwire (push-in) splicing connector
• Contents: 120 x 2-conductor; 80 x 3-conductor; 60 x 4-conductor; 50 x 5-conductor; 40 x 6-conductor; 30 x 8-conductor
• Total Pieces: 380
• Conductor Counts: 2, 3, 4, 5, 6, 8
• AWG Range: 20-12 AWG solid; 18-12 AWG stranded
• Compatible Wire Size (mm^2): 0.75-4 mm^2
• Termination Type: Push-in (pushwire, tool-free)
• Housing Material: Polycarbonate (PC)
• Contact Material: Copper
• Dimensions: 10.236 in x 6.102 in x 2.48 in
• Weight: 2.219 lb
• Packaging: Mini L-Boxx case
• Rated Voltage: 450 V
• Maximum Temperature: 221 F
• RoHS Compliance: RoHS3 compliant
• Country of Origin: Germany
