Product Description

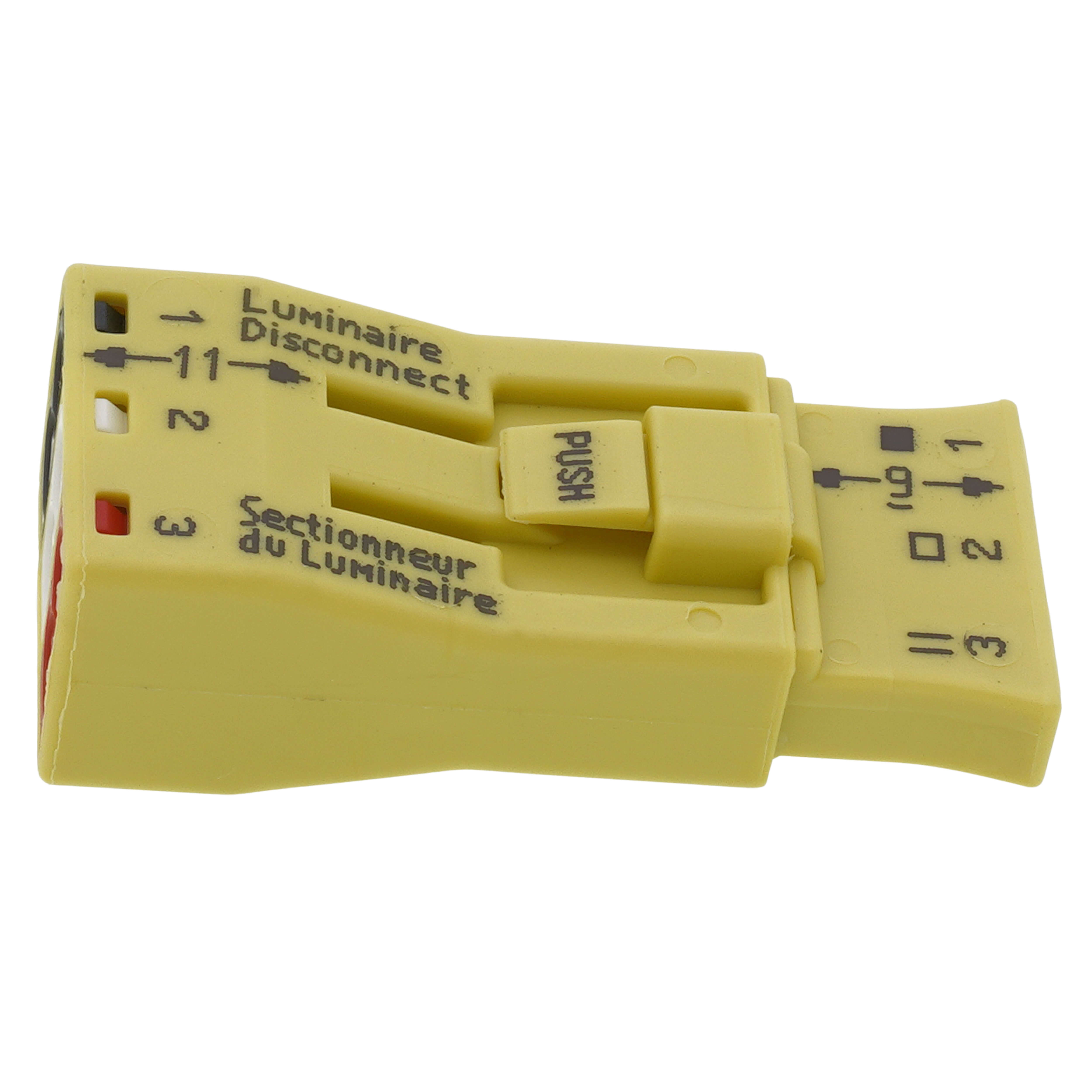

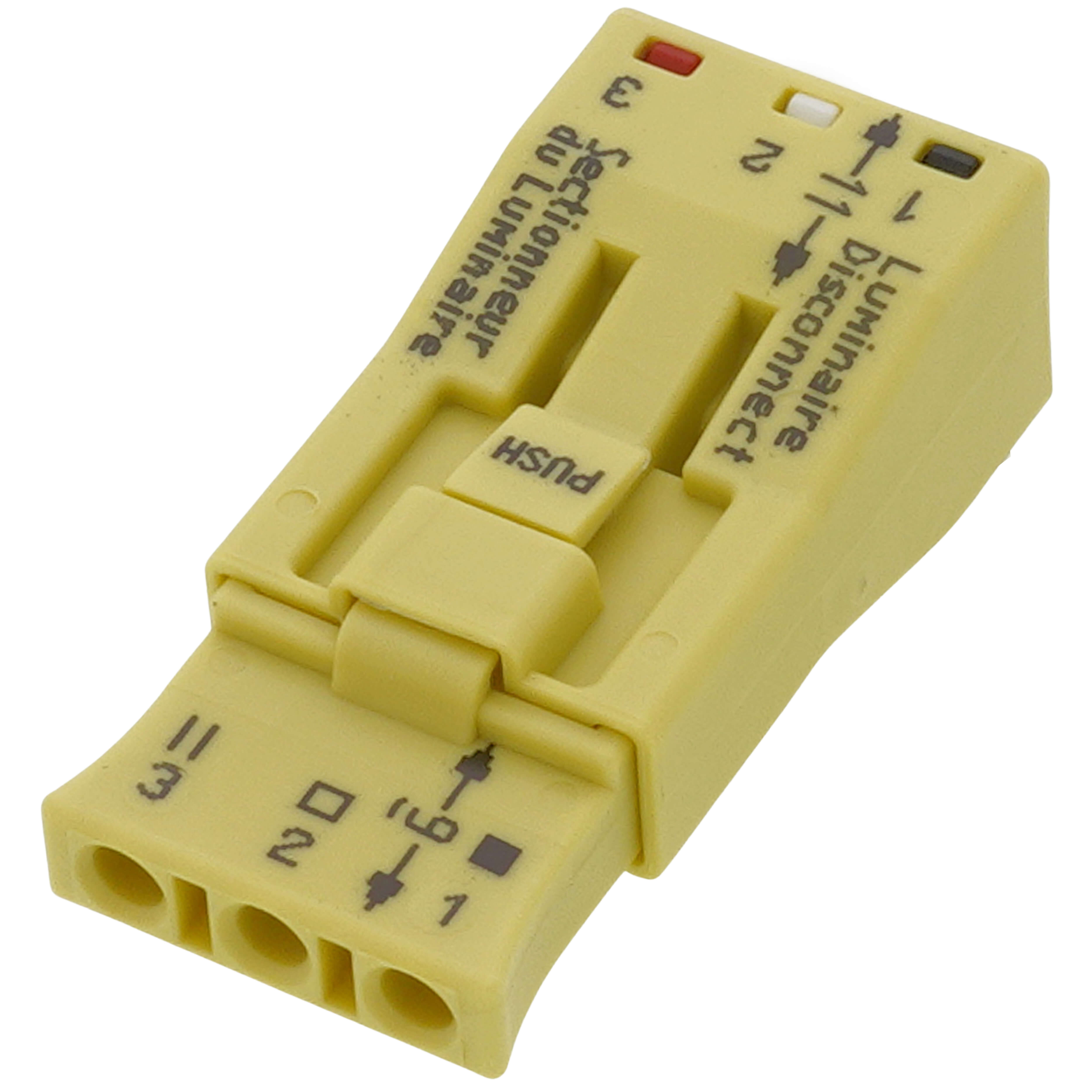

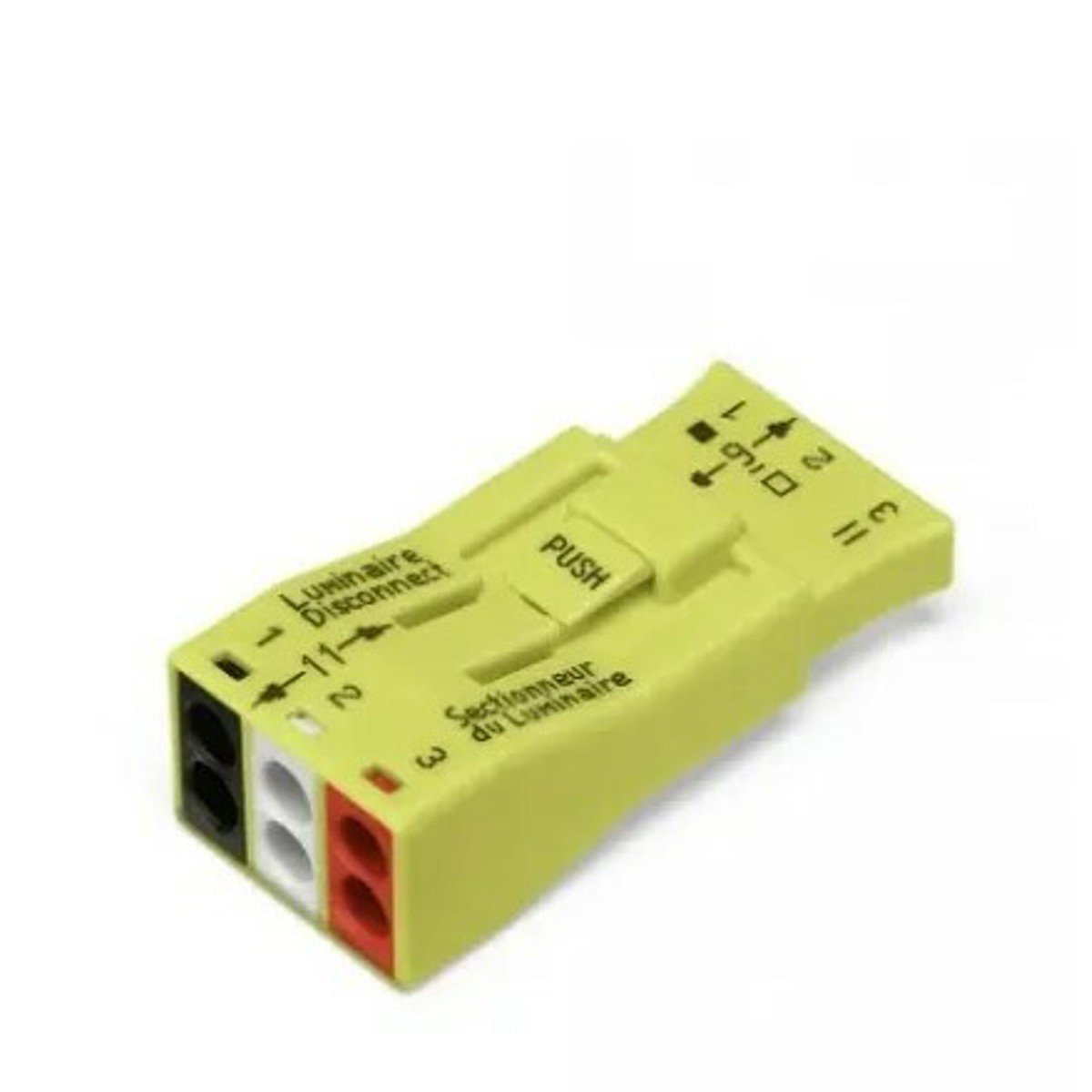

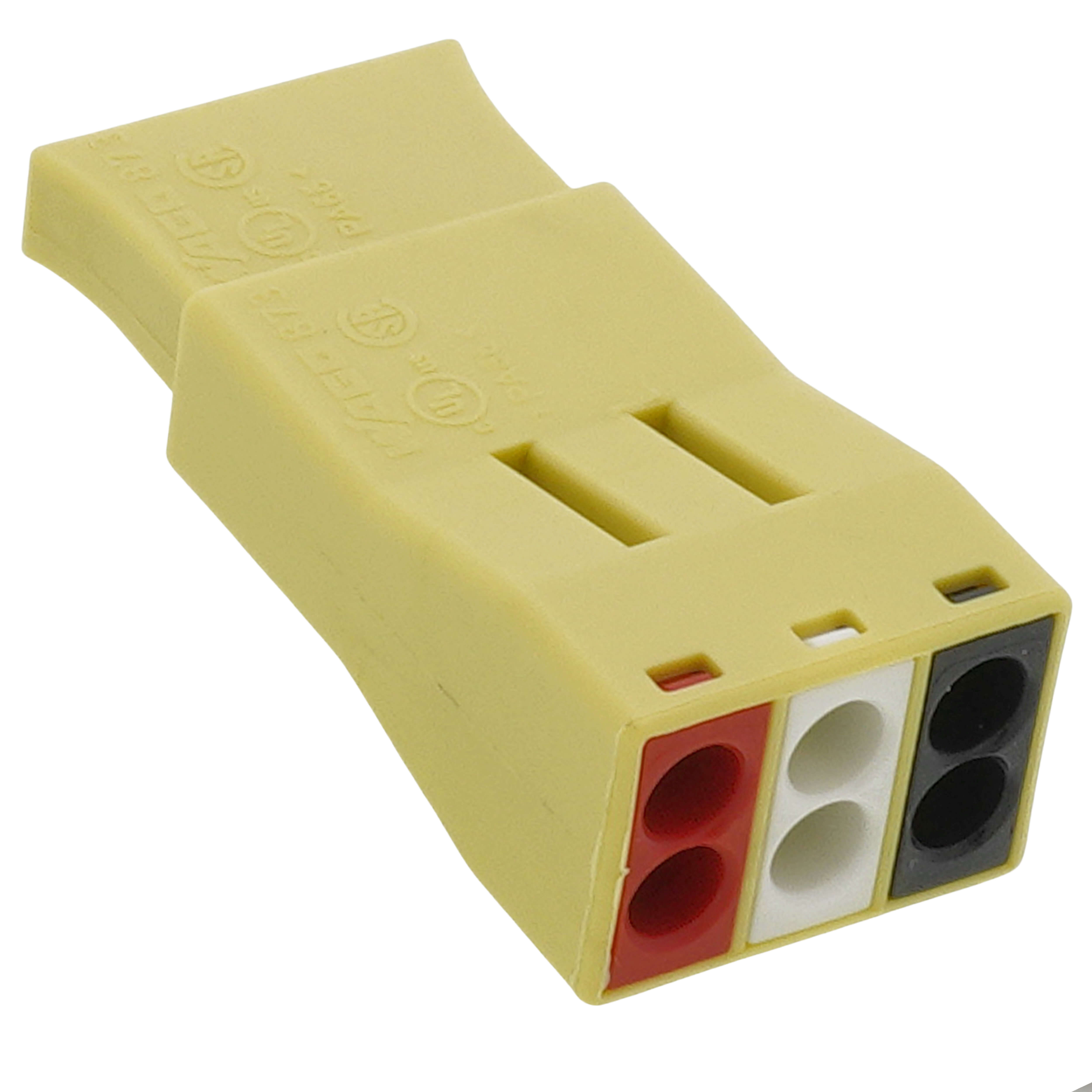

The WAGO 873-903/K194-4045 is a Pushwire splicing connector for luminaire disconnects. This 3-pole connector features an exclusive dual port design, eliminating the need for additional splicing connectors when wiring multiple luminaries. It minimizes component cost and labor. The integrated locking latch provides automatic locking with mating of connectors and simple push-down disengagement.
- Exclusive dual port design eliminates the need for additional splicing connectors
- Integrated locking latch provides automatic locking with mating of connectors
- Copper current bar and stainless steel spring combine to provide optimal contact pressure
Product Highlights
This WAGO Pushwire connector is touch-proof in the unmated position and provides 100% protection against mis-mating.
Product Information
Standard Information
-
Brand: WAGO
-
Manufacturer Part Number: 873-903/K194-4045
-
Country of Origin: China
Technical Specifications
-
Catalog Number: 873-903/K194-4045
-
Manufacturer: WAGO
-
Brand: WAGO
-
Country of Origin: China
-
Made in USA: No
-
RoHS Indicator: Yes
-
GTIN: 04045454699369
-
Item Type: PUSHWIRE® splicing connector For Luminaire Disconnect
-
Voltage Rating: 400 V
-
AWG: 16-12
-
Poles: 3
-
Amperage: 6
-
Material: Copper
-
Product Type: Disconnect
-
Part Number: 873-903/K194-4045, 51200768
-
Certificate: CSA US, cUL/UL Listed, RoHS Compliant
-
Maximum Amperage: 6 Amp
-
Maximum Voltage: 400V
-
UNSPSC: 39121410
