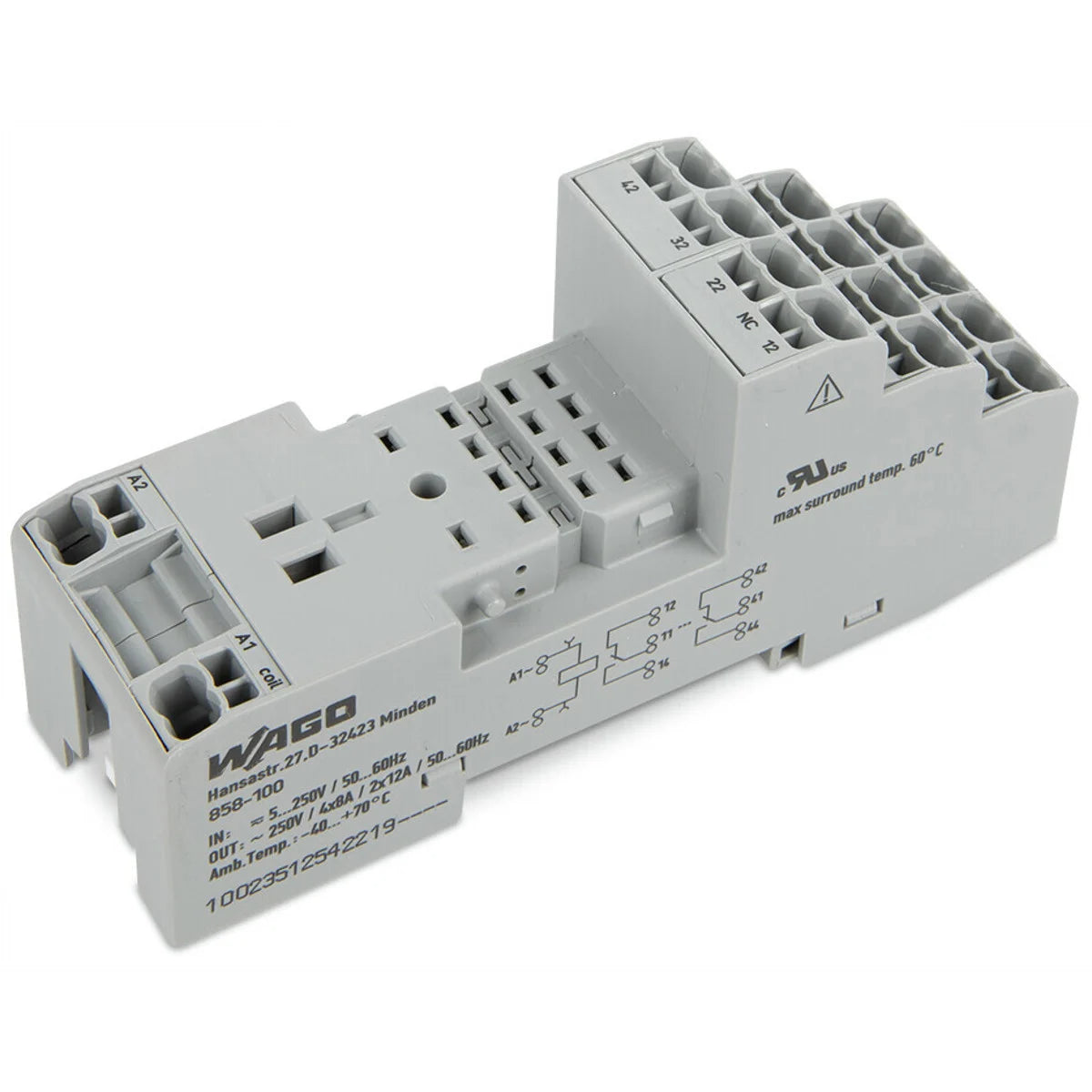

WAGO 858-100 Rly. Base / Socket Module with Lever - Control Voltage 250Vac/250Vdc - Rated Current 12A - Din Rail Mounting

Product Description

The WAGO 858-100 is a relay base or socket module designed for control voltage applications up to 250Vac and 250Vdc. It is rated for a continuous current of twelve amps and features a push-in cage clamp connection model for easy wiring. This module mounts on a DIN rail with a width of thirty-one millimeters and has an IP20 rating, making it suitable for a variety of industrial settings.

• Control voltage suitability up to 250Vac and 250Vdc
• Rated for a continuous current of twelve amps
• Easy installation on DIN rails with push-in cage clamp connections

Product Highlights

The WAGO 858-100 relay socket is excellent for use in motor control and electrical relay systems. Its robust design ensures reliable performance in various automation tasks.

Product Information

Standard Information

• Catalog Number: 858-100
• Manufacturer: WAGO

Technical Specifications

• Rated Current: 12A continuous
• Control Voltage: 250Vac/250Vdc
• Mounting Type: DIN Rail
• Dimensions: H97mm x W31mm x D39mm
• Weight: 56.366 grams
• Conductor Range: 16-22 AWG
• Connection Type: Terminals (Cage-clamp)
• Insulation: Reinforced insulation
