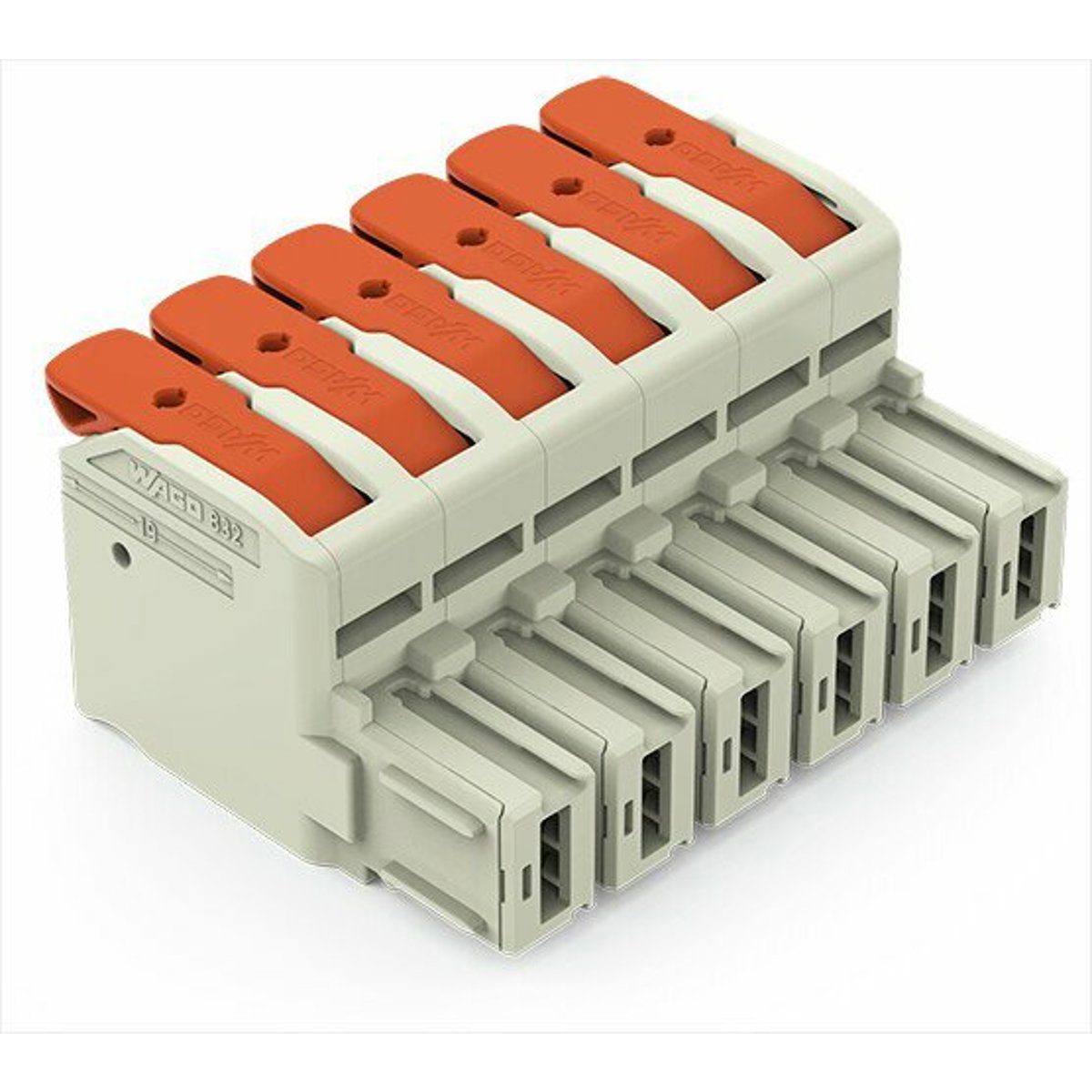

WAGO 832-1106 1-Conductor Female Connector Lever Push-in Cage Clamp 16 mm Pin Spacing 10.16 mm 6-Pole

Product Description

The WAGO 832-1106 is a 1-conductor female connector designed for efficient and secure connections in various electrical applications. This connector features a lever mechanism for easy insertion and removal. It is equipped with a push-in cage clamp that accommodates a conductor range of 4 to 18 AWG and offers a pin spacing of 10.16 mm. The silver-plated contacts ensure reliable conductivity and the connector is 100% protected against mismating, enhancing safety during installation.

• Current rating of 76 A provides robust performance.
• Made from durable polybutylene terephthalate (PBT).
• Compact dimensions measuring approximately 2.451 inches in width and 1.961 inches in depth.

Product Highlights

This connector is ideal for use in safety-critical environments where reliable electrical connections are essential.

Product Information

Standard Information

• Catalog Number: 832-1106
• Manufacturer: WAGO

Technical Specifications

• Brand: WAGO
• Country of Origin: Germany
• Actuator: Lever
• Color: Light gray
• Conductor Range: 4-18 AWG
• Connection: Push-in Cage Clamp
• Current Rating: 76 A
• Material: Polybutylene Terephthalate (PBT)
• RoHS Indicator: Yes
• GTIN: 4055143736756
• Item Type: 1-Conductor Female Plug
• Width: 2.451 inches
• Height: 1.146 inches
• Depth: 1.961 inches
• Weight: 79.934 grams
• Voltage Rating: 1000 V
