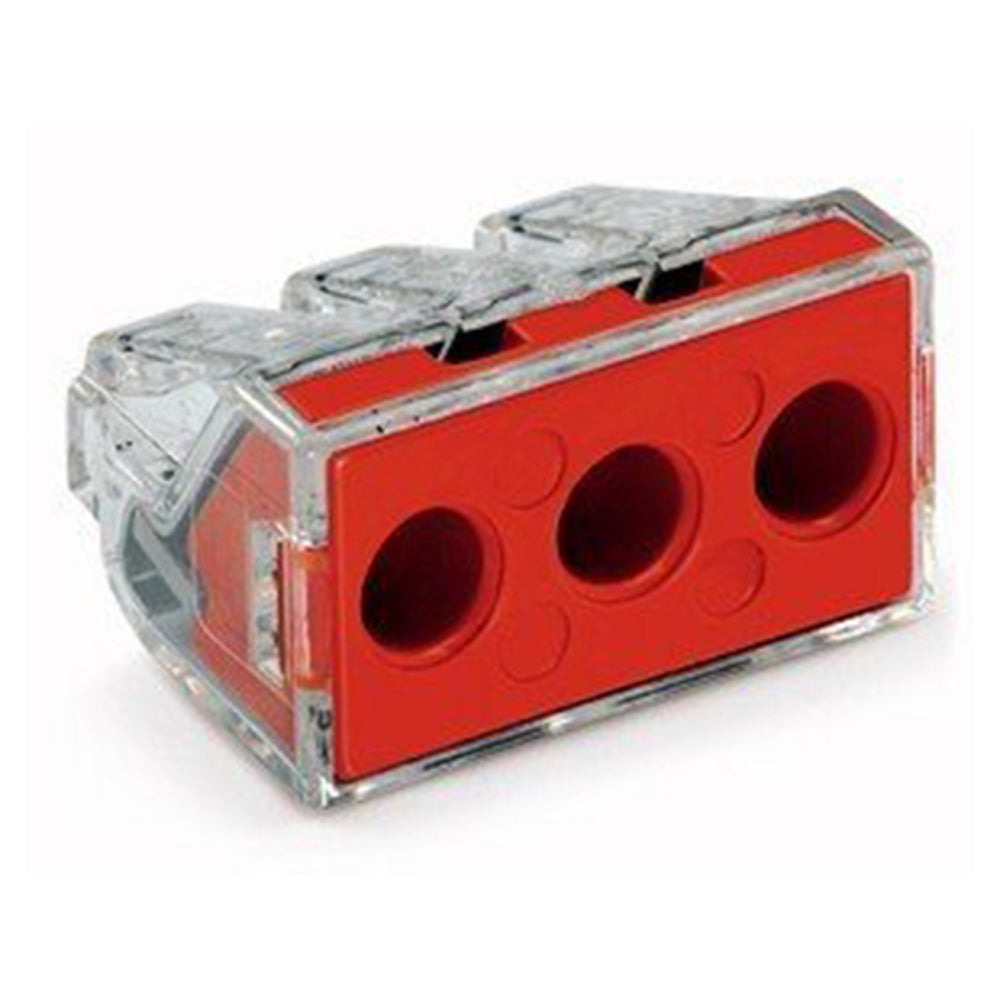

WAGO 773-173/K194-4045 Push Wire Connector for Solid and Stranded Conductors 50 PC BOX

Product Description

The WAGO Push Wire Connector, model 773-173/K194-4045, is designed for both solid and stranded conductors. This connector supports wire sizes ranging from fourteen to ten AWG. The push-in design ensures a secure and reliable connection, allowing for efficient electrical installations.

• Suitable for solid and stranded wires
• Rated for voltage up to 400 VAC
• Packaged in a box of fifty connectors

Product Highlights

The WAGO connector features a clear housing for visual confirmation of connections and enables quick installations with its push-in technology.

Product Information

Standard Information

• Manufacturer: WAGO Corporation
• UPC: 05082121515

Technical Specifications

• Wire Size: 14 to 10 AWG
• Voltage Rating: 400 VAC
• Current Rating: 41 A
• Conductor Count: 3
• Temperature Rating: 105 deg C
• Dimensions: 0.559 in H x 1.008 in W x 0.791 in D
• Color: Clear
• Application: For Junction Boxes
