Wago 773-164/K194-4045 Push-In Wire Connector 100pc Box

Product Description

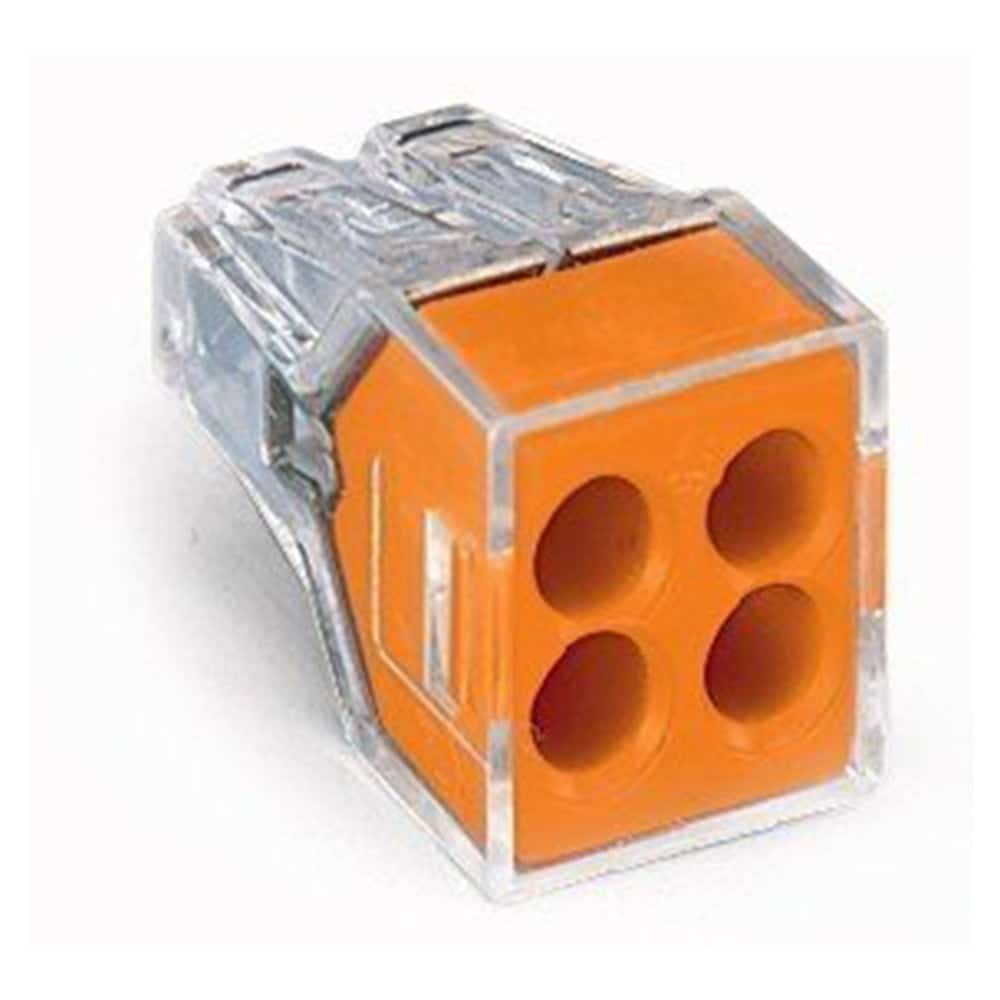

The WAGO 773-164/K194-4045 is a push wire connector designed for junction boxes, suitable for solid and stranded conductors up to 2.5 mm². This 4-conductor connector features a transparent housing and orange cover. It saves up to 50% in wiring time compared to twist-type connectors and allows visual inspection of conductor insertion.

• Saves up to 50% in wiring time
• Designed for use with junction boxes
• Transparent housing allows visual inspection of conductor insertion

Product Highlights

Efficient connector splices up to eight solid or stranded copper conductors. It is 20 Amp compatible.

Product Information

Standard Information

• Brand: WAGO
• Manufacturer Part Number: 773-164/K194-4045

Technical Specifications

• Connection points: 4
• Total number of potentials: 1
• Cover color: Orange
• Flammability class per UL94: V2
• Fire load: 0.057MJ
• Weight: 2.7g
• Conductors: 4
• Voltage: 400 V
• Solid Conductor: 18.. 12 AWG (reusable)
• Stranded conductor: 16.. 12 AWG
• Housing Color: Transparent
• For Use With: Junction Boxes
• Type: 4-Port Push-In Connector
• Type of Wiring: Side-entry Wiring
• Maximum Operating Temperature: 221°F
• Conductor Type: Solid/Stranded Copper Conductors
• Part Number: 773-164/K194-4045, 51204473
• Number of Port: 4-Port
• Product Dimensions: 0.52-in X 0.51-in X 0.77-in
• Wire Gauge: 12-18 AWG
• Series: WALL-NUTS® PUSH WIRE®
• Insulation: Fully Insulated
• Features: Releasable
• Terminal Type: Butt Splice, Closed End, Individual Openings
• Base Product Number: 773-164/K
• Number of Wire Entries: 4
• Brand: WAGO
• Amps: 20 Amps
• Pieces: 1
• Has nrtl listing certification: Y
