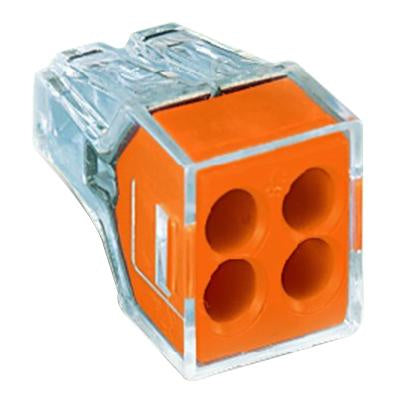

Wago 773-104/PW05-400 Push Wire Connector 16-12-AWG

Product Description

The Wago 773-104/PW05-400 push wire connector is designed for quick and secure electrical connections. This connector allows for easy splicing of multiple conductors and works best for junction boxes. It accommodates four conductors of size sixteen to twelve American Wire Gauge (AWG) stranded copper and eighteen to twelve AWG solid copper conductors.

• Compatible with various wire sizes
• Temperature rating of one hundred five degrees Celsius
• Voltage rating of four hundred volts and current rating of twenty-four amps

Product Highlights

This connector features a transparent polycarbonate housing for visible connections and push-in CAGE Clamp technology for secure connectivity. It includes a side-entry wiring design for maneuverability in tight spaces.

Product Information

Standard Information

• Brand: Wago
• Manufacturer Part Number: 773-104/PW05-400

Technical Specifications

• Dimensions: 0.512 inches wide x 0.768 inches deep x 0.516 inches high
• Color: Orange/Transparent
• Strip Length: 0.47 inches
• Number of Ports: 4
• Amperage Rating: 24 Amps
• Voltage Rating: 400 Volts
• Temperature Rating: 105 degrees Celsius
