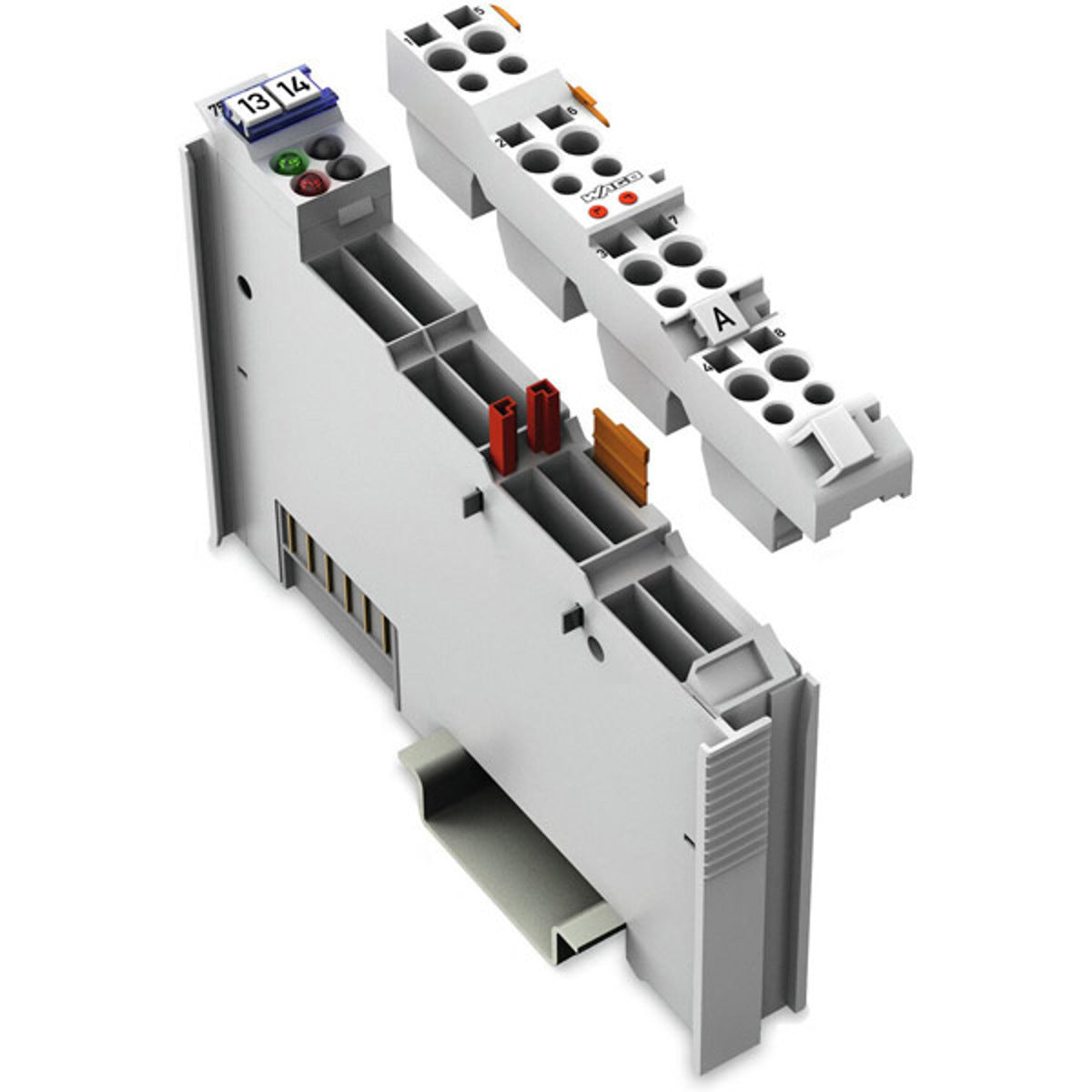

WAGO 753-555 Pluggable Analog Output Slice Module - 4AO; 4-20mA - 4I/O

Product Description

The WAGO 753-555 is a pluggable analog output slice module. This device is designed to provide four analog outputs with a current range of four to twenty milliamperes. It operates at a supply voltage of five volts, supplied by the system, and is suitable for DIN-35 rail mounting.

• Four analog outputs, 4-20mA, with 12-bits accuracy
• Fast conversion time of 10 milliseconds
• Push-in spring cage-clamp connections for easy installation

Product Highlights

This module is built for industrial applications where accurate signal transmission is critical.

Product Information

Standard Information

• Catalog Number: 753-555
• Manufacturer: WAGO

Technical Specifications

• Power Supply: 5V DC (supplied by system)
• Operating Temperature Range: 0°C to +55°C
• Connection Type: Terminals (Cage-clamp)
• Conductor Range: 14-28 AWG
• Mounting Type: DIN Rail
• Indicator: LED for function and error status
• Dimensions: Height 3.937 inches, Width 0.472 inches, Depth 2.748 inches
• Weight: 44 grams
• RoHS Compliant: Yes
• Country of Origin: Germany
