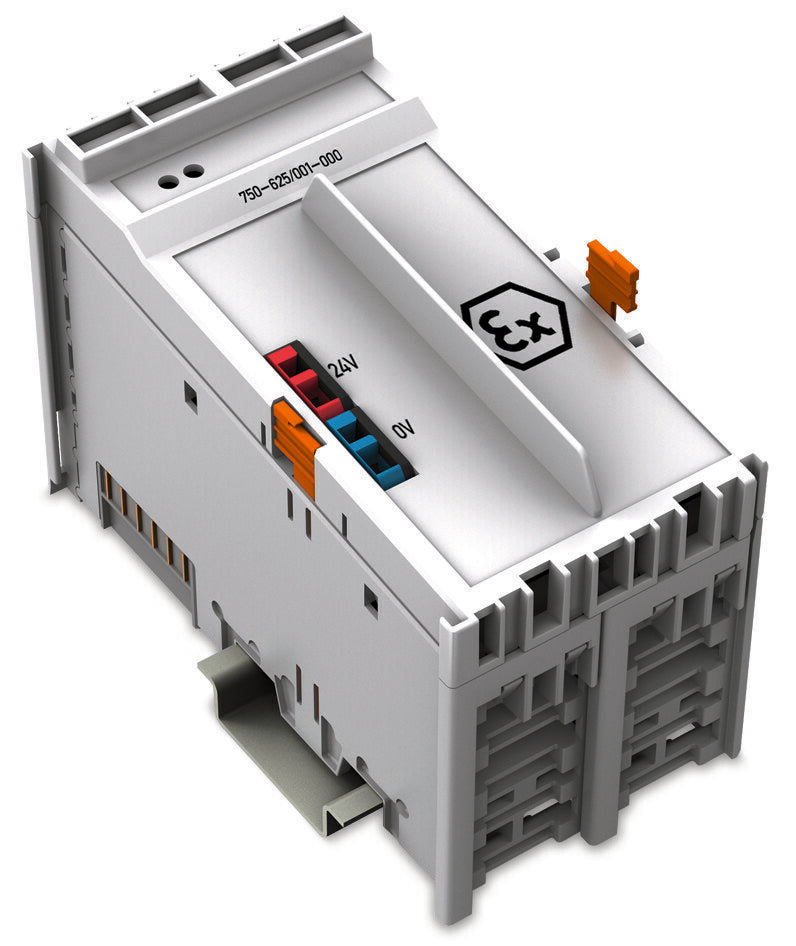

WAGO 750-625/000-001 24V DC 1.0A POWER SUPPLY EX I

Product Description

The WAGO 750-625/000-001 is a 24V DC power supply with a rating of 1.0A. It is designed for use in industrial communication and control applications. This power supply module is equipped with CAGE-CLAMP spring connections for easy wiring and is suitable for DIN rail mounting. The operating voltage range is between eighteen and thirty-one point two volts AC or twenty-four volts DC nominal. This module is also rated for ambient temperatures from zero degrees Celsius to fifty-five degrees Celsius.

• Output current of 1.0A
• DIN rail mounting design
• LED indicators for input and output voltage status

Product Highlights

This power supply module ensures reliable operation in demanding industrial environments.

Product Information

Standard Information

• Brand: WAGO
• Manufacturer: WAGO

Technical Specifications

• Type: I/O Device
• Catalog Number: 750-625/000-001
• UNSPSC Code: 32150000
• Conductor Range: 14-28 AWG
• Connection: Terminals (Cage-clamp)
• Dimensions: H100mm x W48mm x D70.9mm
• Weight: 167 grams
• Country of Origin: Germany
