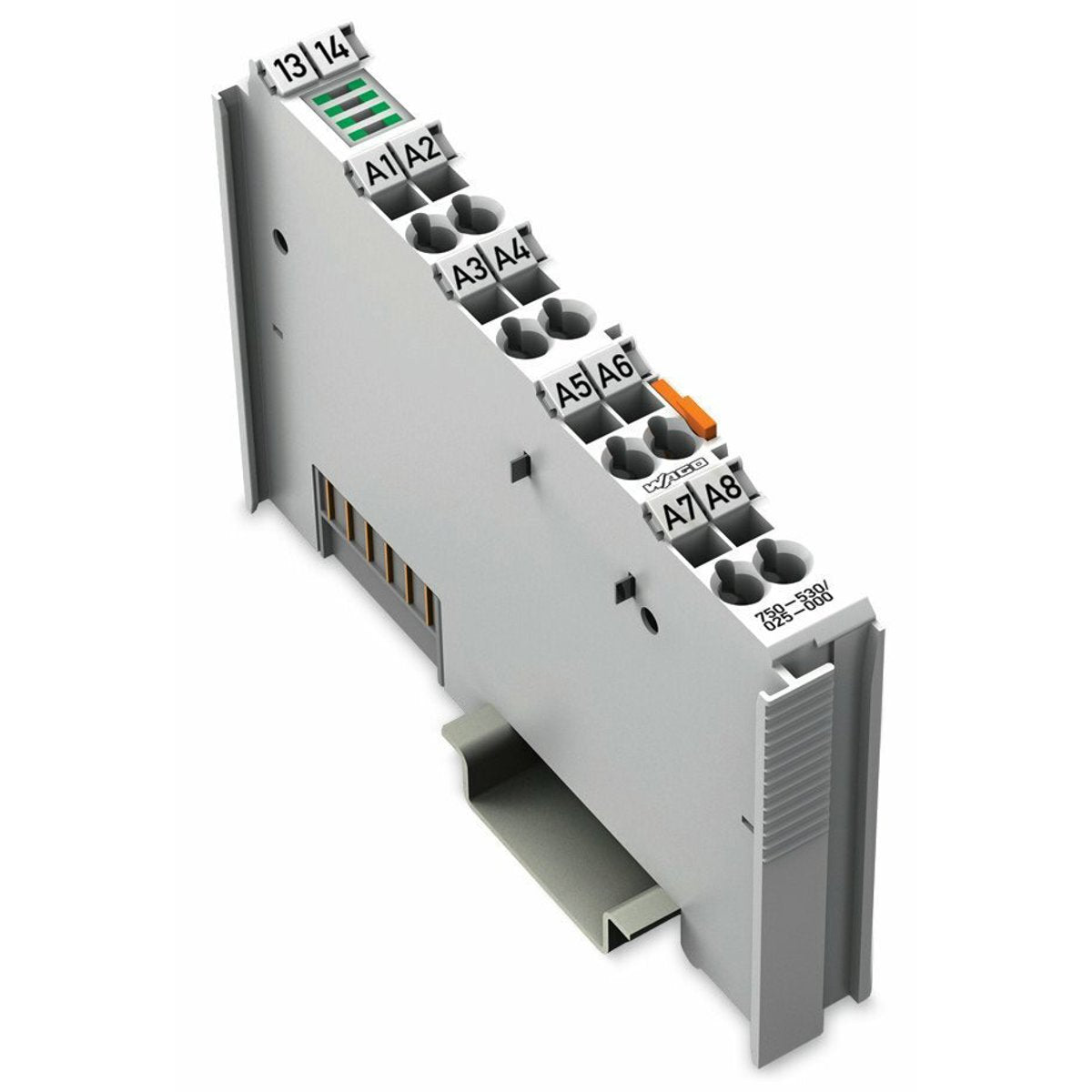

WAGO 750-530/025-000 Standard DC digital output slice module with extended temperature range

Product Description

The WAGO 750-530/025-000 is a standard DC digital output slice module that provides an extended temperature range. It features eight digital outputs operating at twenty-four volts direct current with a current capacity of five hundred milliamps per output. This module is designed for use in harsh environments, with an operational temperature range from negative twenty degrees Celsius to sixty degrees Celsius.

• Eight digital outputs, each rated for 24V DC and 500mA
• DIN rail mounting with a width of twelve millimeters
• Push-in spring cage-clamp connections for easy wire management

Product Highlights

This module is ideal for expanding the digital output capability of your control systems. It is suitable for various industrial applications, especially where precise control and reliability are required.

Product Information

Standard Information

• Catalog Number: 750-530/025-000
• Manufacturer: WAGO

Technical Specifications

• Country of Origin: Germany
• Color: Light gray
• Conductor Range: 14-28 AWG
• Connection: Terminals (Cage-clamp)
• Mounting: DIN Rail
• RoHS Indicator: Yes
• Dimensions: H100mm x W12mm x D67.8mm
• Weight: 49 grams
• GTIN: 4045454753450
• Item Type: I/O unit
