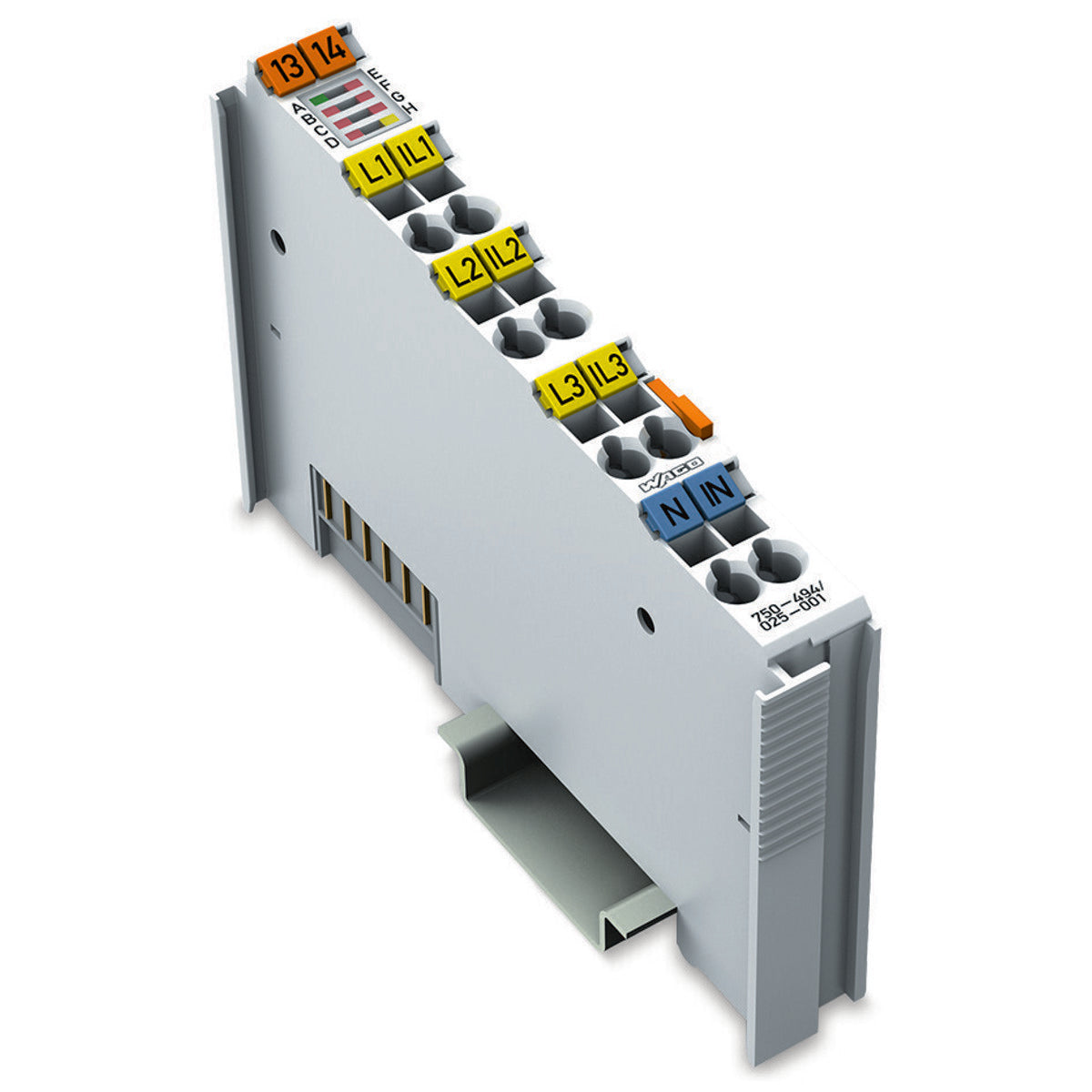

WAGO 750-494/025-001 Standard Analog Input Slice Module with Extended Temperature Range for 3-Phase Pwr Measurement

Product Description

The WAGO 750-494/025-001 is a standard analog input slice module designed for three-phase power measurement applications. This module offers a robust temperature range, allowing it to function efficiently in various ambient conditions. With LED indicators for communication and errors, it provides clear operational feedback.

• Extended temperature range from negative twenty degrees Celsius to sixty degrees Celsius.
• Supports a supply voltage of five volts DC powered by the system.
• Equipped with push-in spring cage-clamp connections for easy installation.

Product Highlights

This I/O unit is ideal for industrial automation, designed specifically for three-phase power measurement. Its compact design allows for mounting on a DIN rail.

Product Information

Standard Information

• Brand: WAGO
• Catalog Number: 750-494/025-001
• Manufacturer: WAGO

Technical Specifications

• Conductor Range: 14-28 AWG
• Connection: Terminals (cage-clamp)
• Height: 100 mm / 3.937 inches
• Width: 0.472 inches
• Depth: 67.8 mm / 2.669 inches
• Weight: 48.695 grams
• Mounting: DIN Rail
• Country of Origin: Germany
