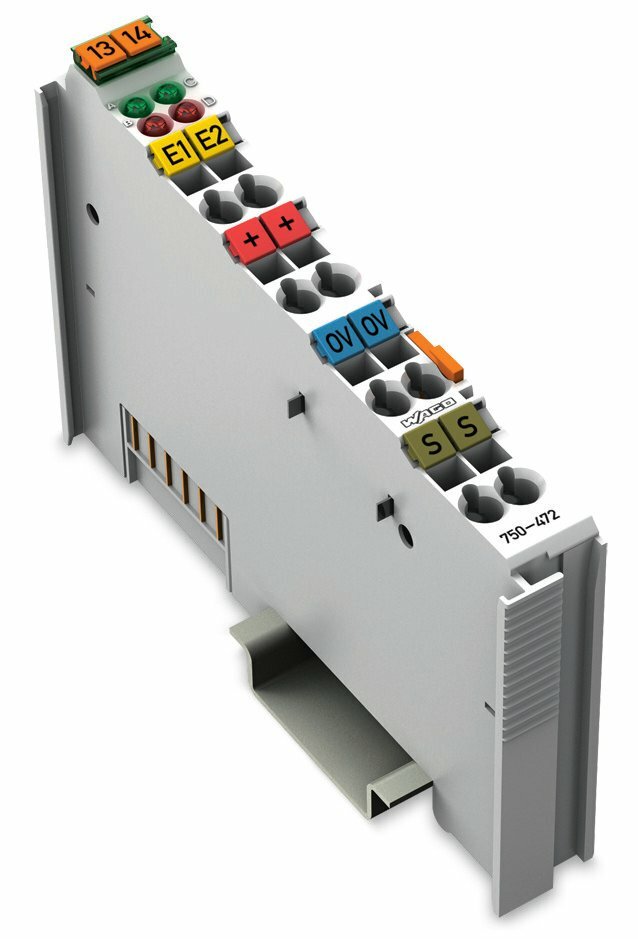

WAGO 750-472 Standard Analog Input Slice Module - 2AI; 0-20mA; SE; 16bits; 50Hz

Product Description

The WAGO 750-472 is a standard analog input slice module designed for precision control and monitoring. This module features two analog inputs that accept signals ranging from zero to twenty milliamperes. It operates at a resolution of fifteen bits and supports two-wire and three-wire configurations, making it versatile for various applications.

• Two analog inputs with a range of zero to twenty milliamperes
• Supports fifteen bits resolution with an eighty milliseconds conversion time
• DIN rail mounting and IP20 rated for secure installation

Product Highlights

The WAGO 750 series is ideal for industrial control systems, allowing for simple integration with other components. The module is equipped with LED indicators for monitoring the input status and any error conditions.

Product Information

Standard Information

• Manufacturer: WAGO
• Origin: Germany

Technical Specifications

• Catalog Number: 750-472
• Power Supply: 5 VDC (supplied by system)
• Mounting Type: DIN rail
• Dimensions: H100mm x W12mm x D69.8mm
• Weight: 52.5 grams
• Connection Type: Terminals (Cage-clamp)
• Conductor Range: 14-28 AWG
• RoHS Compliance: Yes
• Operating Temperature: 0°C to +55°C
