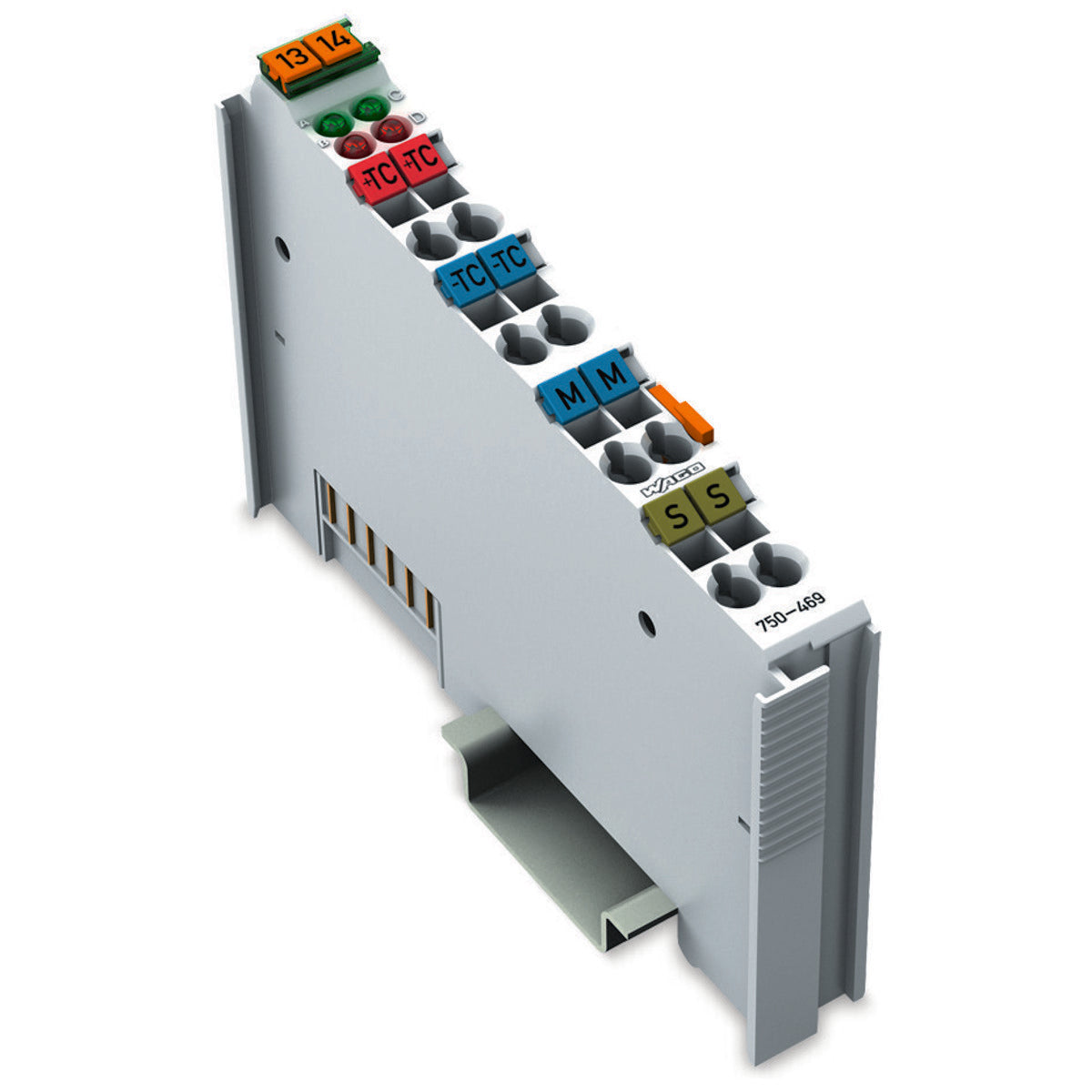

WAGO 750-469 Standard Analog Input Slice Module with Diagnostics - 2AI; TC K; Diagn - 2I/O

Product Description

The WAGO 750-469 is a standard analog input slice module designed for effective data acquisition in industrial settings. This module features two analog inputs for thermocouple type K, delivering a resolution of zero point one degrees Celsius with a response time of three hundred twenty milliseconds. It operates with a supply voltage of five volts DC, drawn from the system.

• Two analog inputs for thermocouple type K
• Push-in spring cage-clamp connections
• DIN-35 rail mounting, dimensions of twelve millimeters in width

Product Highlights

WAGO’s slice module is ideal for use in control systems where precision temperature measurement is required. It is well-suited for applications in HVAC, automation, and manufacturing.

Product Information

Standard Information

• Catalog Number: 750-469
• Brand: WAGO

Technical Specifications

• Dimensions: H100mm x W12mm x D69.8mm
• Weight: 52 grams
• Operating Temperature Range: 0°C to +55°C
• Mounting Type: DIN Rail
• Conductor Range: 14-28 AWG
• Indicators: LED (green and red) for function and error notifications
• RoHS Compliant: Yes
• Country of Origin: Germany
