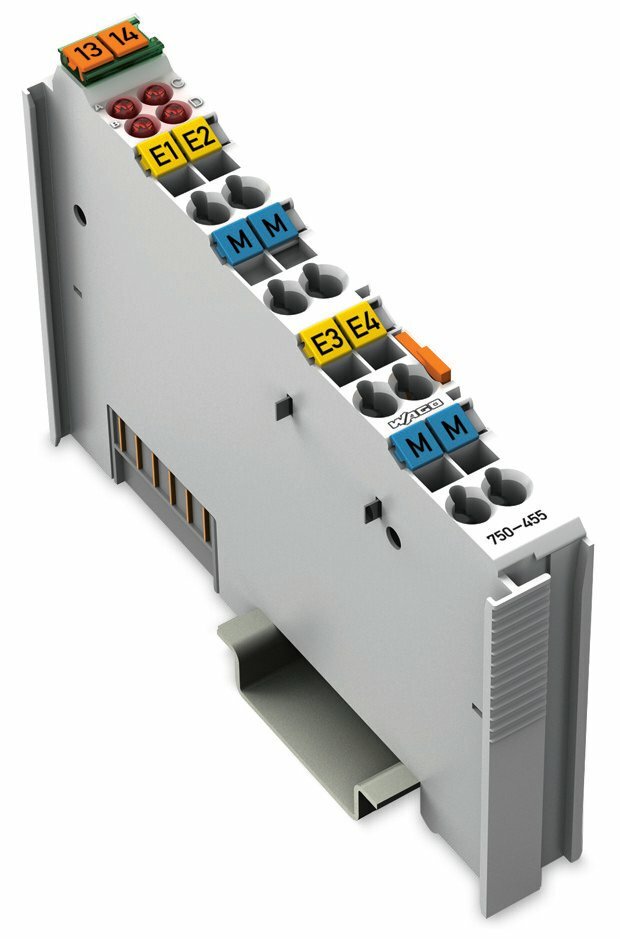

WAGO 750-455 Standard Analog Input Slice Module 4AI 4-20mA SE DIN Rail Mount

Product Description

The WAGO 750-455 is a high-performance standard analog input slice module designed for efficient control and monitoring in industrial settings. Its integration facilitates precise signal processing with a 12-bit resolution for 4-20mA single-ended analog inputs, enhancing system accuracy and reliability.

• Supports four analog inputs with a common ground potential, streamlining connectivity.
• Features push-in spring cage-clamp connections for secure and maintenance-free wiring.
• Equipped with LED indicators for immediate system diagnostics and error detection.

Product Highlights

Optimized for use on a DIN-35 rail, the module's compact design only occupies a width of twelve millimeters, making it ideal for installations where space is at a premium. It functions effectively within a temperature range of 0 to 55 degrees Celsius, ensuring durability and performance stability under varying environmental conditions.

Product Information

Standard Information

• Mounting Type: DIN Rail
• Connection Type: Cage-clamp terminals

Technical Specifications

• Input Type: 4-20mA, Single-Ended
• Resolution: 12 bits
• Conversion Time: 10 ms
• Supply Voltage: 5 VDC, supplied by system
• Housing Color: Light gray
• Dimensions: Height: 100 mm, Width: 0.472 inches, Depth: 69.8 mm
• Weight: 65 grams
• Compliance: RoHS, Made in Germany
