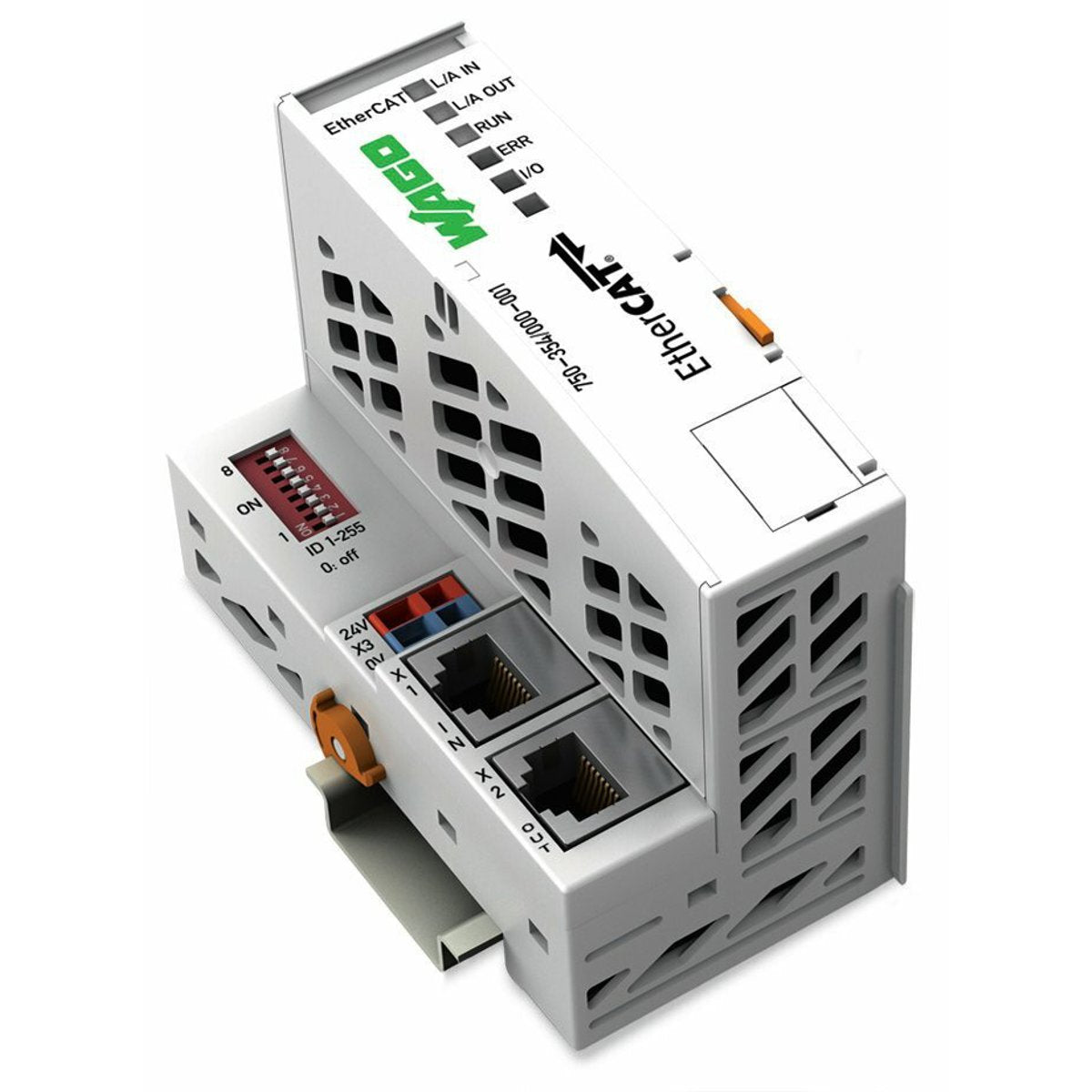

WAGO 750-354/000-002 Fieldbus Coupler with Diagnostics - 64 x Connections per Node

Product Description

The WAGO Fieldbus Coupler with MPN 750-354/000-002 is designed for efficient integration into automation systems. This unit connects devices within compatible fieldbus networks, enhancing communication capabilities.

• 64 x connections per node capability
• EtherCAT communication support
• Operating voltage of 24V DC via wiring system

Product Highlights

This module provides diagnostics via an ID switch and features two RJ45 connectors for networking. It allows for robust performance in various applications, ranging from industrial automation to control systems.

Product Information

Standard Information

• Brand: WAGO
• Country of Origin: Germany

Technical Specifications

• Catalog Number: 750-354/000-002
• Conductor Range: 14-28 AWG
• Connection Type: RJ-45 connector, Terminals (Cage-clamp)
• Mounting Type: Din Rail
• Speed: 100 Mbit/s
• RoHS Compliance: Yes
• Dimensions: Height 96.8 mm / 3.811 inches, Width 49.5 mm / 1.949 inches, Depth 71.9 mm / 2.831 inches
• Weight: 109 grams
