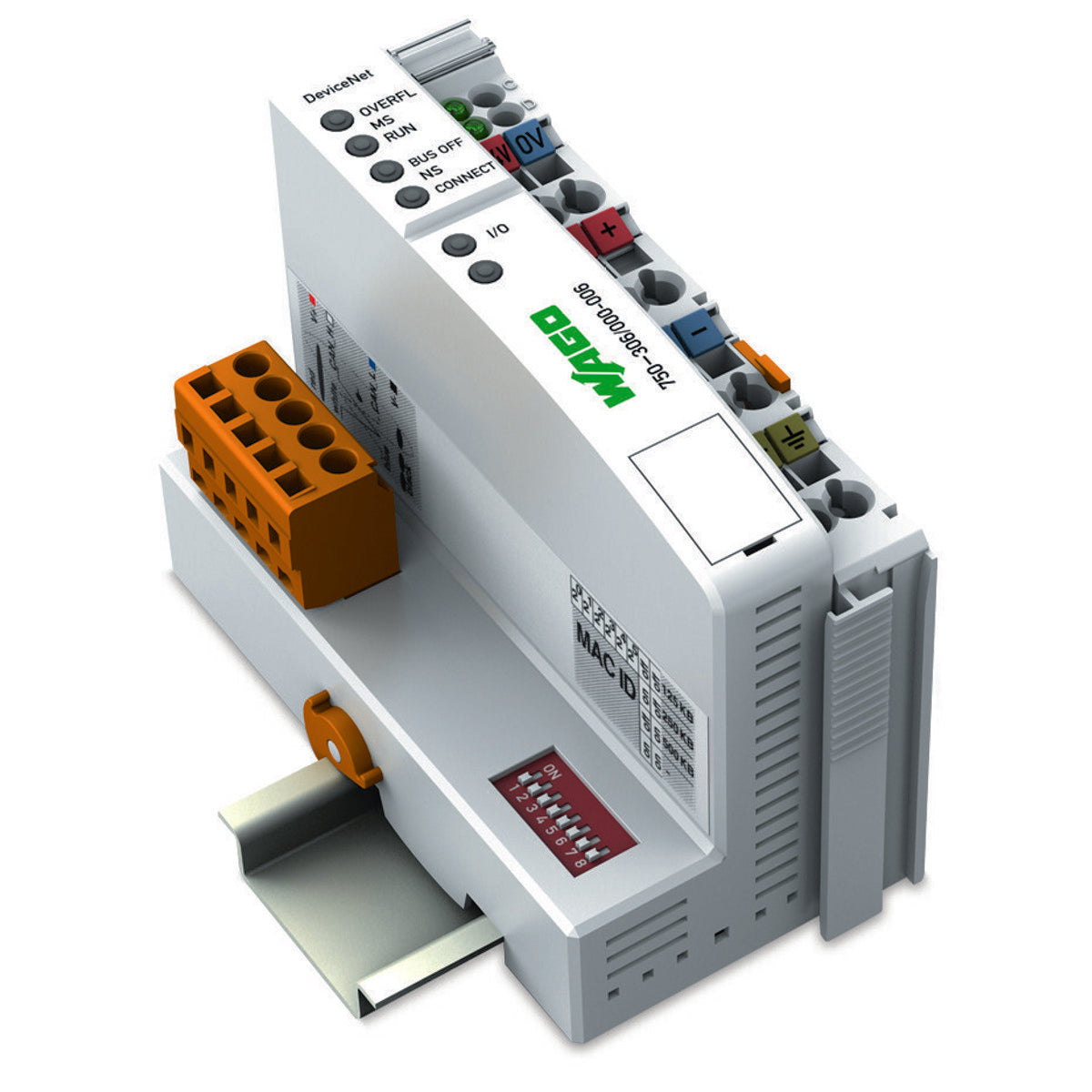

WAGO 750-306/000-006 Fieldbus Coupler / Head Unit - 64 x Connections per Node + 64 x Fieldbus Nodes

Product Description

The WAGO 750-306/000-006 is a fieldbus coupler designed for industrial automation applications. It allows for 64 connections per node and supports a total of 64 fieldbus nodes on the master connection. This device communicates via DeviceNet and operates on a supply voltage of 24V DC. It features a 5-pin male connector and is equipped with a push-in spring cage-clamp for power supply connections, as well as a 4-pin male connector for device configuration.

• Compatible with DIN-35 rail mounting, measuring fifty point five millimeters wide.
• Operates in ambient temperatures ranging from zero degrees Celsius to fifty-five degrees Celsius.
• Includes a robust design with an IP20 rating for safety in industrial settings.

Product Highlights

This WAGO fieldbus coupler is ideal for expanding network capabilities in automation systems. Its flexible design supports devices with different communication protocols and ensures reliable data transfer.

Product Information

Standard Information

• Catalog Number: 750-306/000-006
• Manufacturer: WAGO

Technical Specifications

• Country of Origin: Germany
• Conductor Range: 14-28 AWG
• Connection Type: Terminals (Cage-clamp)
• Mounting Type: DIN Rail
• Speed Options: 125kbit/s, 250kbit/s, 500kbit/s
• RoHS Compliant: Yes
• Dimensions: Height 100 mm / Width 50.5 mm / Depth 71.1 mm
• Weight: 202 grams
