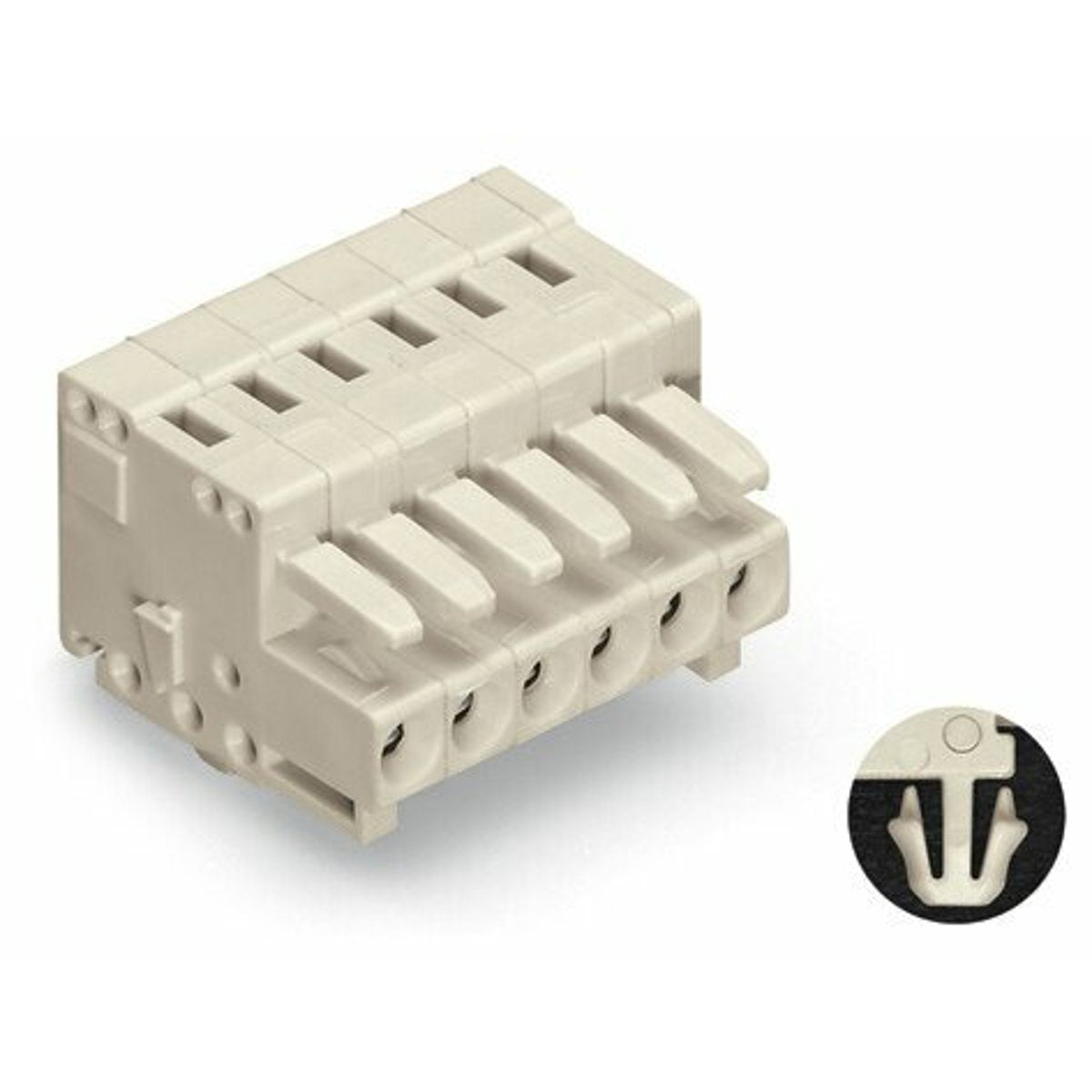

WAGO 734-106/008-000 1-conductor female connector CAGE CLAMP 1.5 mm Pin spacing 3.5 mm 6-pole

Product Description

The WAGO 734-106/008-000 is a 1-conductor female connector designed for reliability in wiring applications. It features cage clamp technology for secure connections and has a pin spacing of 3.5 mm with six poles. This connector provides 100% protection against mismating, ensuring safety and ease of use during installations. Snap-in mounting feet facilitate quick assembly in various setups.

• Cage clamp connection
• Compatible with 14-28 AWG conductor range
• Rated for a maximum current of 10 A

Product Highlights

WAGO connectors are known for their durable design and efficient function in electrical systems.

Product Information

Standard Information

• Brand: WAGO
• Country of Origin: Germany

Technical Specifications

• Catalog Number: 734-106/008-000
• Material: Polyamide (PA66)
• Voltage Rating: 160 V
• Current Rating: 10 A
• Conductor Range: 14-28 AWG
• Mounting Type: Snap
• Width: 0.913 inches
• Height: 0.744 inches
• Depth: 0.732 inches
• Weight: 4.749 grams
