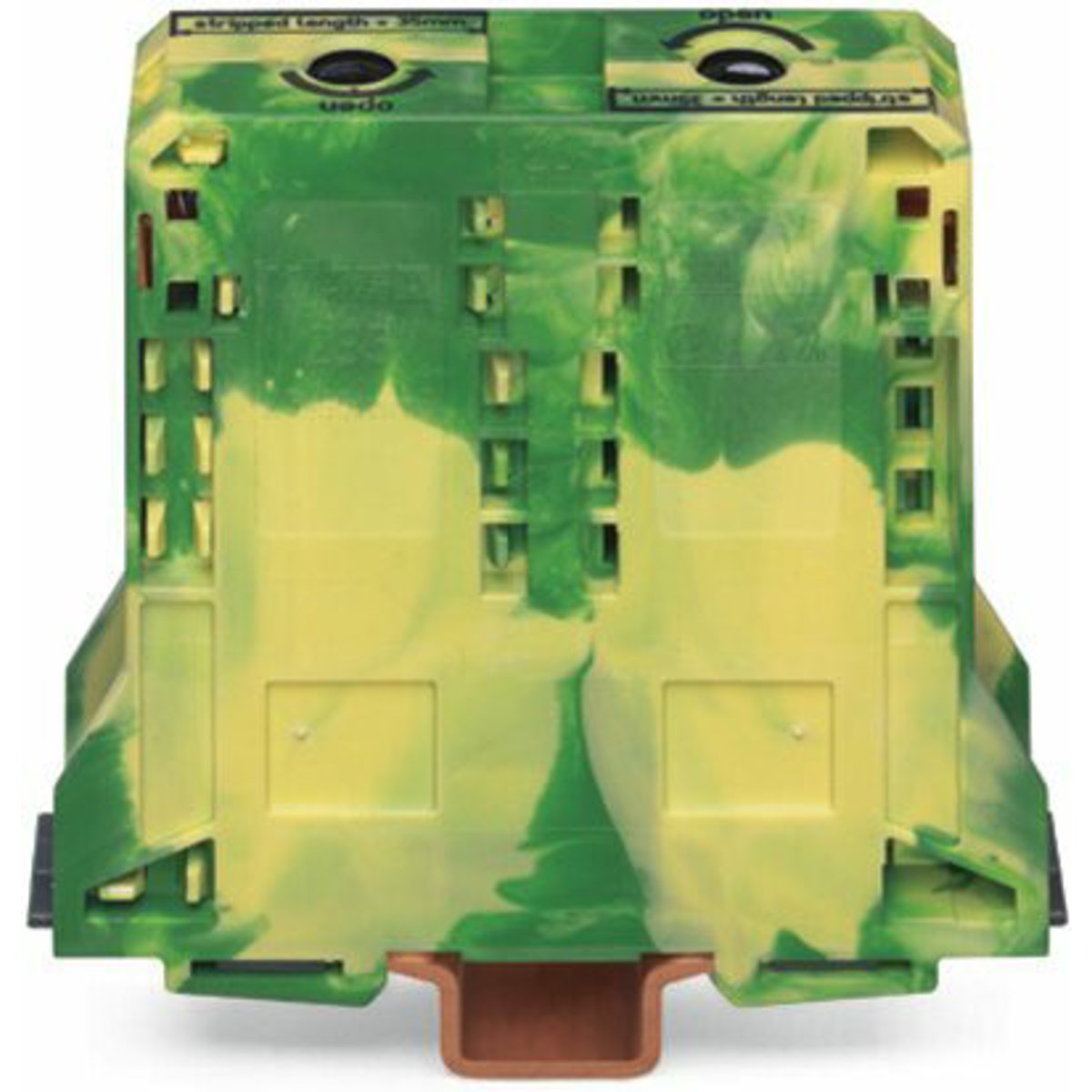

WAGO 285-197/999-950 Ground/Earthing Terminal Block 1-Deck DIN Rail POWER CAGE-CLAMP

Product Description

Introducing the WAGO Ground/Earthing Terminal Block, model 285-197/999-950, designed for secure and reliable grounding applications in electrical installations. This terminal block features a robust design suitable for Ex e II applications, emphasizing safety and efficiency.

• Suitable for wires ranging from 35mm2 to 70mm2, accommodating #2AWG to #2/0AWG sizes.
• Equipped with POWER CAGE-CLAMP screw connections for enhanced conductivity and security.
• Easy installation on DIN-35 rail with dimensions of Width 25mm, Height 107mm, and Depth 101mm.

Product Highlights

This terminal block is a high-performance choice for various industrial settings requiring reliable grounding solutions. The green-yellow color coding facilitates easy identification of safety features, and the lateral marking slots provide additional functionality for organized cable management.

Product Information

Standard Information

• Brand: WAGO
• MPN: 285-197/999-950
• Color: Green-Yellow

Technical Specifications

• Material: Polyamide (PA66)
• Connection Type: Terminal (Cage-clamp)
• Mounting Type: Din Rail
• RoHS Compliant: Yes
