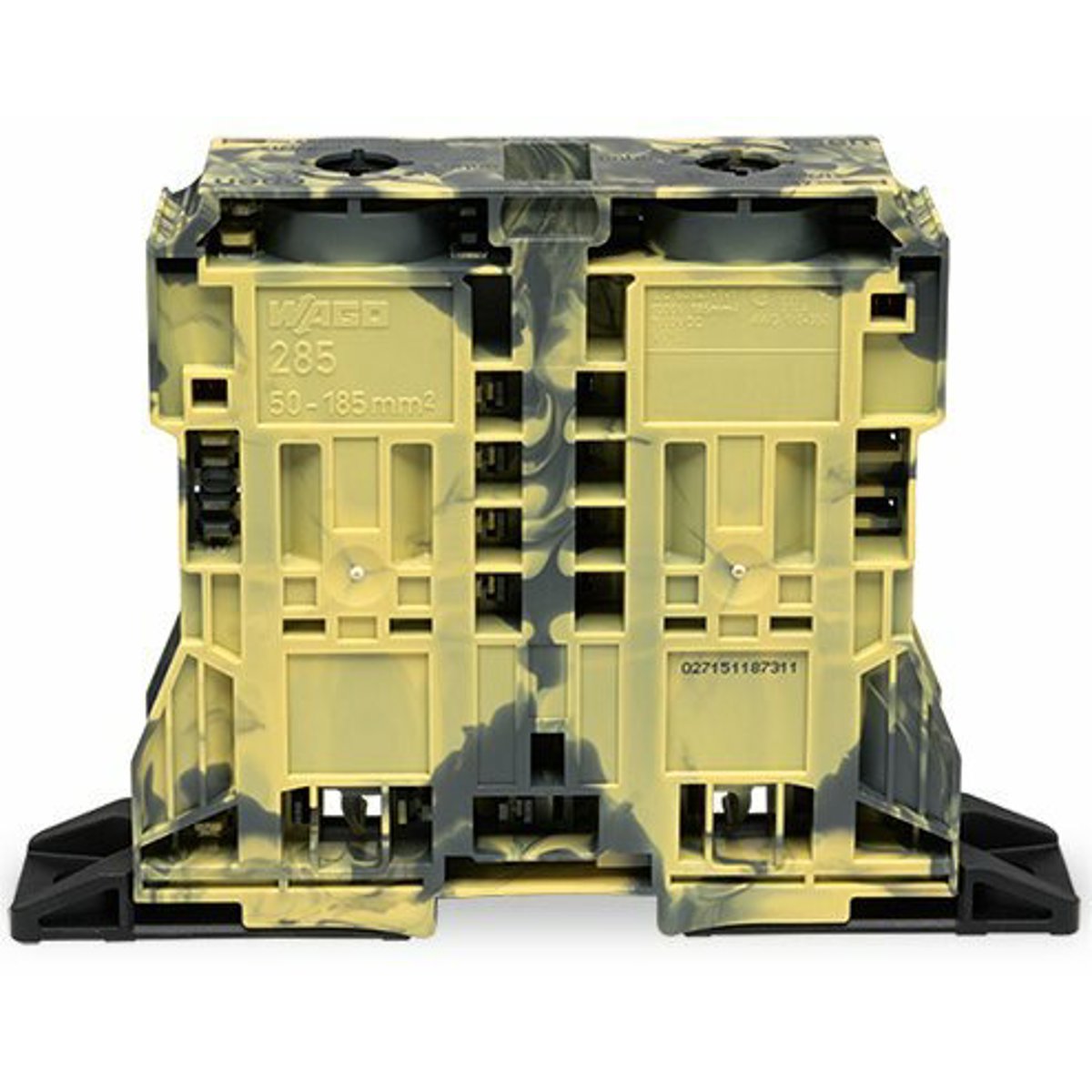

WAGO 285-1167 Feed-through Terminal Block 1-Deck Level with POWER CAGE-CLAMP Surface Mount

Product Description

Explore the innovative technology of the WAGO 285-1167 Feed-through Terminal Block. Designed for effective management and connection of wires, it features a modern cage-clamp technology for secure and reliable connections.

• Utilizes a powerful CAGE-CLAMP for fast, tool-free wire connections.
• Supports a wide conductor range from 1/0 AWG up to 350kcmil, suitable for various industrial applications.
• Robust polyamide housing ensures durable performance in demanding environments.

Product Highlights

This terminal block is engineered for high efficiency with a rated current of 353A and a voltage rating of 1000 volts, making it suitable for heavy-duty applications. Its compact design allows for density without sacrificing performance.

Product Information

Standard Information

• Brand: WAGO
• Model: 285-1167
• Color: dark gray-yellow
• Material: Polyamide (PA66)

Technical Specifications

• Dimensions: H123mm x W32mm x D170mm
• Weight: 562 grams
• Connection Type: Cage-clamp
• Conductor Range: 1/0 AWG to 350kcmil
• Current Rating: 353 A
• Voltage Rating: 1000 volts
• Mounting Type: Surface
• RoHS Indicator: Yes
