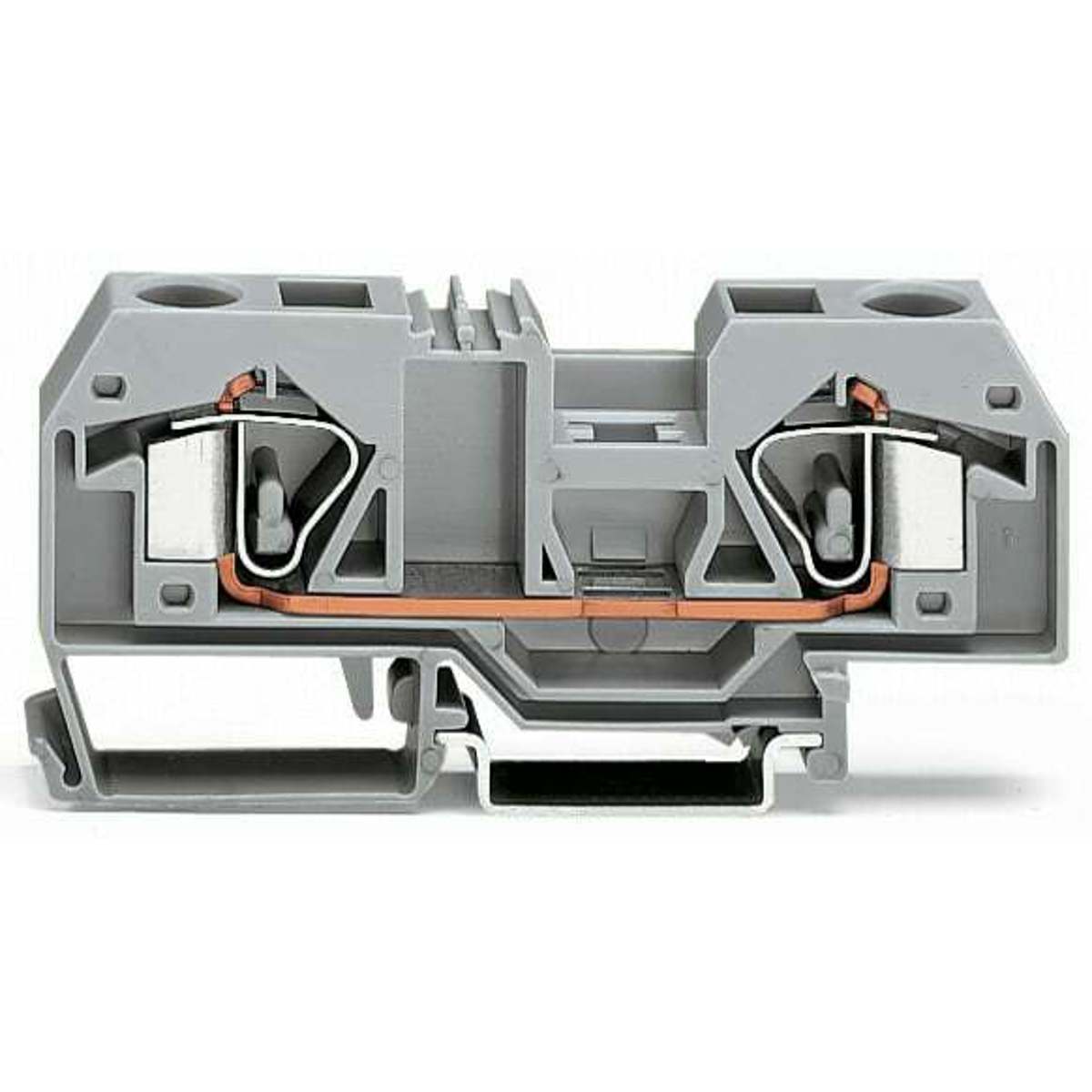

WAGO 283-901 Terminal Block Gray 76A DIN Rail Mount

Product Description

The WAGO 283-901 terminal block is engineered for reliable wire connections and convenient functionality in electrical distribution systems. This model features a feed-through pole design, suitable for wiring sizes from 0.2mm² to 16mm², and accepts wires ranging from #24AWG to #6AWG.

• Designed for DIN 35 rail mounting, providing a secure fixing and easy installation.
• Equipped with CAGE-CLAMP spring connections that ensure a durable and maintenance-free connection.
• Constructed from gray polyamide (PA66), offering high durability and resistance to environmental factors.

Product Highlights

The terminal block is rated for a substantial current of 76A and uses a cage-clamp mechanism for securing connections.

Product Information

Standard Information

• Color: Gray
• Material: Polyamide (PA66)

Technical Specifications

• Connection Type: Terminals (Cage-clamp)
• Conductor Range: 6-24 AWG
• Current Rating: 76A
• Mounting Type: DIN Rail
• Dimensions: Height 94.5mm, Width 12mm, Depth 37.5mm
