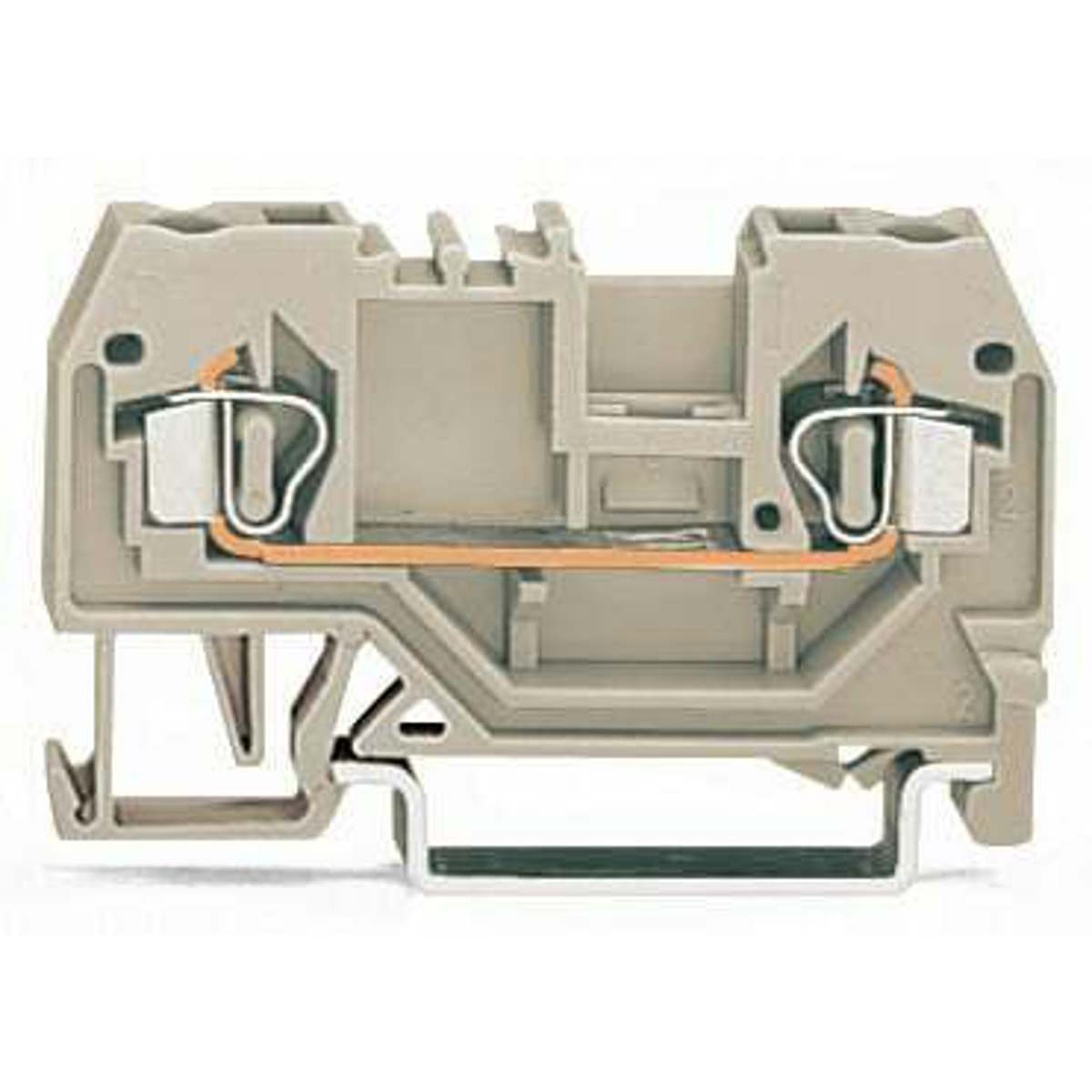

WAGO 280-992 Feed-through Terminal Block 1P 2 Wires Light Gray

Product Description

The WAGO 280-992 terminal block is designed for efficient and reliable electrical connections in industrial settings. This feed-through terminal block features a single-deck with a central marking slot, optimized for Ex e II applications. The light gray block supports a conductor range of 12 to 28 AWG and is enabled with CAGE-CLAMP spring connections for quick and secure wiring.

• Supports conductor sizes from 12 to 28 AWG
• Rated for currents up to 23 amps
• Easy installation on DIN rails measuring 35 x 15 or 35 x 7.5 millimeters

Product Highlights

Constructed from durable polyamide (PA66), the 280-992 terminal block features copper conductors ensuring reliable electrical performance. It is suited for both low and high density wiring applications in panel setups. As part of WAGO's 280 series, this product ensures compatibility with a broad range of setups.

Product Information

Standard Information

• Brand: WAGO
• Color: light gray

Technical Specifications

• Connection Type: Cage-clamp
• Material: Polyamide (PA66)
• Mounting Type: Din Rail
• Dimensions: Height 53mm x Width 5mm x Depth 28mm
• Weight: 5.6 grams
• Conductor Material: Copper
• Country of Origin: Germany
• RoHS Compliant: Yes
