Product Description

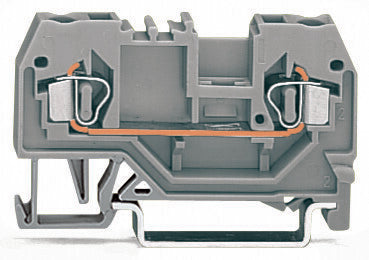

This WAGO 280-903 terminal block is a compact, high-performance solution designed for efficient wire connection on DIN rails. Constructed with a robust polyamide housing and featuring a unique cage-clamp connection, this terminal block ensures a secure and reliable connection for a range of conductor sizes.
- Supports conductor sizes from #28AWG to #12AWG.
- Equipped with a cage-clamp connection for rapid and tool-free wiring.
- Red color coding for easy identification within complex circuits.
Product Highlights
Rated for up to 24A and suitable for 800V applications, the WAGO 280-903 is ideal for a variety of electrical installations. Its slim design, measuring only 0.197 inches in width, allows for high-density mounting on standard DIN-35 rails.
Product Information
Standard Information
-
Brand: WAGO
-
Color: red
-
Material: Polyamide (PA66)
-
Mounting: Din Rail
Technical Specifications
-
Current Rating: 24 A
-
Voltage Rating: 800
-
Conductor Range: 12-28 AWG
-
Connection Type: Cage-clamp
-
Dimensions: H53mm x W5mm x D28mm
-
Rohs Compliance: Yes
