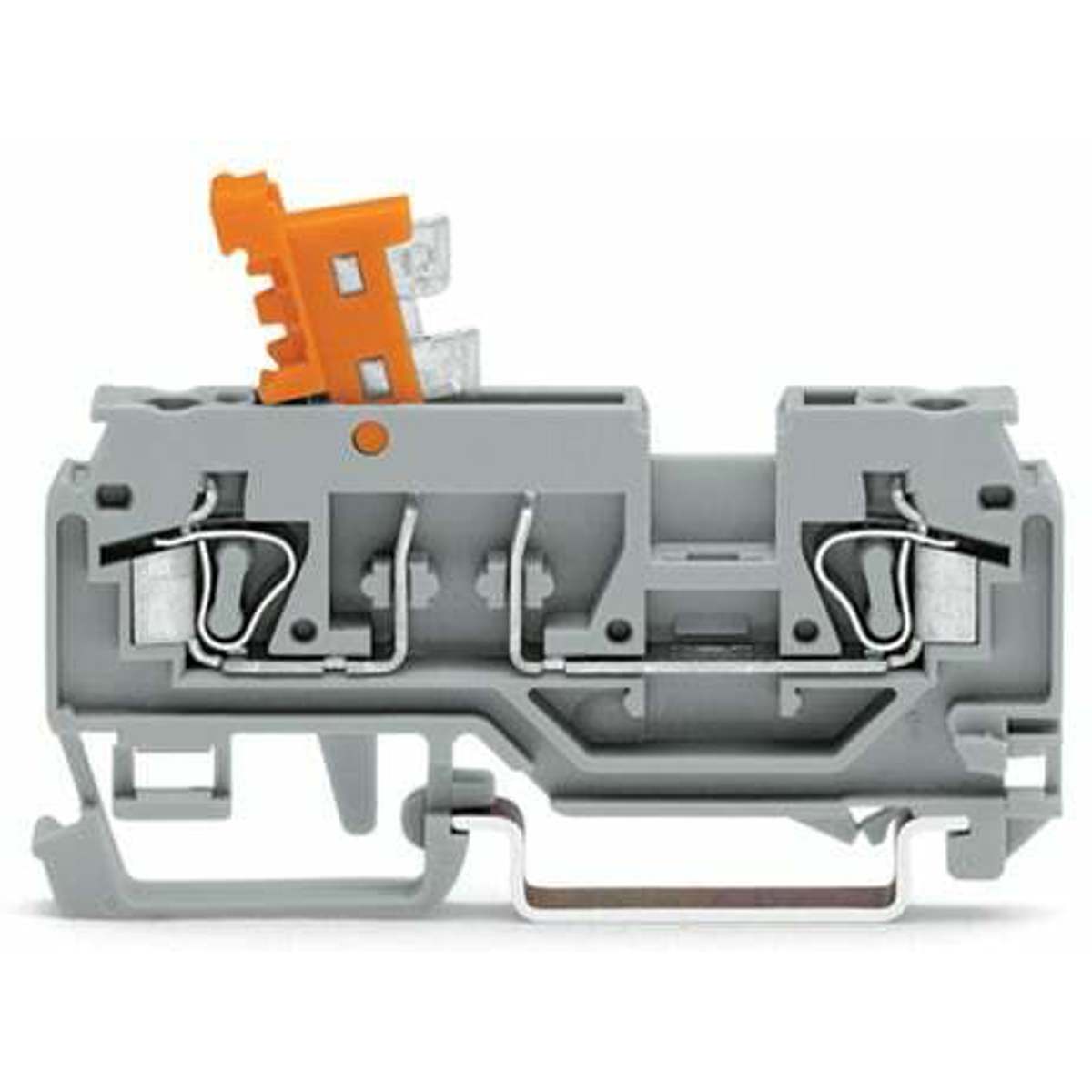

WAGO 280-879 Feed-through/Thru Disconnect/Test Terminal Block with Test Port

Product Description

The WAGO 280-879 is a feed-through/thru disconnect/test terminal block designed for efficient electrical connections. It features a test port, allowing for easy testing and troubleshooting. This terminal block supports a conductor range from zero point zero eight square millimeters to two point five square millimeters, which accommodates wire sizes from twenty-eight AWG to twelve AWG. Its design includes two clamps for secure wire attachments.

• Rated for a maximum current of sixteen amperes
• Compatible with DIN rail mounting for easy installation
• Constructed with polyamide material for durability

Product Highlights

This terminal block offers reliable connections and is ideal for use in various electrical applications.

Product Information

Standard Information

• Brand: WAGO
• Catalog Number: 280-879

Technical Specifications

• Conductor Material: Copper
• Conductor Range: 12-28 AWG Conductor Range
• Connection: Terminals (Cage-clamp)
• Current Rating: 16 A
• Material: Polyamide (PA66)
• Mounting: Din Rail
• Voltage Rating: 400
• RoHS Indicator: Yes
• Country of Origin: India
• Dimensions: H69.5mm x W5mm x D28.5mm
• Weight: 8.646 grams
