Product Description

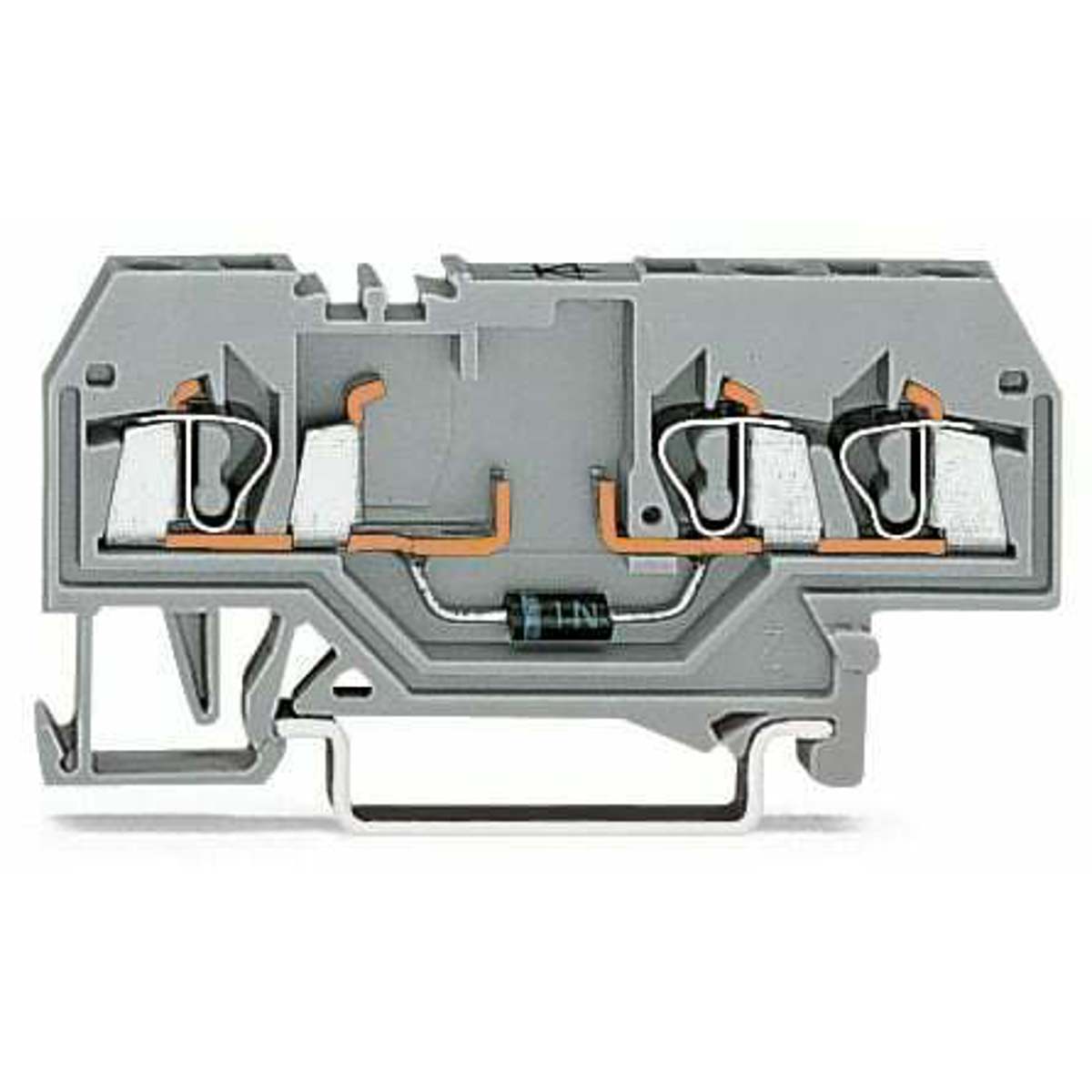

Enhance your power distribution setup with the WAGO 280-673/281-410 Terminal Block. This gray component feed-through terminal block features a built-in diode (1N4007) with the anode on the left side, designed for reliable and efficient wiring in a compact format.
- Utilizes CAGE-CLAMP spring connections for secure and maintenance-free wiring.
- Supports wire sizes from #28AWG to #14AWG, accommodating a wide range of applications.
- Designed for easy mounting on DIN-35 rail systems, ensuring a stable and secure fit.
Product Highlights
This terminal block is optimized for connections requiring a minimal footprint, providing excellent conductivity thanks to its copper conductors. It's ideal for a variety of industrial applications.
Product Information
Standard Information
-
Catalog Number: 280-673/281-410
-
Brand: WAGO
-
Country of Origin: China
-
RoHS Compliant: Yes
Technical Specifications
-
Color: Gray
-
Conductor Material: Copper
-
Connection Type: Cage-clamp terminals
-
Current Rating: 0.5 A
-
Material: Polyamide (PA66)
-
Mounting Type: Din Rail
-
Dimensions: 2.52 inches (Height) x 0.197 inches (Width) x 1.10 inches (Depth)
-
Weight: 7.976 grams
