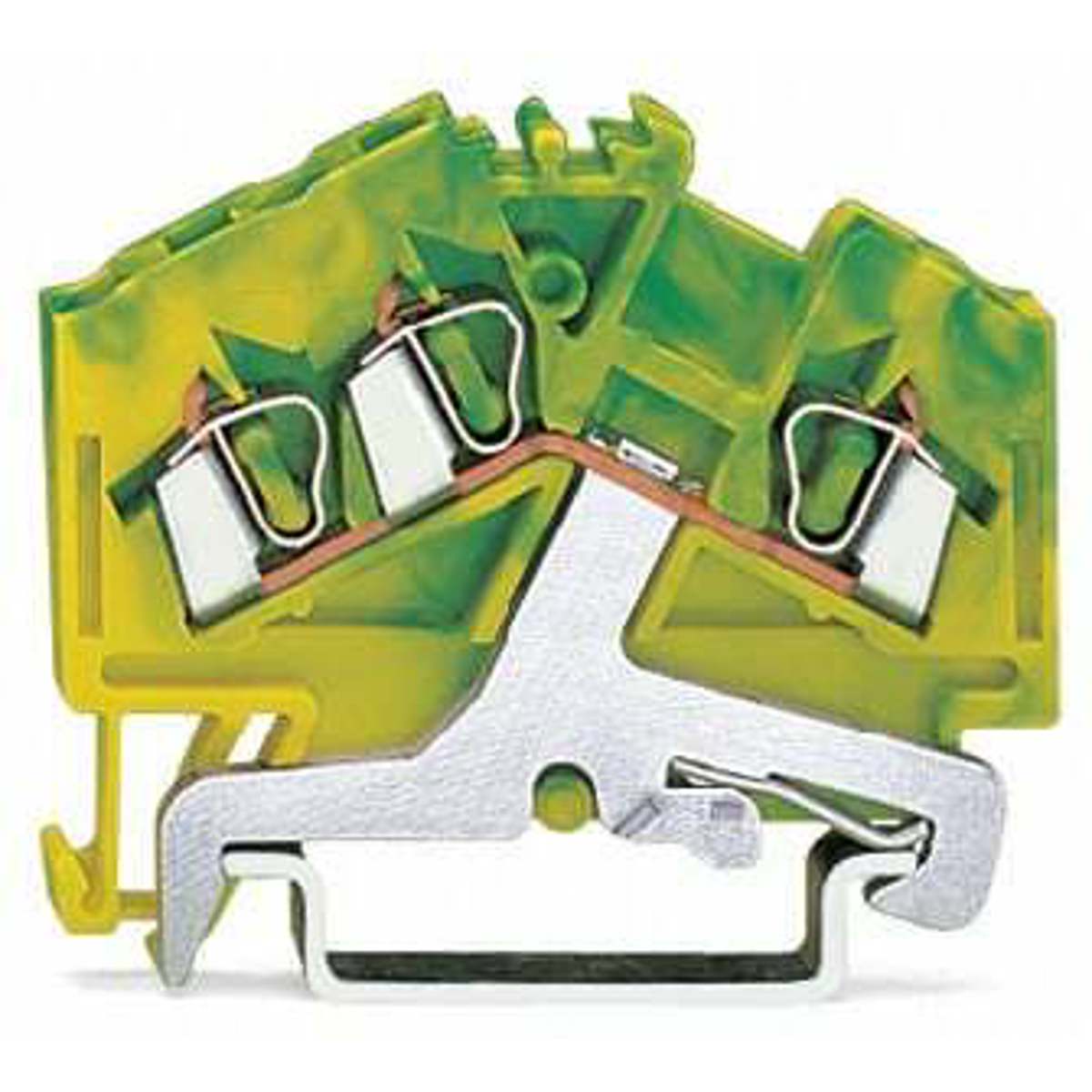

WAGO 280-637 Terminal Block Ground/Earthing 1 Deck Green/Yellow DIN Rail Mount Cage-Clamp

Product Description

Enhance the reliability and organization of your electrical installations with the WAGO 280-637 Terminal Block. This product is designed for effective grounding in power distribution setups.

• Compatible with wire sizes from #28AWG to #12AWG, accommodating a broad range of conductor diameters.
• Features a compact design with a width of 0.197 inches, suitable for DIN-35 rail mounting.
• Equipped with WAGO's innovative CAGE-CLAMP spring connections for quick and secure wiring without tools.

Product Highlights

The terminal block is crafted using high-quality polyamide (PA66), ensuring durability and resistance to environmental factors. Its green-yellow color coding adheres to standard electrical codes for grounding and earthing.

Product Information

Standard Information

• Country of Origin: Germany
• RoHS Compliant: Yes

Technical Specifications

• Conductor Range: 12-28 AWG
• Mounting Type: DIN Rail
• Dimensions: Height 50.5 mm, Width 5 mm, Depth 36.5 mm
• Material: Polyamide (PA66)
• Connection Type: Cage-clamp terminals
• Actuator: Operating tool required
