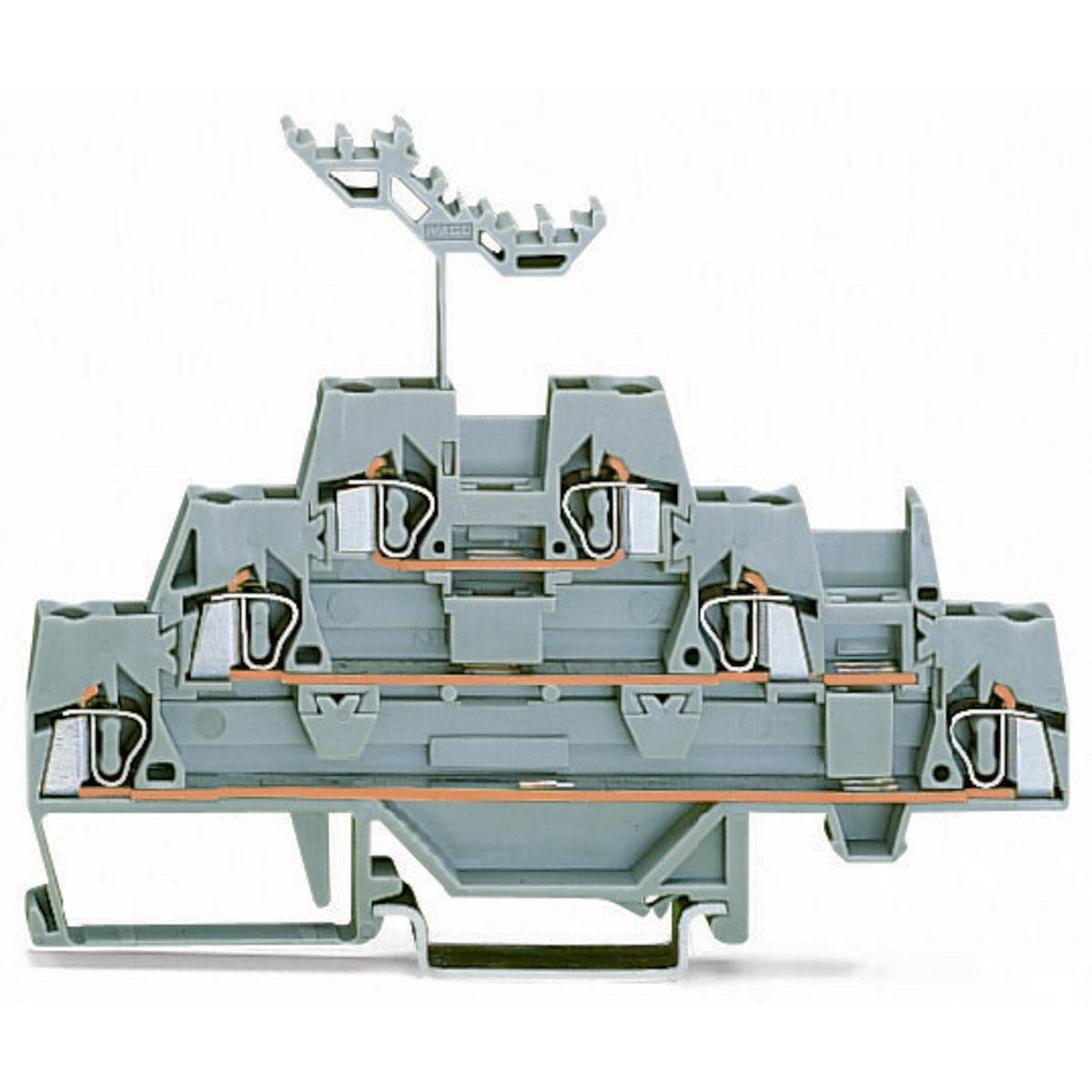

WAGO 280-549 Terminal Block Triple Deck Gray 3P 20A DIN Rail Mount

Product Description

The WAGO 280-549 terminal block is a robust triple deck design ideal for efficient wiring and control applications. This product features CAGE-CLAMP spring connections for quick and reliable wiring.

• Triple deck feed-through configuration for optimal organization.
• Supports a wide conductor range from 12 AWG to 28 AWG.
• Mountable on a DIN-35 rail, offering flexibility in installation.

Product Highlights

The terminal block is rated for currents up to 20A and accommodates copper conductors, ensuring effective power distribution and high durability. This product, made from polyamide material (PA66), offers longevity and resistance to various environmental conditions.

Product Information

Standard Information

• Brand: WAGO
• Color: Gray

Technical Specifications

• Weight: 18.39 grams
• Width: 5mm
• Height: 103mm
• Current Rating: 20A
• Connection Type: Cage-clamp terminals
• Voltage Rating: 500 V
• RoHS Compliant: Yes
