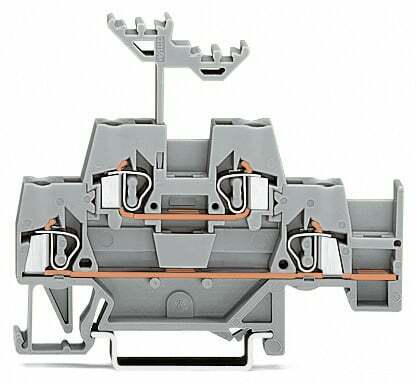

WAGO 280-520 Terminal Block 20A Double-Deck for DIN Rail Mounting

Product Description

The WAGO 280-520 terminal block is a robust and reliable solution for electrical connections, specifically designed for optimal performance and durability. Manufactured by WAGO, this double-deck feed-through terminal block features a unique CAGE-CLAMP spring connection, ensuring secure and maintenance-free connections.

• Dual deck design with an additional jumper position on the lower level for enhanced connectivity.
• Supports conductor sizes from #28AWG to #12AWG, accommodating various wire dimensions.
• Rated for 20A and suitable for mounting on DIN-35 rails.

Product Highlights

This terminal block is crafted from high-quality polyamide (PA66), known for its strength and thermal stability, making it a reliable choice for rigorous electrical setups.

Product Information

Standard Information

• Color: gray
• Conductor Material: Copper

Technical Specifications

• Connection Type: Terminals (Cage-clamp)
• Current Rating: 20 A
• Material: Polyamide (PA66)
• Mounting Type: Din Rail
• Dimensions: H74mm x W5mm x D58.5mm
• Width: 0.197 inches
• Height: 2.913 inches
• Weight: 10.711 grams
