Wago 2773-403/K000-0002 Spliccon 3c 32 Amp (Box of 100)

Product Description

Wago 2773-403/K000-0002 is a compact three-conductor Pushwire splicing connector designed for push-in termination of solid and stranded conductors. It accepts 20-12 AWG solid and 18-12 AWG stranded conductors, features copper contacts with polycarbonate insulation, and is rated for 32 Amp and 600 Volt with a temperature rating up to 85 degrees C. The connector is 0.732 inch long and supplied in boxes of 100 pieces.

• Push-in (Pushwire) termination for three conductors; accepts 20-12 AWG solid and 18-12 AWG stranded.
• Electrical ratings: 32 Amp, 600 Volt; temperature rating up to 85 degrees C.
• Copper contact with polycarbonate insulation; compact nonmetallic construction; length 0.732 inch; supplied as box of 100 pieces.

Product Highlights

Compact 3-port Pushwire splicing connector, 32 Amp and 600 Volt rated, accepts 20-12 AWG solid and 18-12 AWG stranded conductors; box of 100.

Product Information

Standard Information

• Brand: WAGO
• Manufacturer Part Number: 2773-403/K000-0002

Technical Specifications

• Brand: WAGO
• Manufacturer Part Number: 2773-403/K000-0002
• Product Name: Spliccon 3c
• Series: COMPACT PUSHWIRE
• Sub Brand: Pushwire
• Connection Type: Push-In (Pushwire)
• Number of Conductors: 3
• Conductor Range: 20-12 AWG solid, 18-12 AWG stranded
• Amperage: 32 Amp
• Voltage Rating: 600 Volt
• Temperature Rating: 85 degrees C
• Contact Material: Copper
• Insulation Material: Polycarbonate
• Material: Nonmetallic
• Length: 0.732 inch

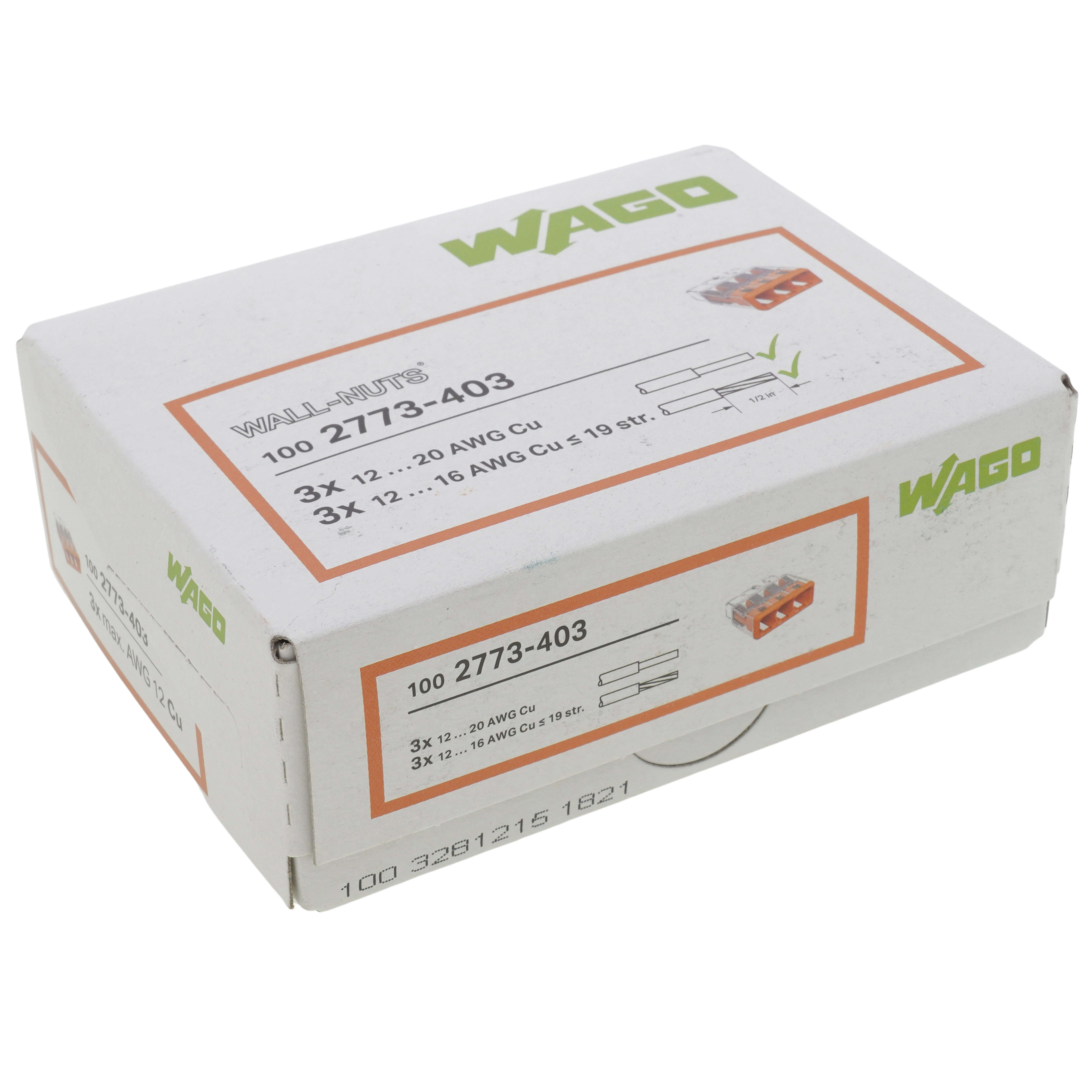

• Pack Quantity: Box of 100 pieces
• Packaging: Box
• Termination: Push-In
• RoHS Status: ROHS3 Compliant
• UPC: 055143927394
• Part Status: Active
