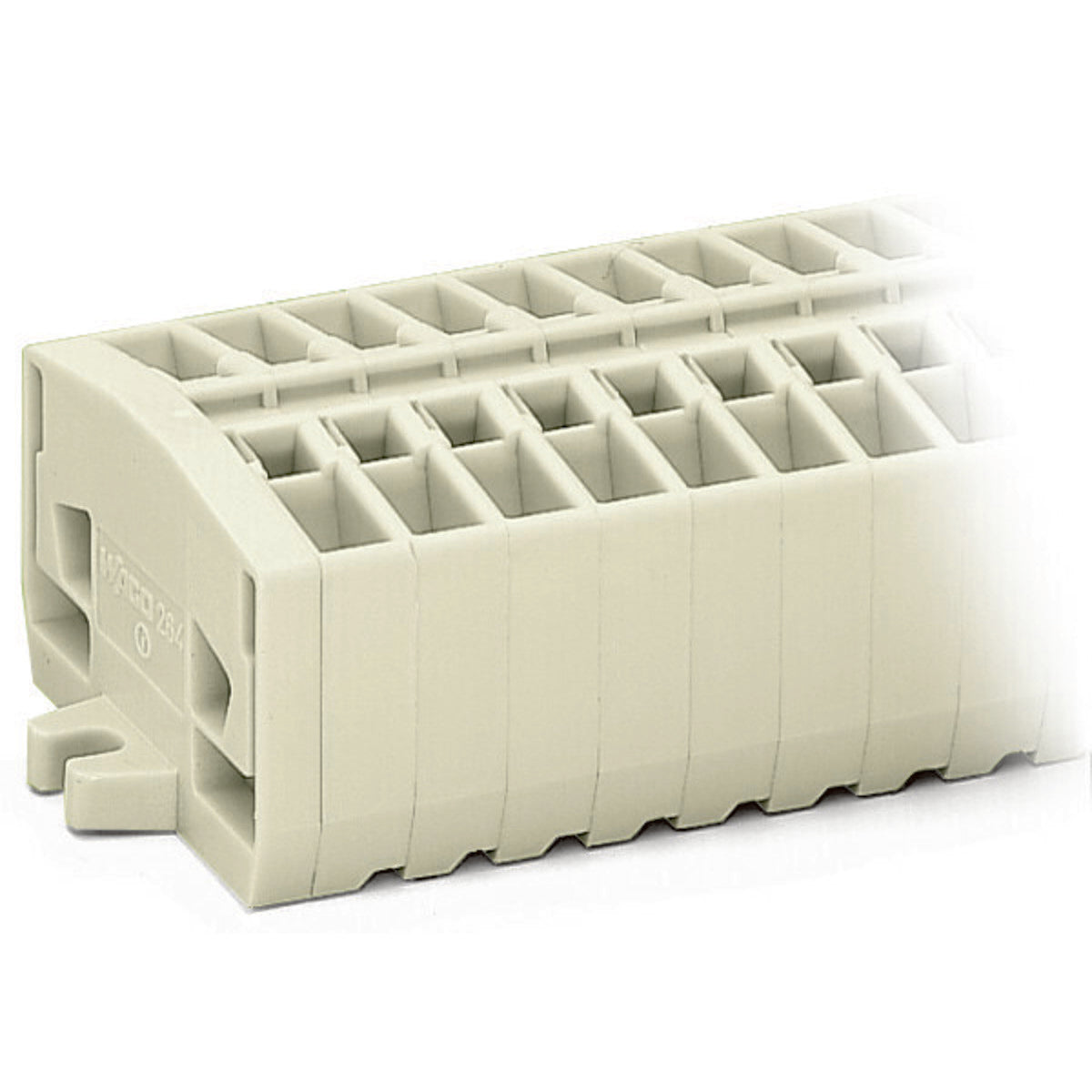

WAGO 264-137 Feed-through Terminal Strip 23A Gray Replacement 264-137

Product Description

Introducing the WAGO 264-137, a high-performance feed-through terminal strip designed for Ex e II applications. This product offers a robust solution for wiring operations requiring a reliable connection.

• Features 7 dual clamps, accommodating 14 wires.
• Supports conductor sizes from 0.08mm² to 2.5mm² (28AWG to 12AWG).
• Includes innovative CAGE-CLAMP spring connections for quick and secure wire termination.

Product Highlights

The terminal strip is built for durability and safety with a light gray polyamide housing. It ensures a steady performance with a rated current of 23A. The compact design with dimensions of 22.1mm height, 58mm width, and 32mm depth, allows for efficient use of space.

Product Information

Standard Information

• Item Type: Terminal strip
• Manufacturer: WAGO
• Country of Origin: Germany

Technical Specifications

• Material: Polyamide (PA66)
• Mounting Type: Flange
• Connection Type: Terminals (Cage-clamp)
• Color: Light gray
• Dimensions: H22.1mm x W58mm x D32mm
• Weight: 28.435 grams
