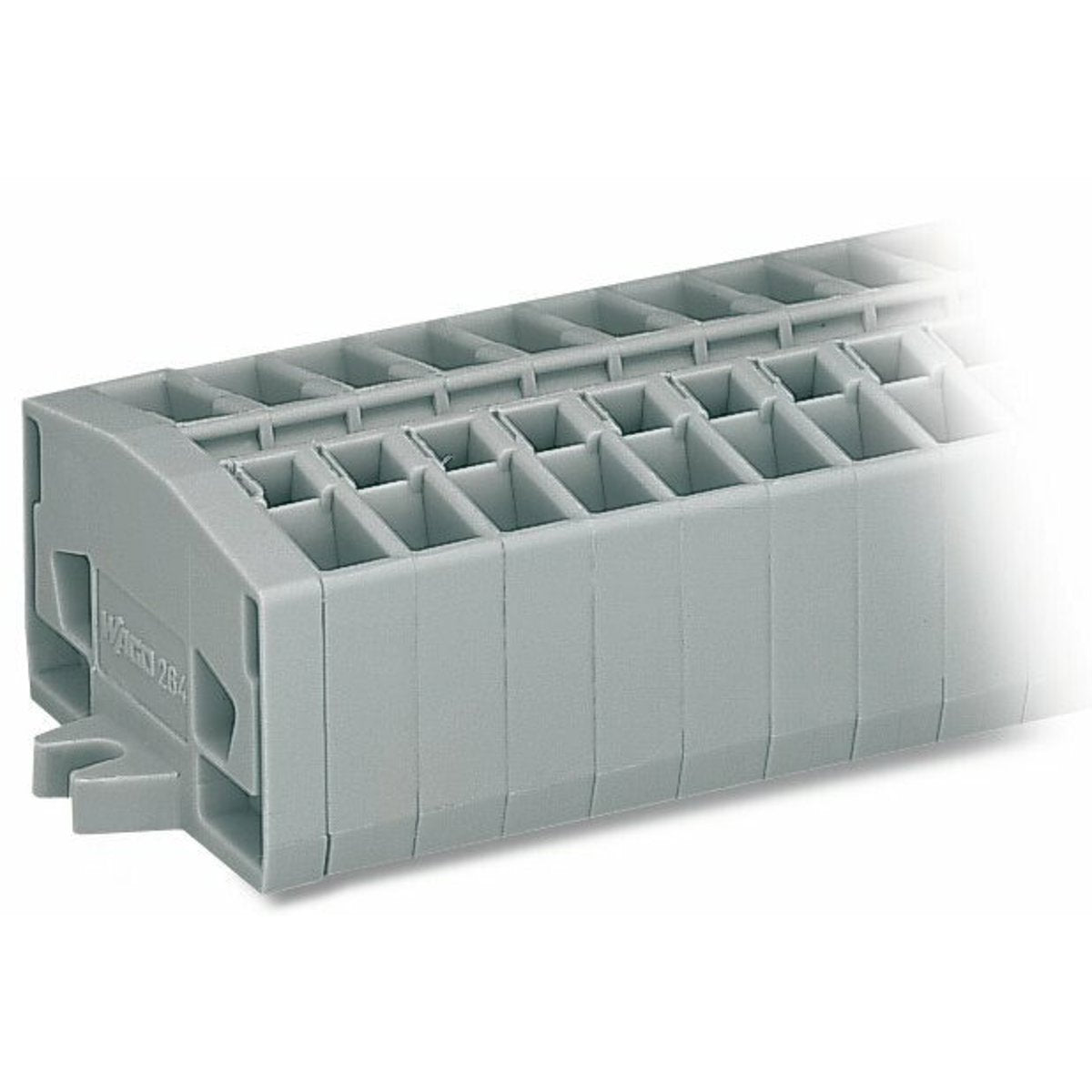

WAGO 264-109 Terminal Strip 24A Gray (32 mm / 1.26 inches) Replacement 264-109

Product Description

The WAGO 264-109 terminal strip is a robust solution for efficient wire management and connections in power distribution applications. Manufactured in Germany, this product is known for its reliability and durability in various industrial environments.

• Features 9 feed-through poles, supporting a conductor range of #28AWG to #12AWG.
• Equipped with innovative CAGE-CLAMP spring connections.
• Rated for a current up to 24A, suitable for high-demand applications.

Product Highlights

This terminal strip's gray color and polyamide (PA66) construction ensure both aesthetic integration and resistance to wear and thermal damage. It's simple mounting via a 3.2mm flange makes installation straightforward and secure.

Product Information

Standard Information

• Brand: WAGO
• MPN: 264-109

Technical Specifications

• Connection Type: Cage-clamp terminals
• Conductor Material: Copper
• Current Rating: 24 A
• Dimensions: H22.1mm x W70mm x D32mm
• Weight: 36.71 grams
• Voltage Rating: 800V
• Color: Gray
• Material: Polyamide (PA66)
