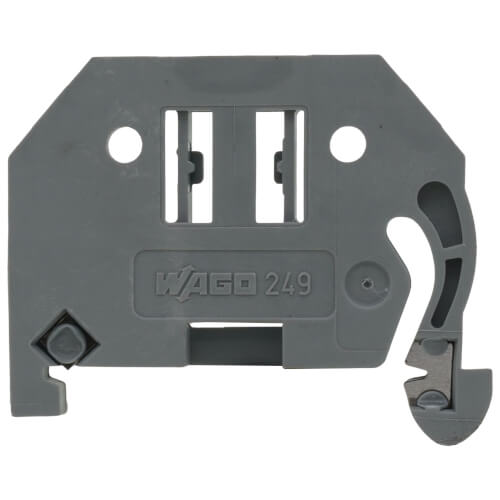

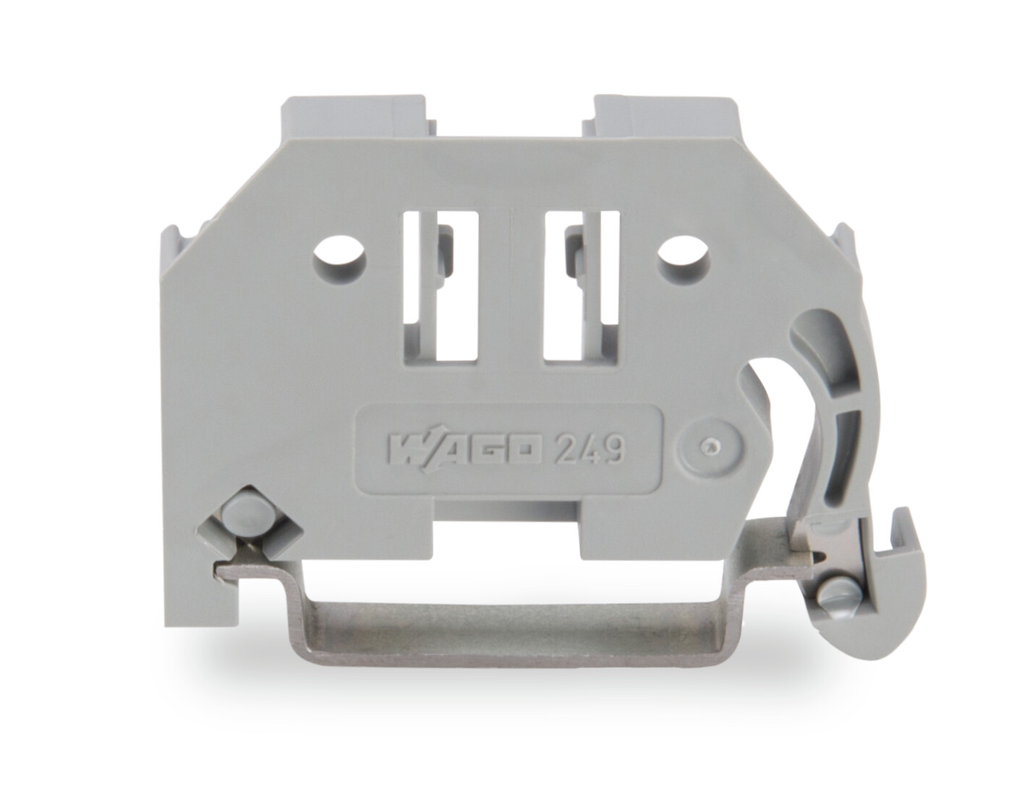

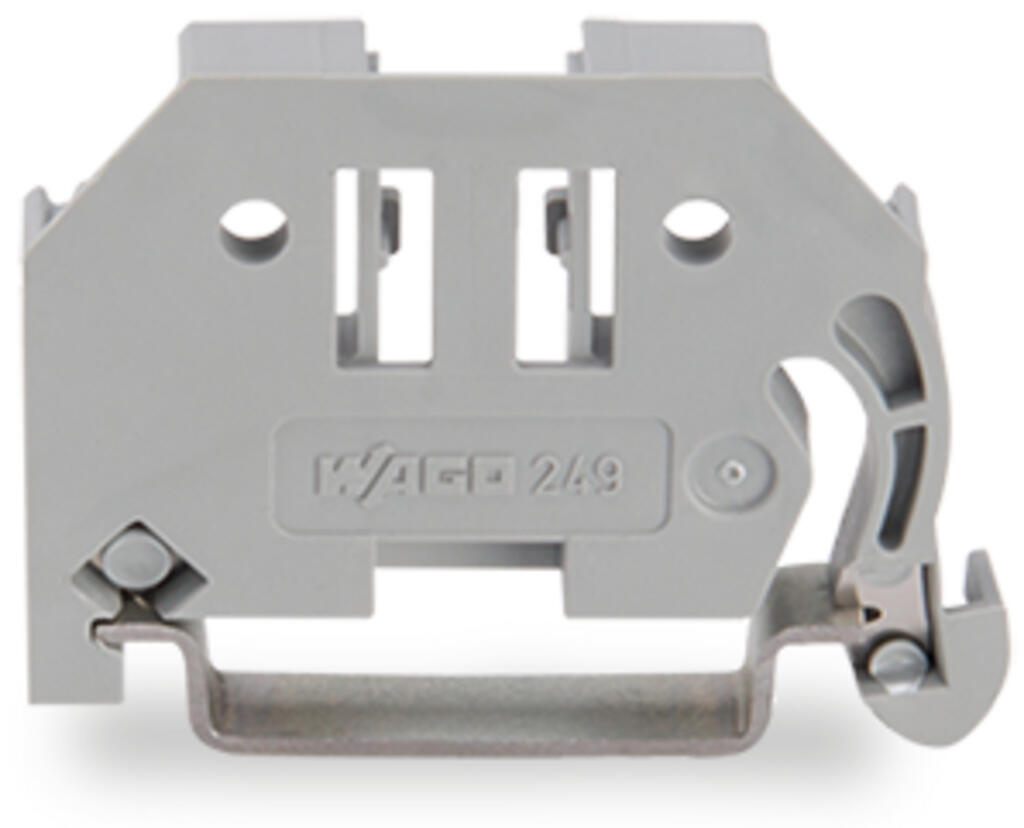

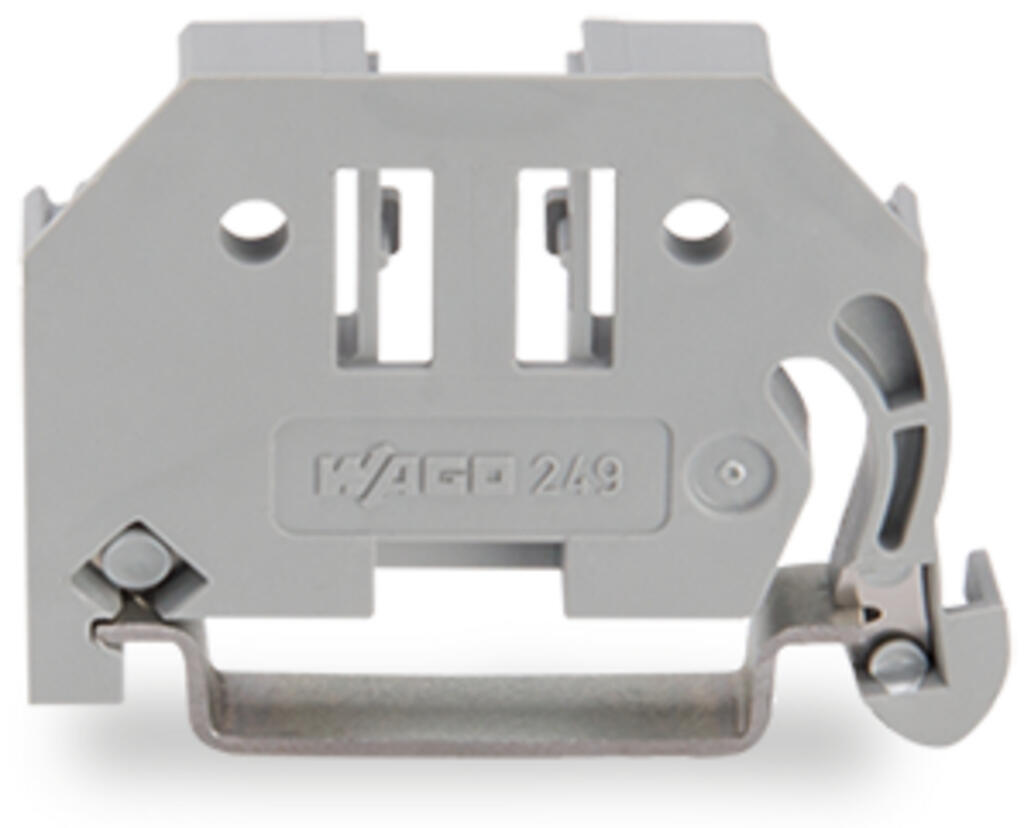

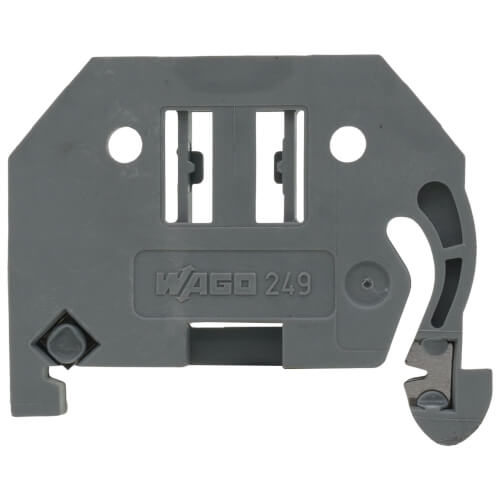

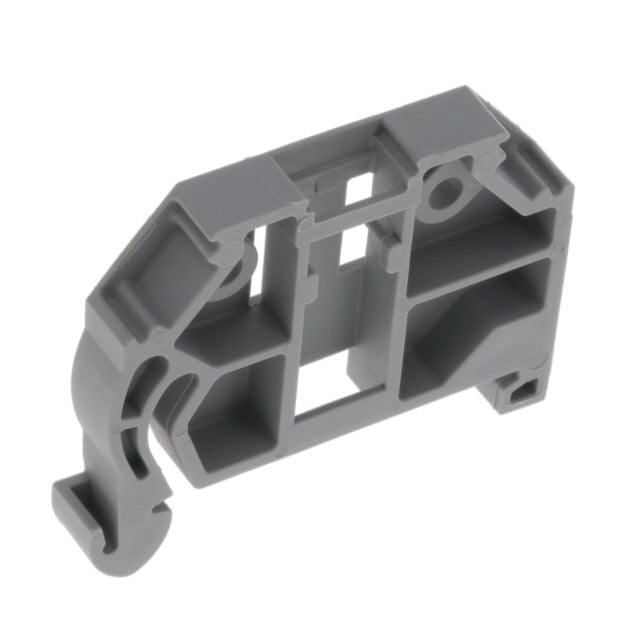

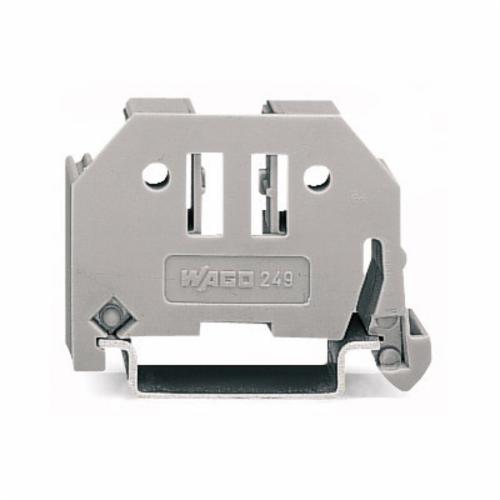

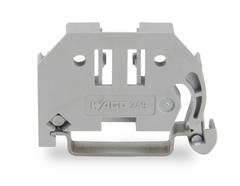

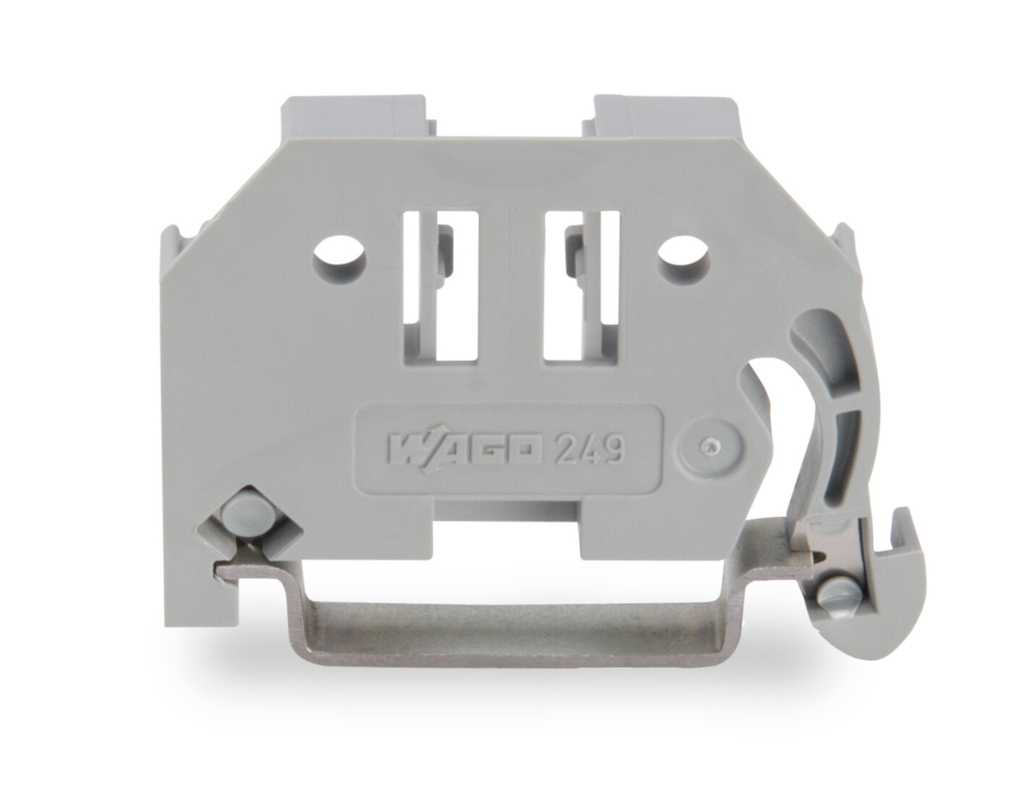

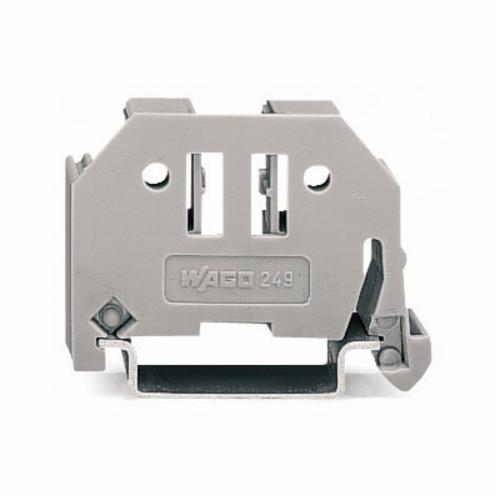

Wago 249-116 Screwless End Stop (6 mm)

Product Description

Wago 249-116 is a screwless end stop designed to secure and separate terminal blocks on DIN-35/TS 35 rails. The 6 mm wide polyamide (PA66) component mounts on 35 x 15 and 35 x 7.5 mm rails, provides UL94 V0 flammability performance, and has approximate dimensions of 6 mm x 44 mm x 35 mm (W x H x D) with a weight of about 3.46 g. It is compatible with Wago 249 series terminal block assemblies.

• Screwless snap-on design for mounting to DIN-35 / TS 35 rails
• 6 mm width; dimensions ~6 mm (W) x 44 mm (H) x 35 mm (D); depth from upper-edge ~28 mm
• Polyamide (PA66) construction with UL94 V0 flammability rating; fire load ~0.104 MJ; weight ~3.46 g

Product Highlights

6 mm screwless DIN-rail end stop for 35 x 15 and 35 x 7.5 mm rails; polyamide PA66; UL94 V0

Product Information

Standard Information

• Brand: WAGO
• Manufacturer Part Number: 249-116
• Country of Origin: China

Technical Specifications

• Brand: Wago
• Manufacturer Part Number: 249-116
• Product Type: Screwless end stop
• Series: 249
• Width: 6 mm / 0.236 in
• Height: 44 mm / 1.732 in
• Depth: 35 mm / 1.378 in
• Depth from upper-edge of DIN-rail: 28 mm / 1.102 in
• Compatible Rail Sizes: 35 x 15 mm and 35 x 7.5 mm DIN-rail
• Mounting Type: DIN-35 / TS 35 rail
• Mounting Standard: DIN EN 50022
• Insulation Material: Polyamide (PA66)
• Material: Polyamide (PA66)
• Flammability Rating: UL94 V0
• Fire Load: 0.104 MJ
• Weight: 3.46 g
• For Use With: 249 series DIN 35 rail terminal blocks
• GTIN / EAN: 4017332270823
• UPC: 04491800066
• Country of Origin: China
• RoHS Compliance: RoHS3 compliant
• Part Status: Active
