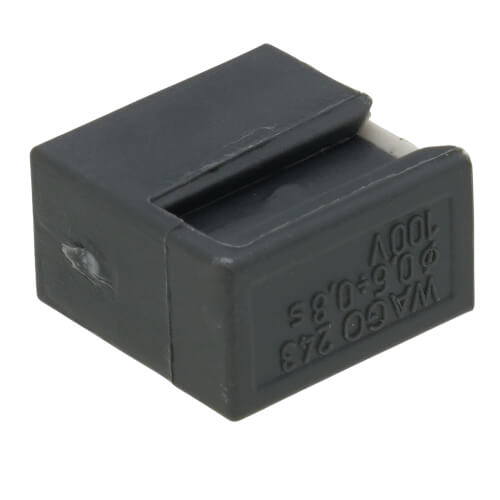

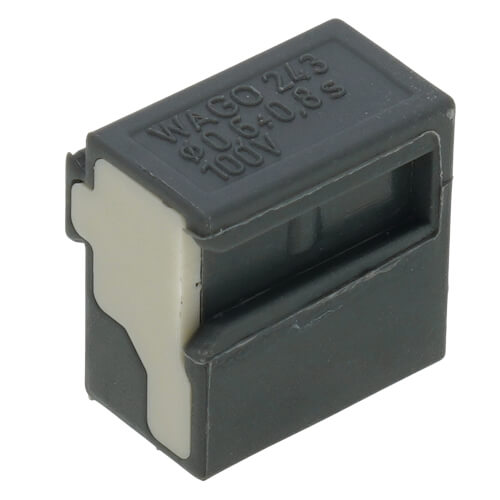

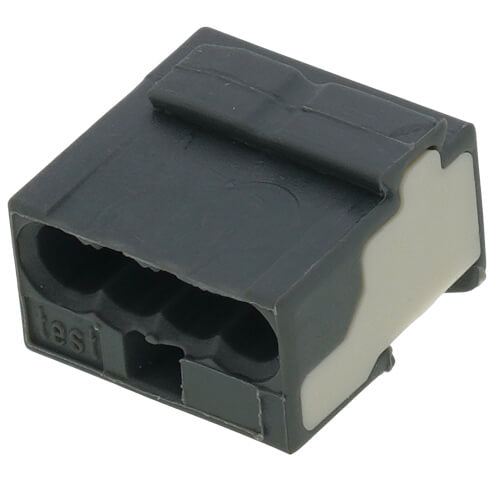

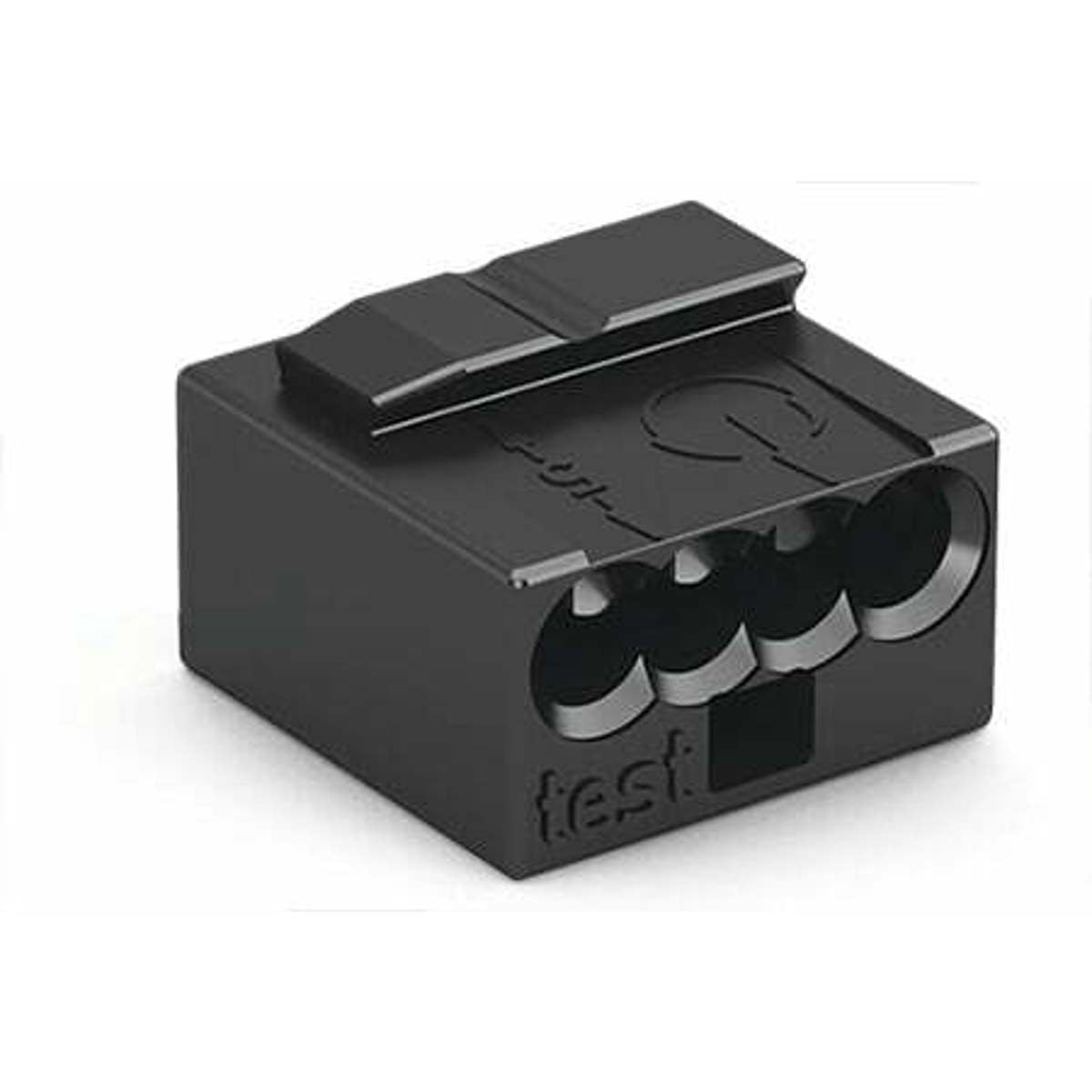

WAGO 243-204 Micro Push Wire Connector for Junction Boxes 22-18 AWG - 4 Ports - Dark Gray

Product Description

The WAGO 243-204 Micro Push Wire Connector is designed for quick and reliable wiring in junction boxes. This compact connector is suitable for solid conductors with a diameter range between 0.6mm and 0.8mm, accommodating 22 to 18 AWG wires. Its dark gray housing is not only robust but also provides excellent visibility in dense wiring environments.

• Engineered for solid conductors ranging from 22 to 18 AWG.
• Equipped with WAGO's innovative PUSH WIRE technology for easy push-in connection.
• Maximum operating temperature of 105 degrees Celsius, ensuring durability under high heat.

Product Highlights

Utilizes a push-in actuator type for easy and secure wire connection without the need of tools. Designed and manufactured by WAGO in Germany, this connector upholds stringent quality standards.

Product Information

Standard Information

• Catalog Number: 243-204
• Brand: WAGO
• Color: dark gray
• Connection: Terminals (Spring)

Technical Specifications

• Depth: 10 mm / 0.394 inches
• Width: 0.394 inches
• Height: 6.8 mm / 0.268 inches
• Weight: 0.76 grams
• Operating Temperature: 105inchu00b0C
• Voltage Rating: 100 V
• Current Rating: 6 A
• RoHS Indicator: Yes
