WAGO 231-112/037-000 1-Conductor Female Connector CAGE CLAMP 2.5 mm Pin Spacing 12-Pole

Product Description

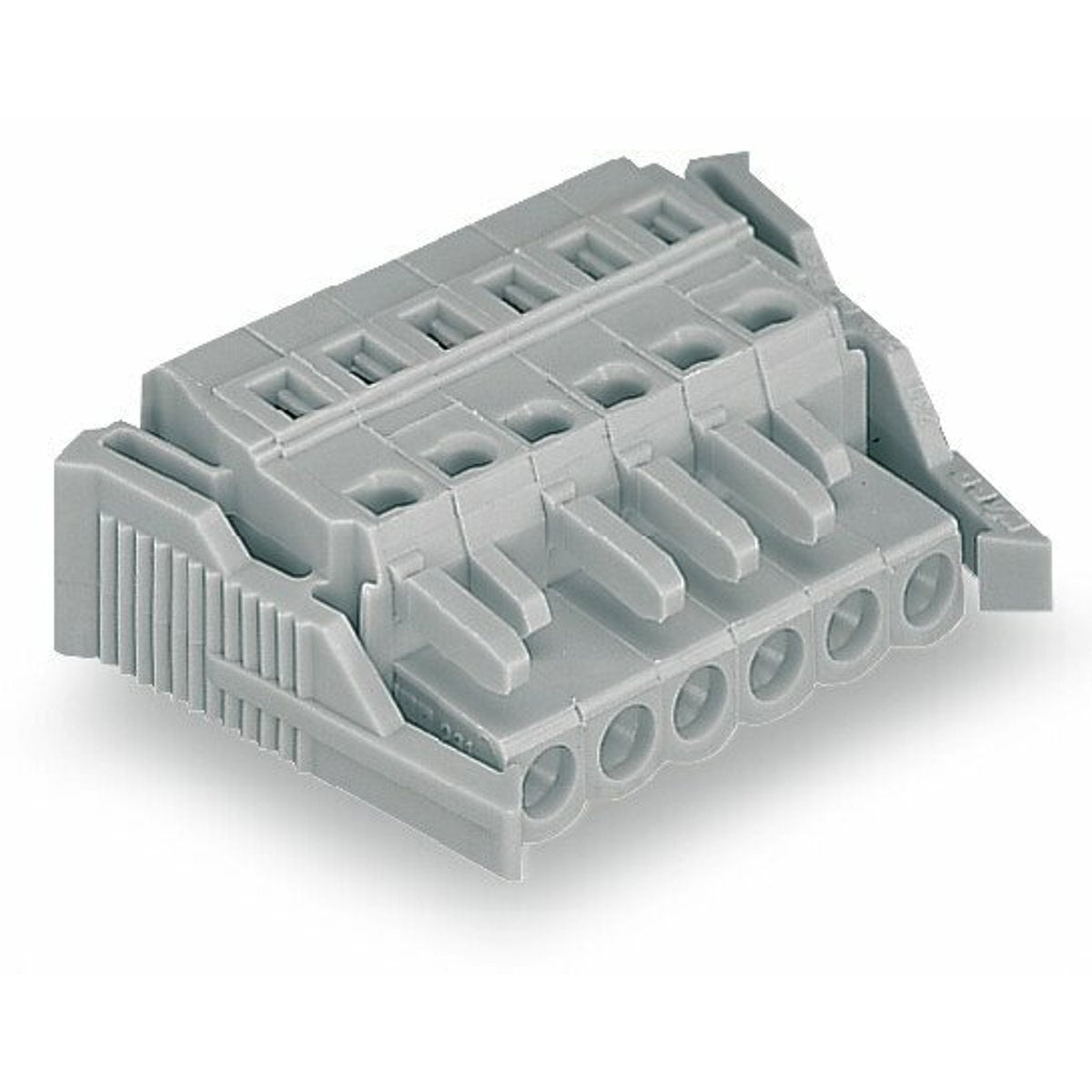

The WAGO 231-112/037-000 is a 1-conductor female connector with a cage clamp design. This connector features a pin spacing of 2.5 mm and accommodates a conductor range between twelve to twenty-eight AWG. Ideal for a variety of electrical connections, it is built for ease of use with lateral locking levers that provide secure connections.

• Compatible with 12-28 AWG conductor range
• Rated for a maximum current of 16 A
• Constructed from durable polyamide material

Product Highlights

This female connector is suitable for reliable electrical connections in various applications. Its cage clamp mechanism ensures strong grip on wires, making it a preferred choice among professionals.

Product Information

Standard Information

• Brand: WAGO
• Catalog Number: 231-112/037-000

Technical Specifications

• Color: Gray
• Material: Polyamide (PA66)
• Current Rating: 16 A
• Voltage Rating: 320 V
• Country of Origin: Germany
• Actuator: Operating tool
• Conductor Range: 12-28 AWG
• Width: 3.016 inches
• Height: 14.3 mm / 0.563 inches
• Depth: 29.6 mm / 1.165 inches
• Weight: 22.58 grams
• RoHS Indicator: Yes
