Wago 224-101 Lighting connector 24 A (1-2.5 mm2)

Product Description

Wago 224-101 is a lighting connector that provides push-in spring termination for conductors from 1 to 2.5 mm2 (approximately AWG 14�12) and is rated for 24 A at 400 V. The compact two-connection-point design supports solid, stranded and fine-stranded copper conductors, continuous operating temperature up to 105 �C, and a rated impulse voltage of 4 kV. Typical use cases include lighting fixture and power-supply connections.

• Push-in (push wire) spring connection for 1�2.5 mm2 conductors (approx. AWG 14�12)
• Rated current 24 A, nominal voltage 400 V, rated impulse voltage 4 kV; continuous operating temperature up to 105 �C
• Compact 2-connection-point, 1-pole design suitable for solid, stranded and fine-stranded copper conductors; strip length 9�11 mm

Product Highlights

Compact 1-pole lighting connector with push-in termination; supports 1�2.5 mm2 conductors; 24 A, 400 V, 4 kV impulse; continuous operation to 105 �C.

Product Information

Standard Information

• Brand: WAGO
• Manufacturer Part Number: 224-101
• Country of Origin: Switzerland

Technical Specifications

• Brand: WAGO
• Manufacturer Part Number: 224-101
• Series: 224
• Product Type: Lighting connector / Fixture connector
• Poles: 1-pole
• Number of Connection Points: 2
• Number of Potentials: 1
• Connection Type (installation side): Push-in (push wire) spring connection
• Conductor Range (mm2): 1 - 2.5
• Conductor Range (AWG): 14 - 12
• Strip Length: 9 - 11 mm
• Rated Current: 24 A
• Nominal Voltage: 400 V
• Rated Impulse Voltage: 4 kV
• Pollution Degree: 2
• Continuous Operating Temperature (max): 105 �C

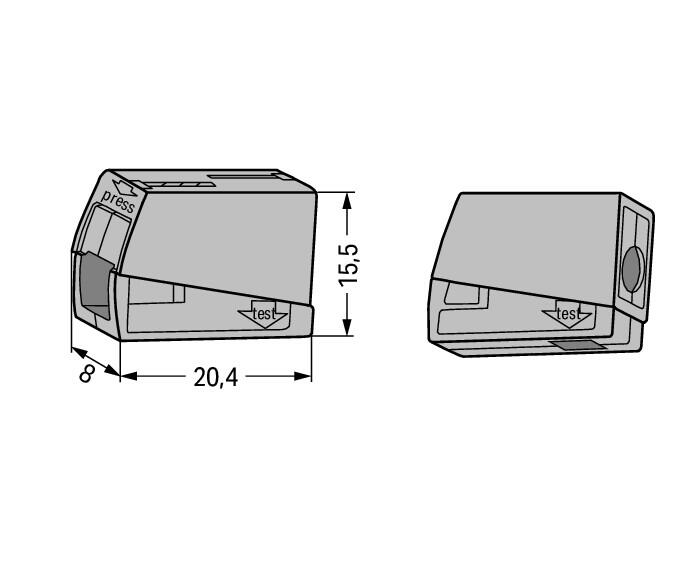

• Dimensions (H x W x D): 15.5 mm x 8 mm x 20.4 mm
• Weight (declared): 1.778 g
• RoHS Compliant: Yes
• Country of Origin: Switzerland
