Product Description

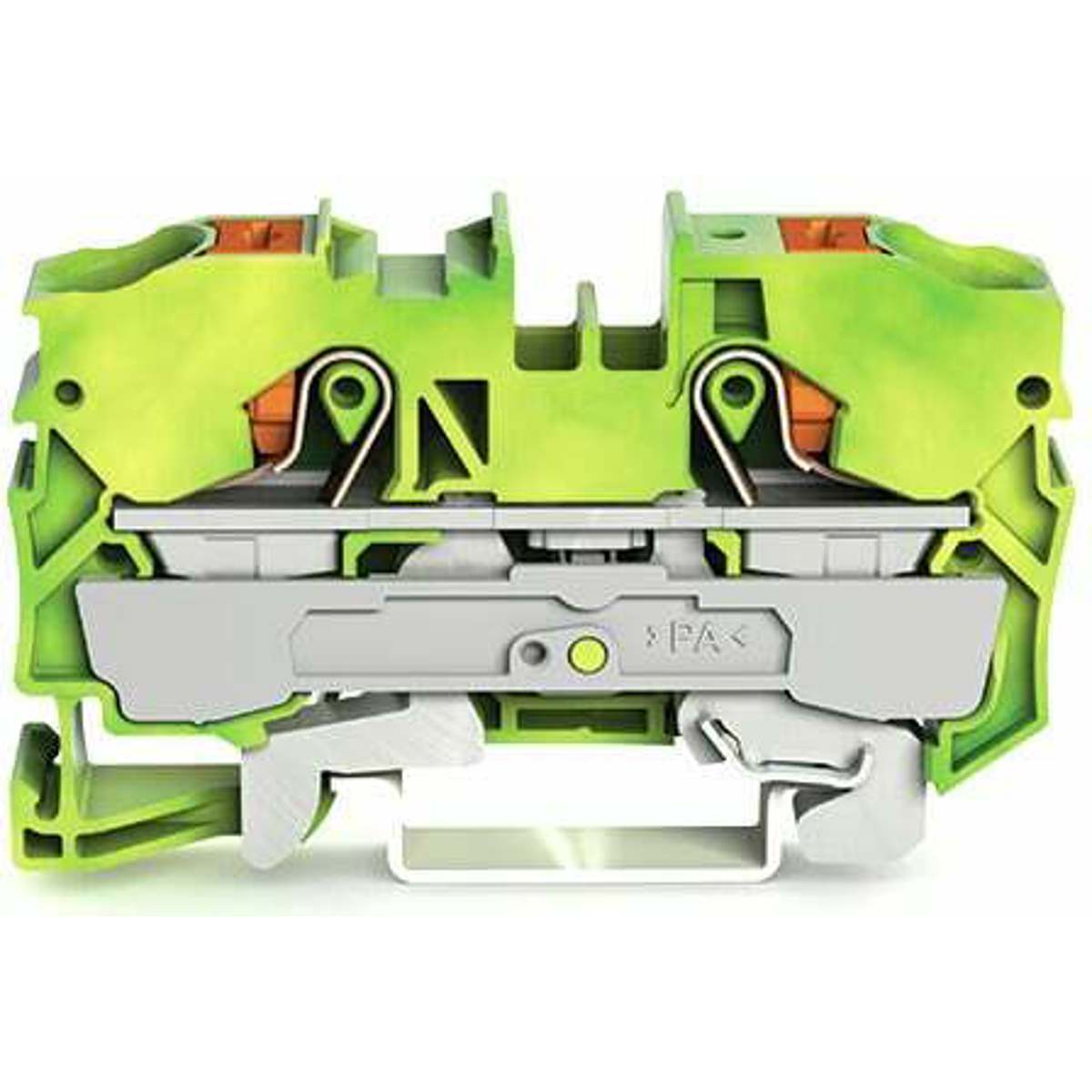

The WAGO 2210-1207 Ground/Earthing Terminal Block is designed for reliable electrical connections. This terminal block features a push-button actuator and is suitable for two wires with a nominal cross-section of ten square millimeters. It supports conductor sizes from zero point five square millimeters to sixteen square millimeters, accommodating wires ranging from twenty AWG to six AWG. The green-yellow color aids in identification and safety.
- Push-in connections for easy wire insertion
- Test port for quick testing and verification
- DIN rail mounting for straightforward installation
Product Highlights
The terminal block includes a test port and conforms to RoHS standards. It features a durable polyamide construction and can securely mount on standard DIN rails.
Product Information
Standard Information
-
Catalog Number: 2210-1207
-
Manufacturer: WAGO
Technical Specifications
-
Color: Green-yellow
-
Conductor Material: Copper
-
Conductor Range: 6-20 AWG
-
Connection: Terminals (Cage-clamp)
-
Material: Polyamide (PA66)
-
Mounting: DIN Rail
-
RoHS Indicator: Yes
-
Dimensions: H67.6mm x W10mm x D36.9mm
