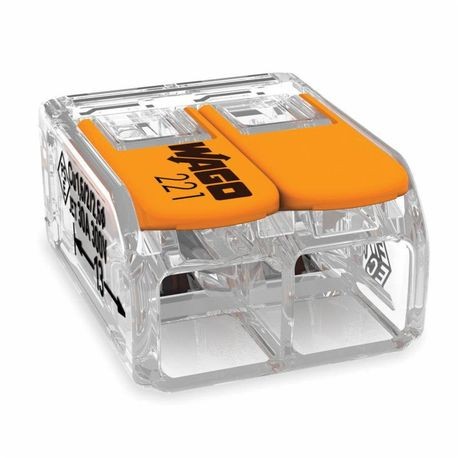

WAGO 221-612 Splicing Connector with Operating Lever 600 VAC 30 A 50 Piece Box

Product Description

The WAGO 221-612 is a splicing connector designed for use with wire sizes ranging from twenty to ten AWG. This connector operates at a voltage rating of six hundred VAC and has a current rating of thirty A. It comes in a box containing fifty pieces, making it suitable for larger installation projects.

• Compatible with solid, stranded, and fine-stranded conductors
• Easy to use lever actuation for quick termination
• UL approved for safety and reliability

Product Highlights

This product offers efficient connections for electrical installations, saving time and enhancing reliability.

Product Information

Standard Information

• Brand: WAGO Corporation
• MPN: 221-612

Technical Specifications

• Voltage Rating: 600 VAC
• Amperage Rating: 30 A
• Wire Size: 20 to 10 AWG
• Number of Poles: 2
• Wire Strip Length: 0.47 to 0.55 inches
• Temperature Rating: 85 degrees C
• Dimensions: 0.63 inches wide x 0.398 inches high x 0.831 inches deep
• Material: Copper
• Connection Type: CAGE Clamp
• Series: 221
