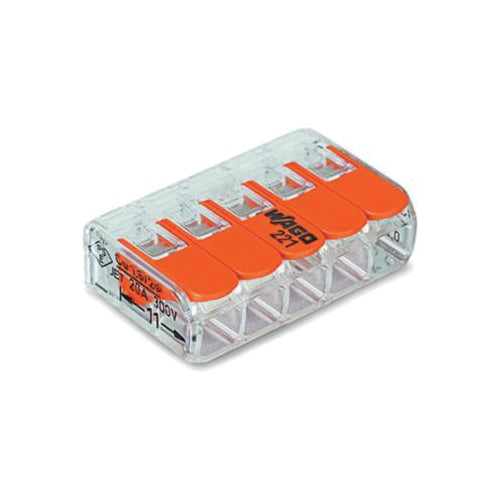

WAGO 221-415 Splicing Connector with Operating Lever 24-12 AWG 600 VAC 20 A 5 Poles

Product Description

WAGO 221-415 is a splicing connector designed for use with 24 to 12 AWG conductors. This connector is rated for 600 VAC and 20 A. It features a transparent housing with an orange actuator. Each box contains twenty-five pieces.

• Simple lever operation for easy termination of conductors
• CAGE CLAMP connection technology for secure connections
• Compatible with solid, stranded, and fine-stranded conductors

Product Highlights

The WAGO 221-415 connector simplifies electrical connections. It is ideal for installers and device manufacturers seeking reliable and fast connections.

Product Information

Standard Information

• Brand: WAGO
• MPN: 221-415

Technical Specifications

• Voltage Rating: 600 VAC
• Amperage Rating: 20 A
• Number of Poles: 5
• Wire Size: 12 AWG
• Wire Strip Length: 0.43 inches
• Temperature Rating: 85 degrees C
• Connection Type: CAGE Clamp
• Dimensions: 0.327 inches Height x 0.732 inches Width x 1.181 inches Depth
