Wago 221-415/K194-4045 terminal butt splice, closed end, individual openings connector push in 12-24 AWG

Product Description

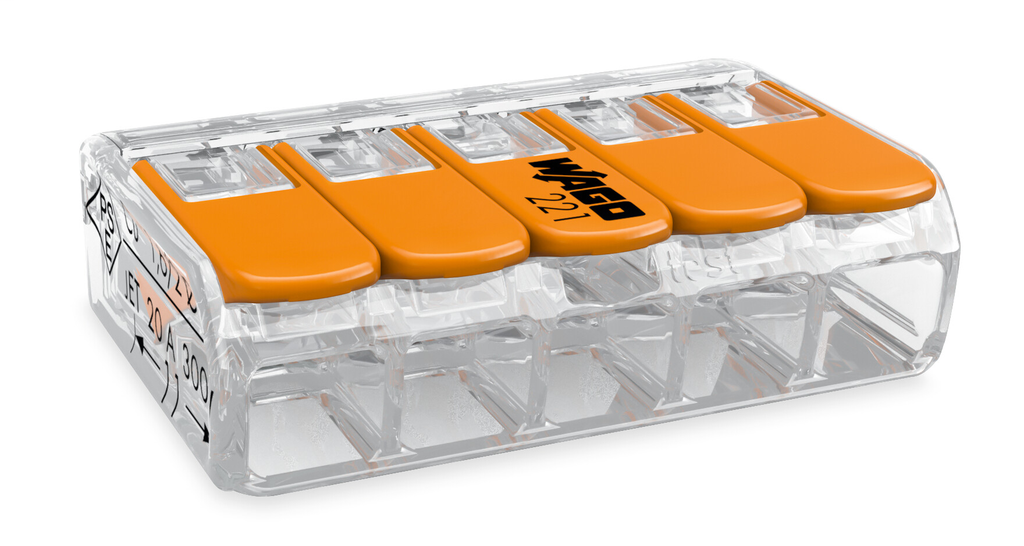

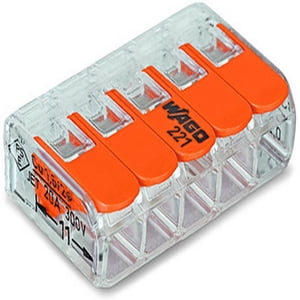

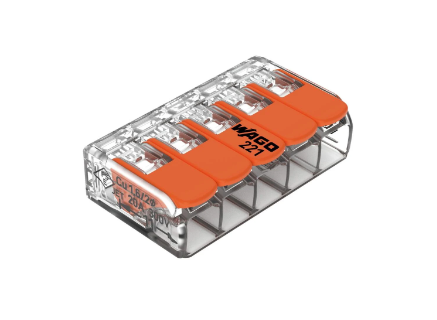

The WAGO 221-415/K194-4045 is a terminal butt splice, closed end, individual openings connector. This 5-conductor connector features convenient operating levers, allowing for easy installation without the need for any tools. Suitable for wire sizes from 12 to 24 AWG and is housed in a durable and transparent casing.

• Releasable
• Splicing Connector
• 5-Conductor with Operating Levers

Product Highlights

The WAGO 221-415/K194-4045 ensures reliable performance in any application. Upgrade your wire connections with this essential component from the 221 LEVER-NUTS series.

Product Information

Standard Information

• Brand: WAGO
• Manufacturer Part Number: 221-415/K194-4045

Technical Specifications

• Category: Connectors, Interconnects
• Terminals: Wire Splice Connectors
• Number of Wire Entries: 5
• Manufacturer: WAGO Corporation
• Termination: Push In
• Series: 221 LEVER-NUTS
• Wire Gauge: 12-24 AWG
• Packaging: Bulk
• Insulation: Fully Insulated
• Part Status: Active
• Features: Releasable
• Terminal Type: Butt Splice, Closed End, Individual Openings
• Number of Ports: 5
• Maximum Wire Size: 12 AWG
• Minimum Wire Size: 24 AWG
• Brand: Wago
• Part Number #: 221-415/K194-4045
• Type: 5-Conductor
• UNSPSC: 39121421
• Standards: RoHS Compliant
• Volts AC: 400
