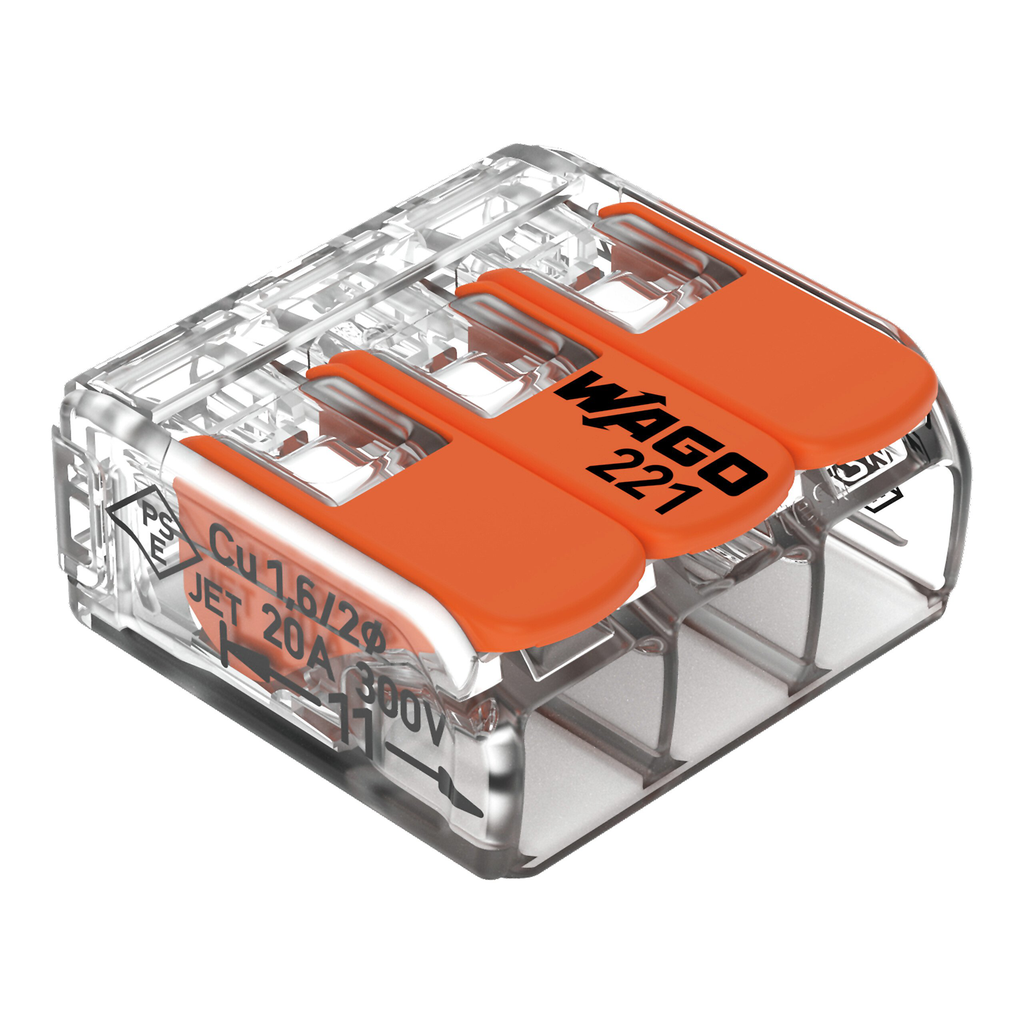

Wago 221-413/K194-4045 3-conductor connector with levers, 600 VAC, 24 to 12 AWG

Product Description

The WAGO 221-413/K194-4045 LEVER-NUTS splicing connector sets new standards in electrical installation. This user-friendly connector is designed for larger conductors, allowing for faster and more reliable connections of solid, stranded, and flexible copper wires. It is rated for 600 VAC and accepts conductors from 24 to 12 AWG.

• Smaller design
• More user-friendly
• Made for larger conductor

Product Highlights

The WAGO 221-413/K194-4045 offers a compact, reliable solution for connecting a range of copper wires in electrical installations.

Product Information

Standard Information

• Brand: WAGO
• Manufacturer Part Number: 221-413/K194-4045
• Country of Origin: UKN

Technical Specifications

• Type: Push-In Wire Connector
• Depth: 0.38 Inches
• Height: 0.33 Inches
• Material: Plastic
• Insulated: No
• Connection: Push-In
• Conductor Range: 24 to 12 AWG
• Environmental Conditions: Dry Location
• Amperage: 20 Amp
• Applications: For All Types of Conductors
• Conductor Size: 24-12 AWG
• Strip Length: 0.43 in
• Temperature Rating: 105 degrees C
• Voltage: 600 Volt
• Brand: Wago
• Sub Brand: Lever-Nuts™
