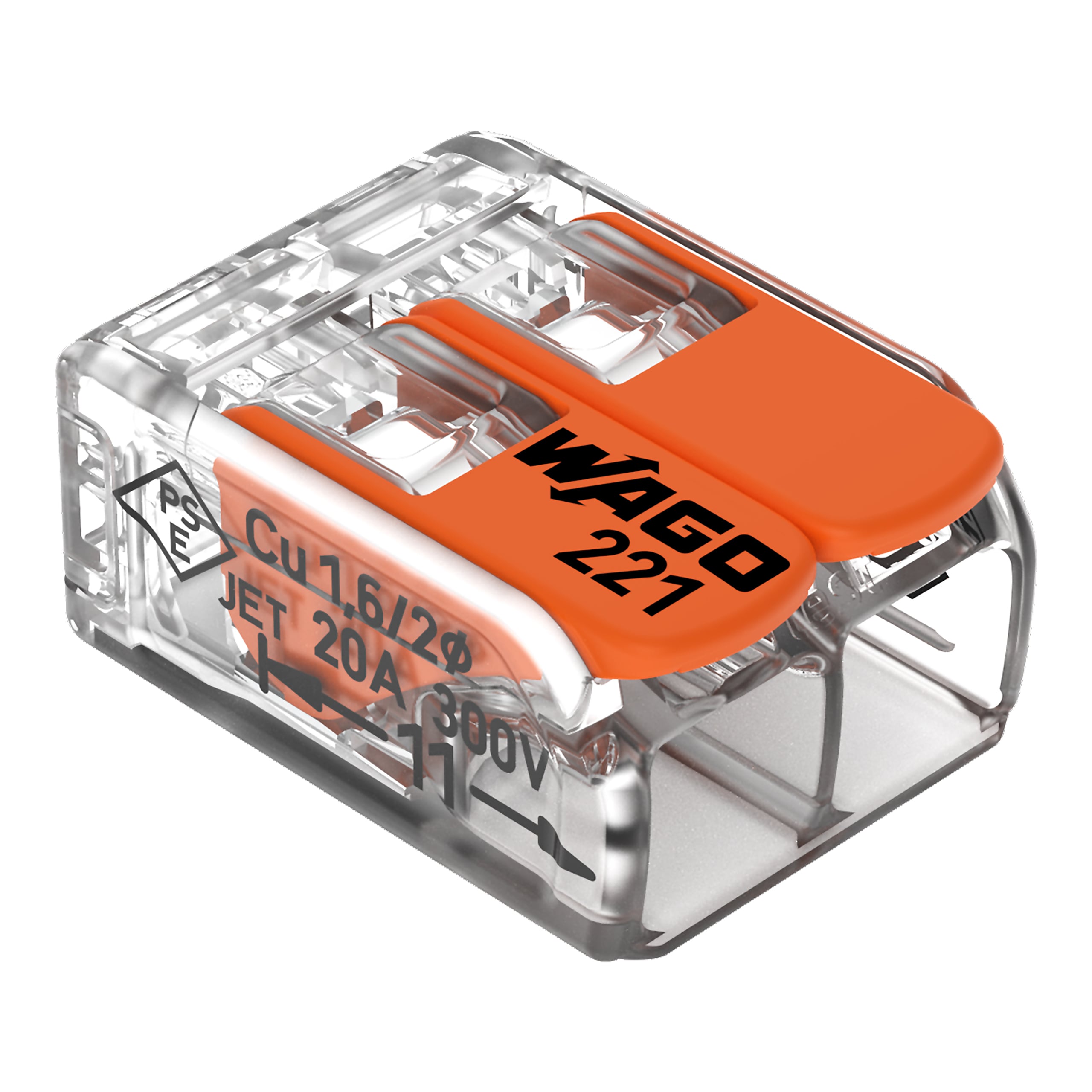

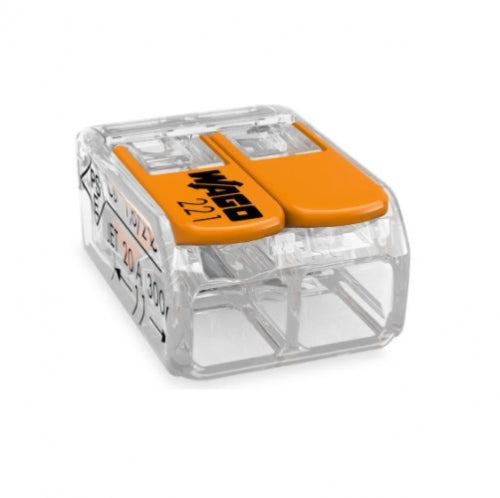

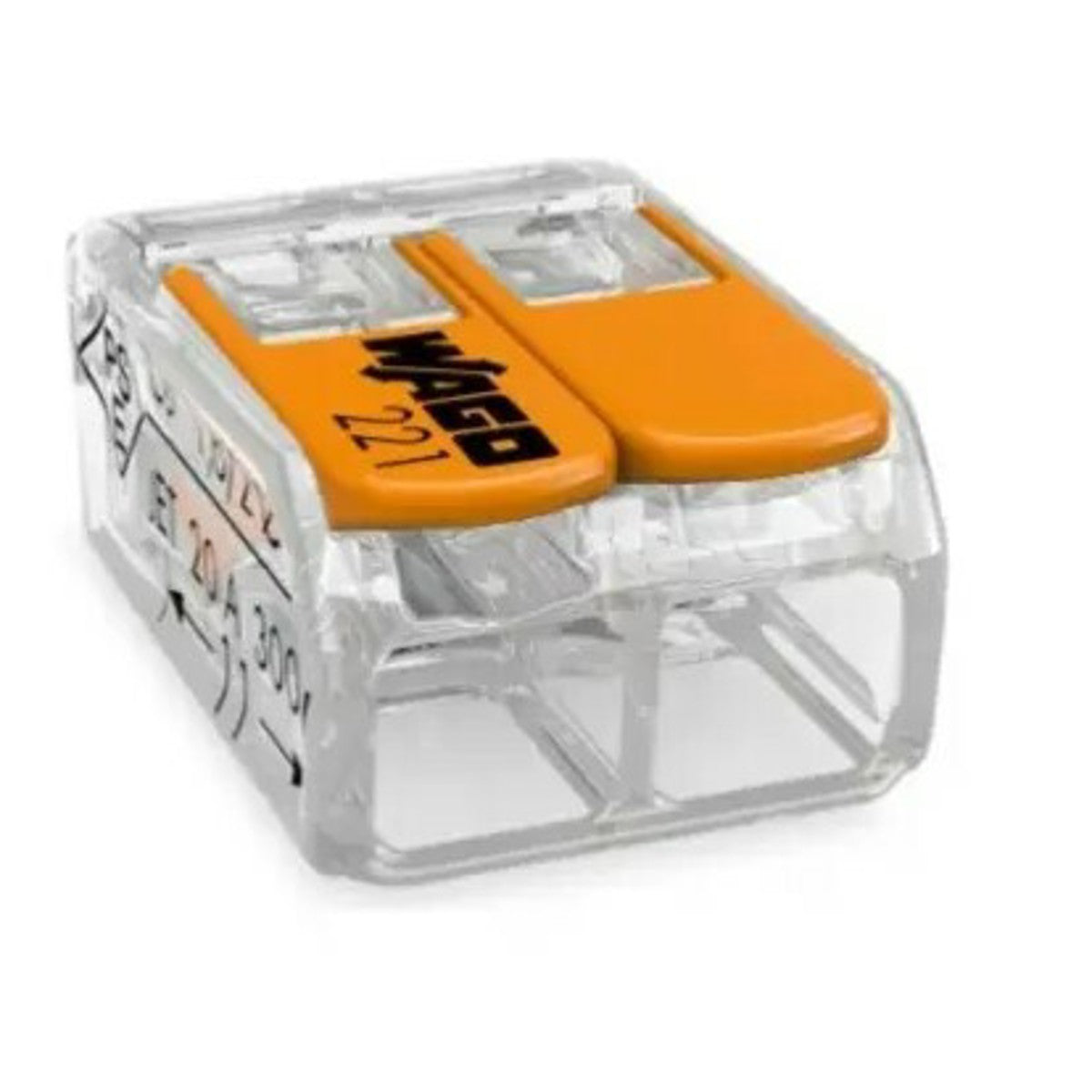

Wago 221-412/K194-4045/000-100 Lever-nuts splicing connector 24-12 AWG (550 pack)

Product Description

WAGO 221-412/K194-4045/000-100 is a Wago lever-nuts splicing connector for two conductors supplied in a jar of 550 pieces. It accepts 24�12 AWG (0.14�4 mm2) solid, stranded and fine-stranded copper conductors and uses a lever-actuated cage-clamp connection with side-entry wiring and an 11 mm strip length. The transparent housing provides visual inspection and the connector is RoHS compliant and cUL/UL listed.

• Two-conductor lever-actuated splicing connector with push-in/cage-clamp termination
• Accepts 24�12 AWG (0.14�4 mm2) solid, stranded and fine-stranded copper conductors; 11 mm strip length
• Rated to 600 V/20 A (UL) and 450 V/32 A (IEC); supplied in a 550-piece jar; transparent, fully insulated housing

Product Highlights

2-conductor lever-nut; accepts 24�12 AWG; 11 mm strip length; cage-clamp connection; 550 pieces per jar; RoHS and cUL/UL listed

Product Information

Standard Information

• Brand: WAGO
• Manufacturer Part Number: 221-412/K194-4045/000-100
• Country of Origin: Germany

Technical Specifications

• Brand: WAGO
• Manufacturer Part Number: 221-412/K194-4045/000-100
• Series: 221 LEVER-NUTS
• Product Type: Compact two-conductor splicing connector (Lever-nut)
• Number of Wire Entries: 2
• Wire Gauge: 24-12 AWG
• Wire Sizes - Solid: 0.2..4 mm (24..12 AWG)
• Wire Sizes - Stranded: 0.2..4 mm (24..12 AWG)
• Wire Sizes - Fine-Stranded: 0.14..4 mm (24..12 AWG)
• Nominal Cross-Section: 4 mm2
• Strip Length: 11 mm
• Wiring Type: Side-entry
• Connection Technology: CAGE CLAMP (lever-actuated)
• Actuation Type: Lever
• Termination: Push-in / cage-clamp
• Terminal Type: Butt splice, closed end, individual openings
• Insulation: Fully insulated
• Housing Material / Feature: Transparent housing for visual inspection
• Connectable Conductor Material: Copper
• Voltage Rating (UL): 600 V
• Current Rating (UL): 20 A
• Voltage Rating (IEC): 450 V
• Rated Surge Voltage (IEC): 4 kV
• Current Rating (IEC): 32 A
• Quantity: 550 per jar
• Packaging: Jar / Bulk
• Country of Origin: Germany
• Certifications: cUL/UL Listed
• RoHS Status: RoHS compliant
• REACH Status: REACH Unaffected
• GTIN / UPC: 04055143697651 / 4055143697651
• Product Dimensions: 8.30 mm x 13.10 mm x 18.60 mm
• Weight: 33.9900264 ounces
• Connection Points: 2
