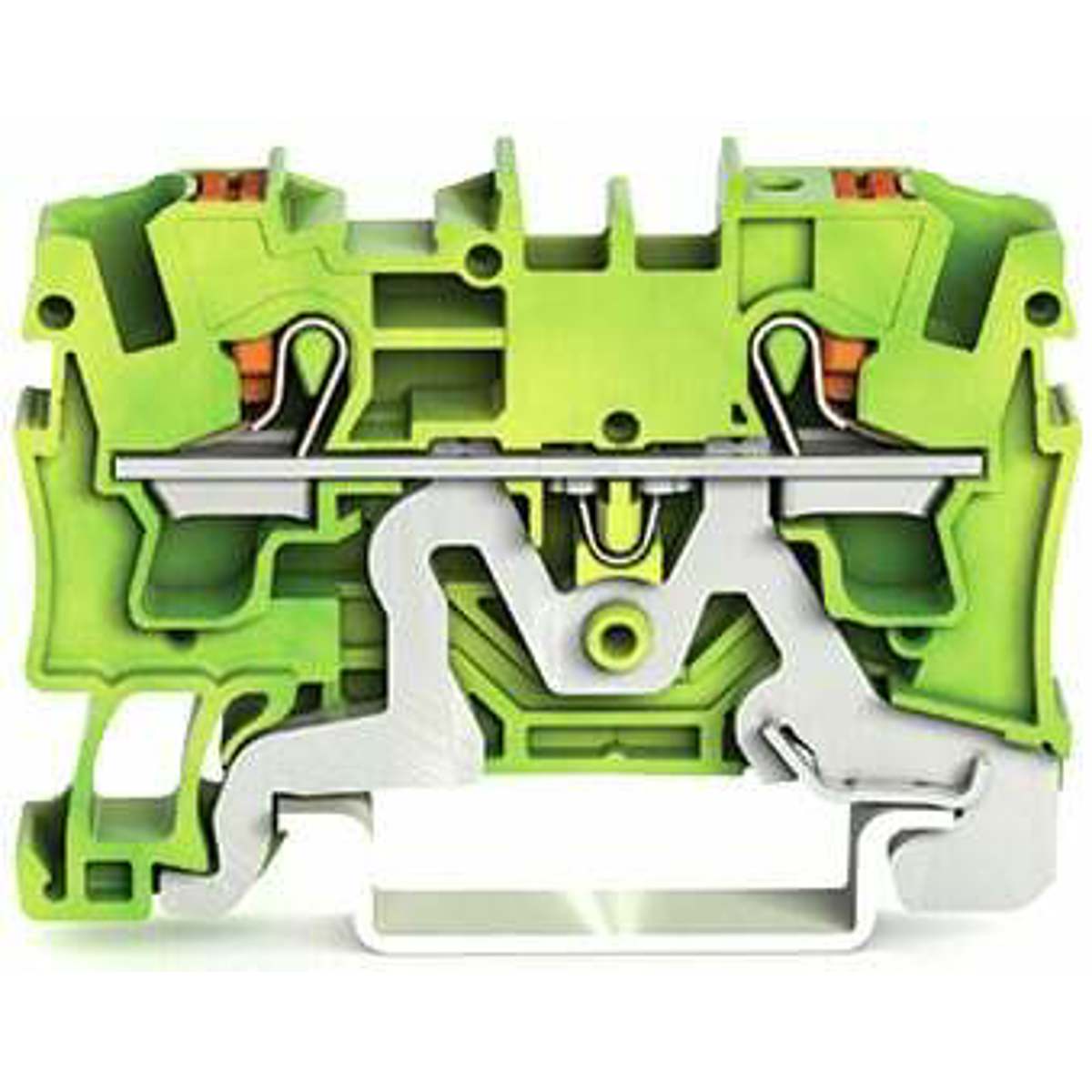

WAGO 2204-1207 Ground/Earthing Terminal Block Green-Yellow Push-in Connection

Product Description

The WAGO 2204-1207 is a robust ground/earthing terminal block designed for efficient and reliable electrical connections. Manufactured in Germany, this terminal block is part of the TOPJOB S series, ensuring top-quality performance in power distribution and protection.

• Easy wiring with push-in CAGE CLAMP spring connections
• Supports conductor range from 20AWG to 10AWG
• Mountable on DIN-35 rail for secure installation

Product Highlights

This terminal block features a green-yellow color coding for clear identification of protective earth connections. The inclusion of a test port enhances its functionality, allowing for easy verification of the connection integrity. Its compact design with dimensions of H52.3mm x W6.2mm x D32.9mm facilitates use in restricted spaces.

Product Information

Technical Specifications

• Connection Type: Terminals (Cage-clamp)
• Material: Polyamide (PA66)
• Mounting Style: Din Rail
• Conductor Material: Copper
• RoHS Compliant: Yes
• Width: 0.244 inches
• Height: 2.059 inches
• Weight: 12.712 grams
