WAGO 2202-2708 Terminal Block Double-Deck Push-In 24A Replacement

Product Description

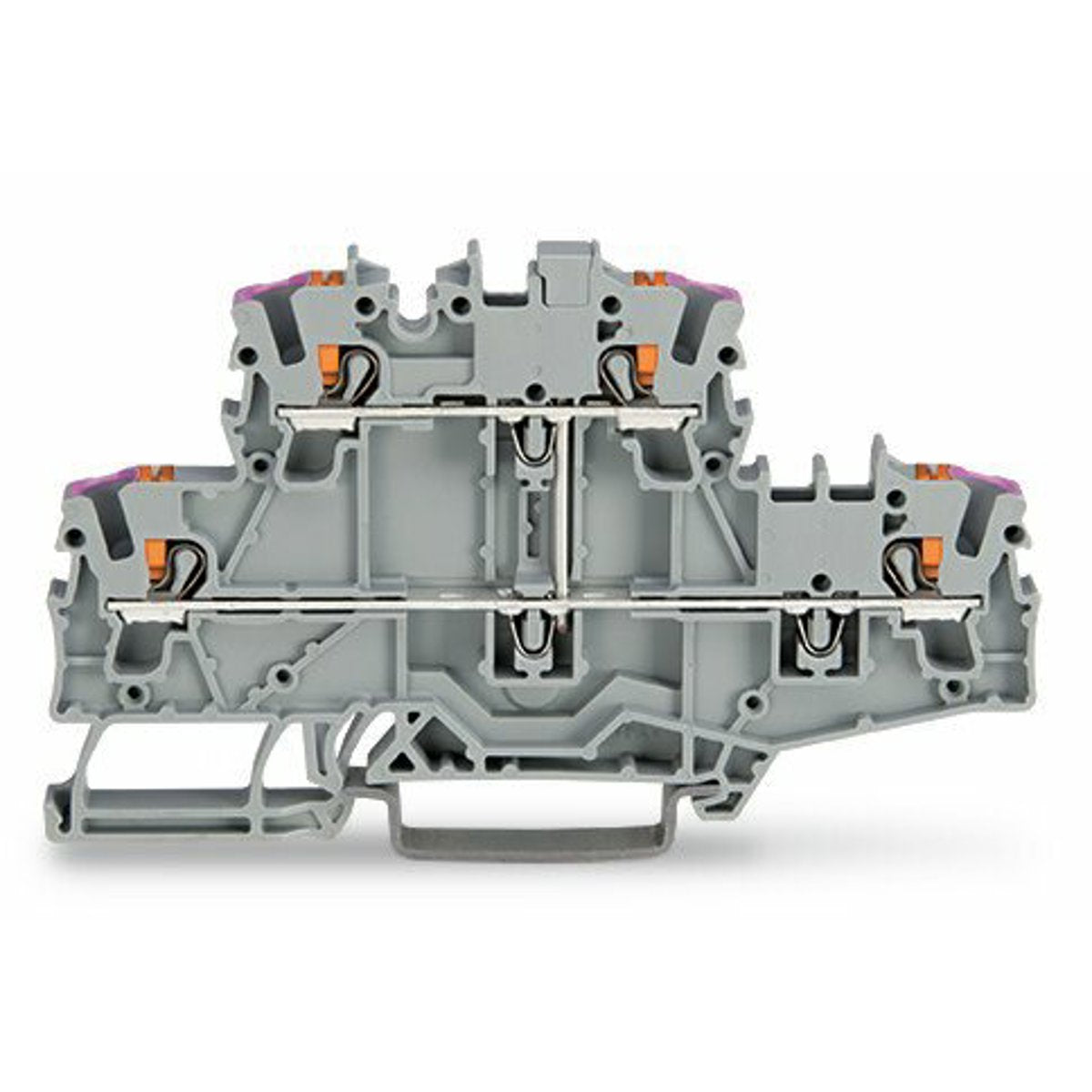

The WAGO 2202-2708 Terminal Block is designed for streamlined wiring and robust connections. This gray, double-deck terminal block features a push-in actuator and is suitable for Ex e II applications.

• Push-In Cage Clamp for secure and maintenance-free connections.
• Dual-deck design with internal commoning saves space and simplifies installation.
• Compliant with DIN-35 rail mounting for easy integration into existing systems.

Product Highlights

The terminal supports 12-22 AWG conductor ranges and can handle a current up to 24A. Its compact dimensions (3.642 inches in height and 0.205 inches in width) make it ideal for tight spaces.

Product Information

Standard Information

• Color: Gray
• Material: Polyamide (PA66)

Technical Specifications

• Connection Type: Push-in terminals (Cage-clamp)
• Current Rating: 24 A
• Voltage Rating: 800 V
• Mounting Type: DIN Rail
• RoHS Compliance: Yes
• Dimensions: Height: 92.5 mm, Width: 5.2 mm, Depth: 51.7 mm
