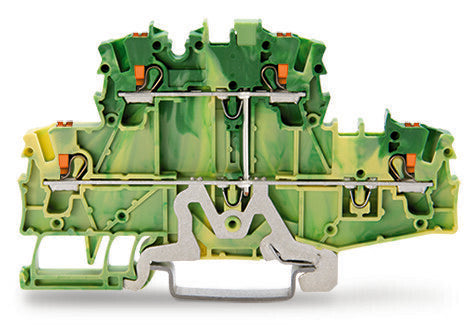

WAGO 2202-2707 Ground/Earthing Terminal Block Double-Deck with Internal Commoning Suitable for Ex e II Applications Green-Yellow

Product Description

The WAGO 2202-2707 is a robust double-deck ground/earthing terminal block designed for efficient wiring and secure connections in demanding environments. Optimized for Ex e II applications, this terminal block is equipped with innovative push-in CAGE CLAMP spring connections that simplify installation and maintenance.

• Green-yellow color coding for easy identification of protective earth connections.
• Push-button actuator allows convenient operation and fast wiring adjustments.
• Compact design with dimensions of height 3.642 inches, width 2.5 mm, depth 51.7 mm that fits snugly on DIN-35 rail mountings.

Product Highlights

Constructed from high-quality polyamide (PA66) and copper conductors, the WAGO 2202-2707 terminal block ensures durability and superb conductivity. Its compliance with RoHS standards underscores a commitment to environmental responsibility.

Product Information

Standard Information

• Country of Origin: Germany
• RoHS Compliant: Yes

Technical Specifications

• Mounting Type: Din Rail
• Connection Type: Terminals (Cage-clamp)
• Conductor Material: Copper
• Color: Green-Yellow
• Dimensions: H92.5mm x W5.2mm x D51.7mm
• Nominal Cross Section: 2.5 mminchu00b2
• Conductor Range: 12-22 AWG
