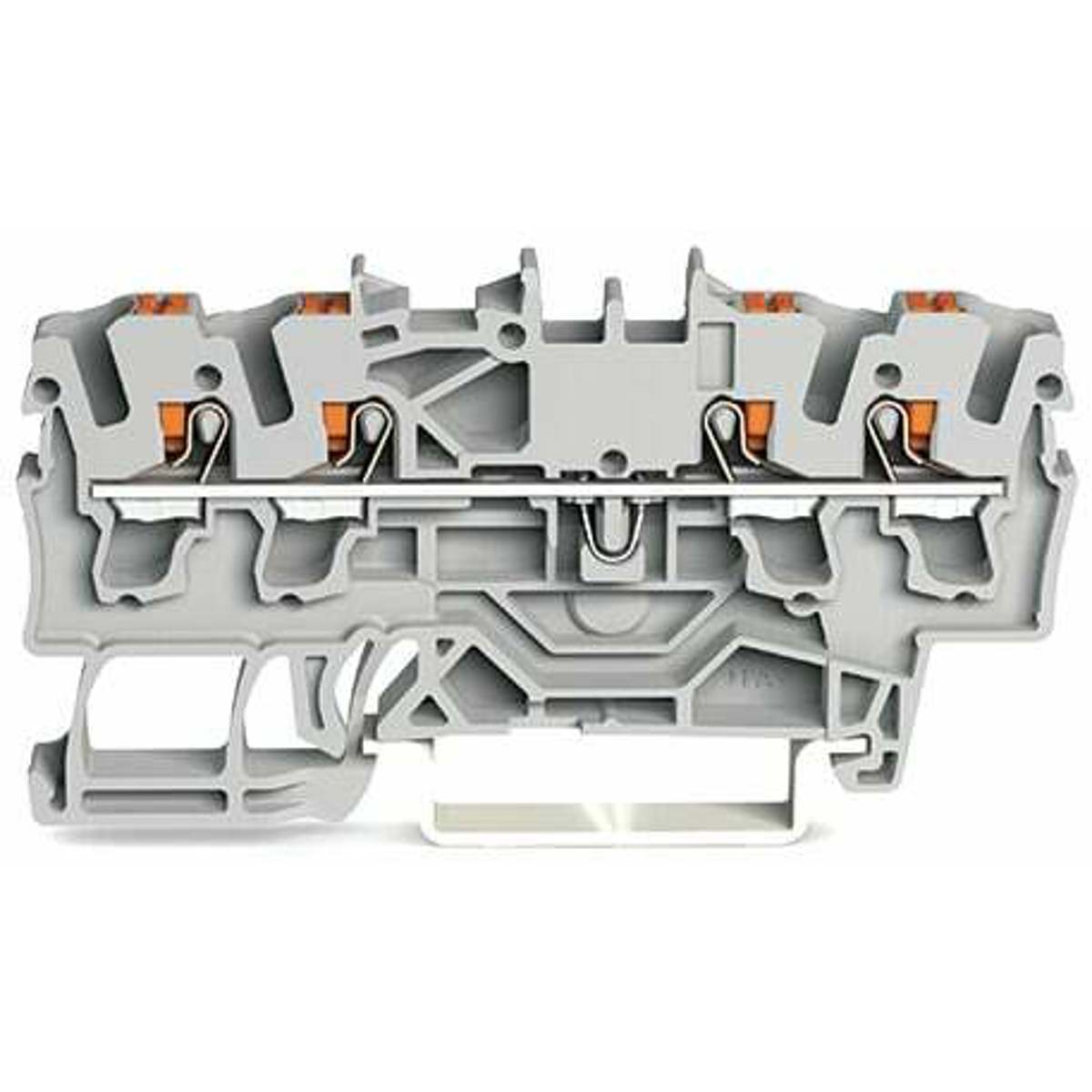

WAGO 2202-1401 Terminal Block Ideal for Power Distribution and Protection Applications

Product Description

The WAGO 2202-1401 Feed-through Terminal Block is designed for efficient wire connection in power distribution systems. Each unit is engineered with a single feed-through pole that supports up to four wires using push-in cage-clamp technology.

• Push-in CAGE CLAMP for secure and maintenance-free connections.
• Suitable for explosive environments (Ex e II certified).
• Compact size with dimensions: Height 2.752 inches, Width 0.205 inches, Depth 1.296 inches.

Product Highlights

This terminal block is manufactured in Germany, ensuring high-quality standards and reliability for industrial applications. The compact design and gray polyamide housing make it a discreet yet robust addition to any electrical installation setup.

Product Information

Standard Information

• Branches Available: 4948 units in stock.
• Material: Polyamide (PA66) construction.

Technical Specifications

• Connection Type: Terminals (Cage-clamp).
• Current Rating: 24 A.
• Conductor Range: 12-22 AWG.
• Nominal Cross Section: 2.5 mm².
• Voltage Rating:
